Crane operation
10.7 Working range limiter
Operating Instructions GMK5250L 3 302 633 en 10 - 139
27.09.2017

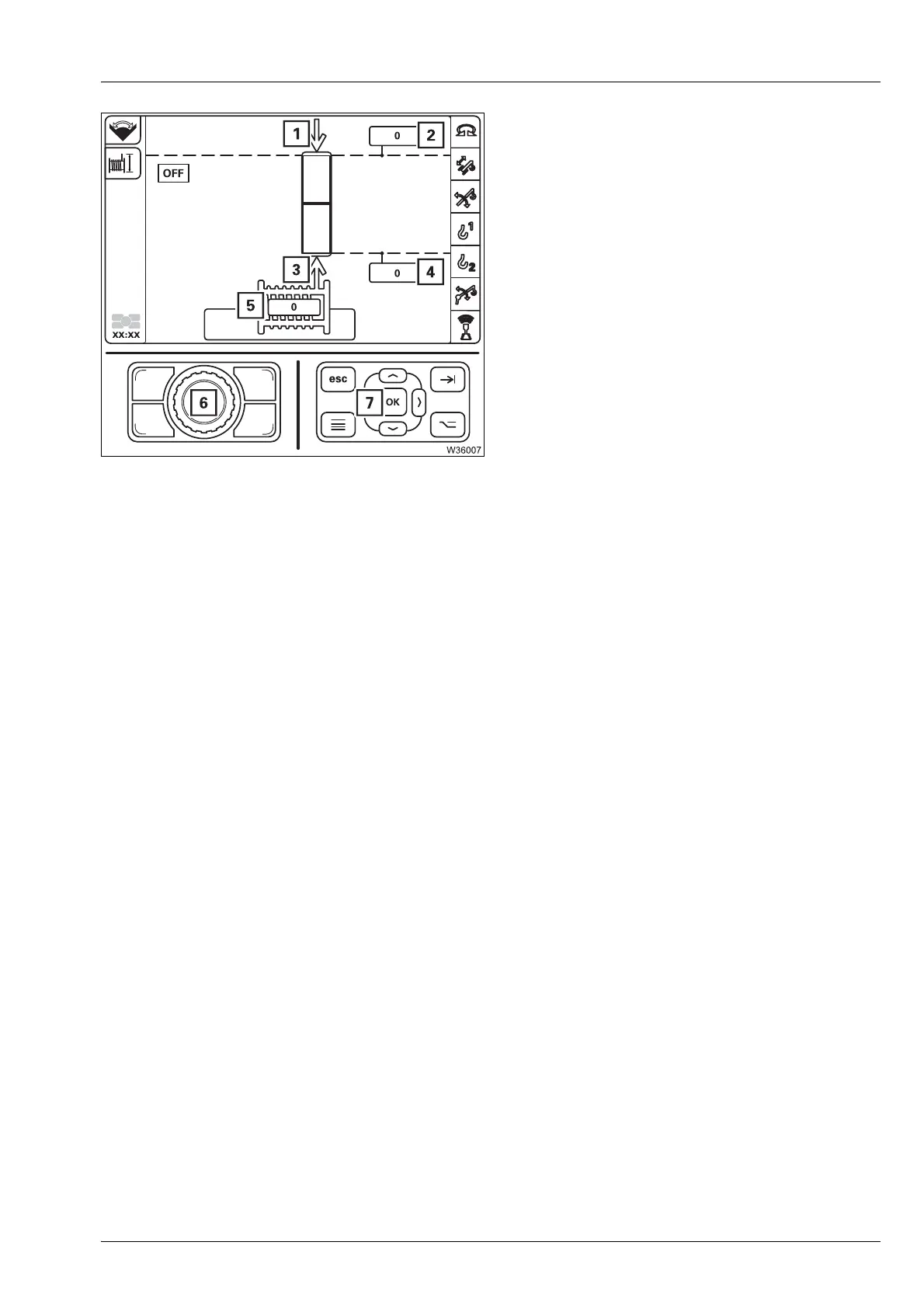

Limiting lifting
• Lift the load to the necessary height. Select
the symbol (1).
• Press the button (6) or (7) once.
The current numerical value (5) is set at
the symbol (2) as the upper limit value,
symbol (1) confirms the entry.
Limiting lowering
• Lower the load to the necessary height.
Select the symbol (4).
• Press the button (6) or (7) once.
The current numerical value (5) is set at
the symbol (4) as the lower limit value,
symbol (3) confirms the entry.
Switch on monitoring;
à p. 10 - 142
