Rigging work
11.8 Outrigger operation
Operating Instructions GMK5250L 3 302 633 en 11 - 61
27.09.2017
Automatic
alignment

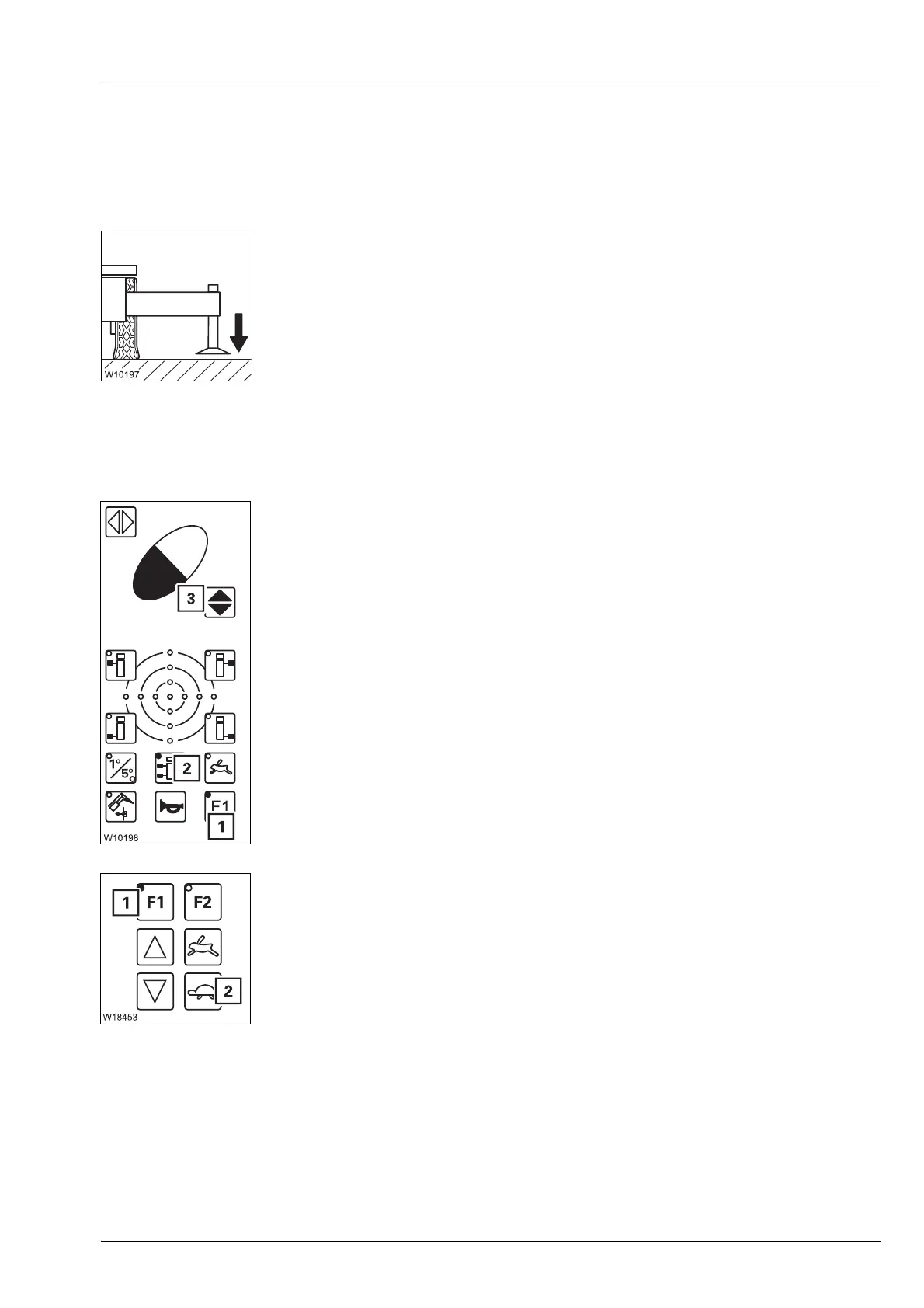

During the automatic alignment procedure, the supporting cylinders
are extended only to prevent any wheels touching the ground after the
alignment.
• Check that the prerequisites are met; à p. 11 - 59.
• Extend the supporting cylinders until the outrigger pads are just above
the ground.
Starting procedure
Depending on the truck crane's equipment, you can start the procedure
from the hand-held control and the
Outrigger control units.
– On the hand-held control
• Press the button (1) once.
• Press the button (2) once.
The lights in the buttons go on.
• Press the button combination (3) for automatic alignment.
The procedure begins.
– On the control units
• Press the button (1).
• Additionally, press the button (2).
The procedure begins.
