Rigging work
11.8 Outrigger operation
11 - 62 3 302 633 en Operating Instructions GMK5250L
27.09.2017

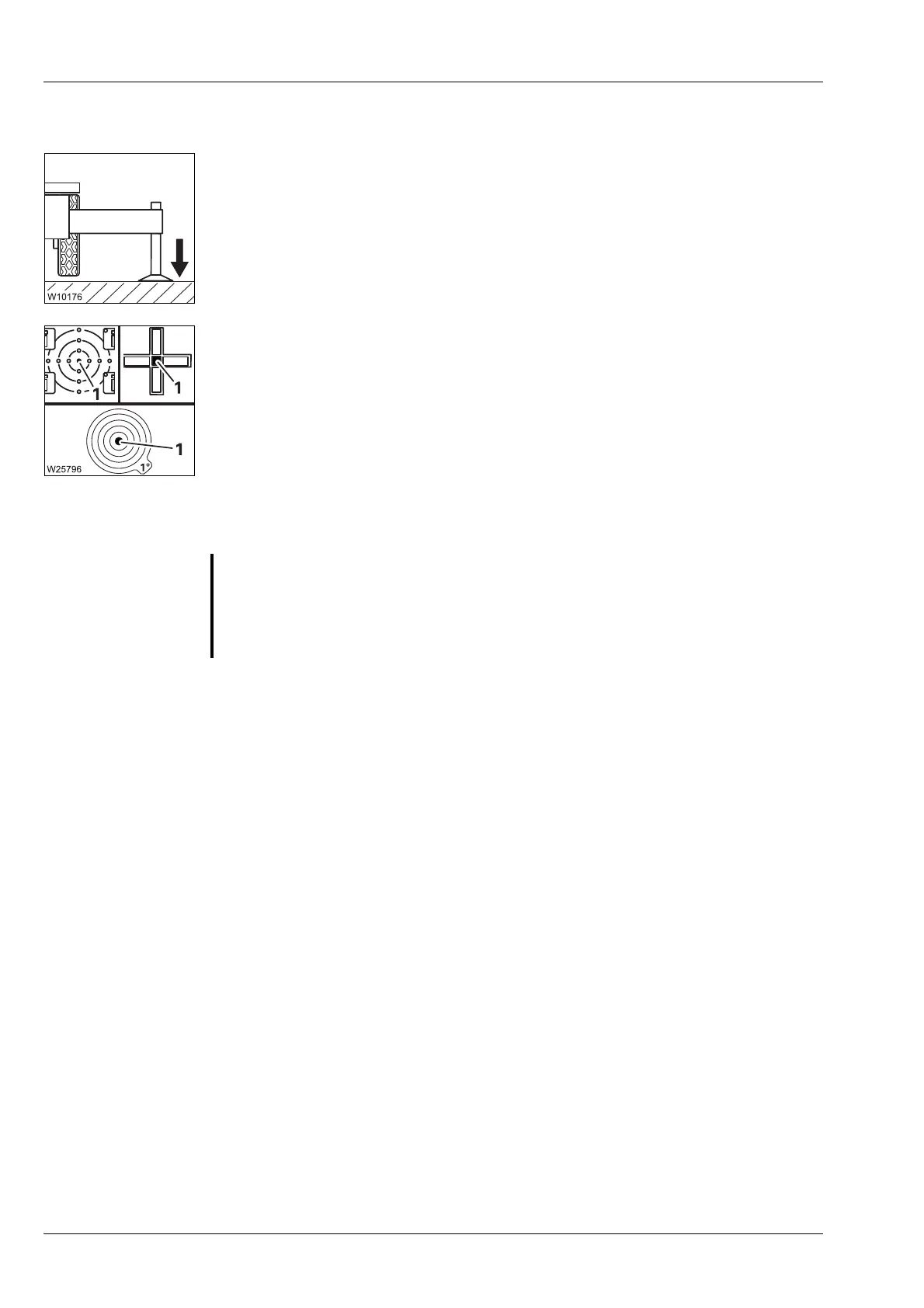

Automatic procedure
1. All the supporting cylinders are extended one after the other until the
outrigger pads touch the ground.
2. All the supporting cylinders are extended simultaneously so that none
of the wheels is touching the ground any more.
3. The truck crane is automatically levelled horizontally.
This procedure is performed:
– until horizontal alignment is reached, the lamp (1) in the centre is the
only one lighting up in measuring range 1° or
– until you let go of a button or
– until horizontal alignment is no longer possible,
e.g. when a supporting cylinder is extended as far as possible.
G
Danger of overturning if the truck crane is not level!
When CCS ends the automatic alignment procedure, the truck crane is not
necessarily level.
Always check the horizontal alignment on the inclination indicator after
automatic levelling.
