Operating elements for crane operation
8.1 Overview of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 21
27.09.2017

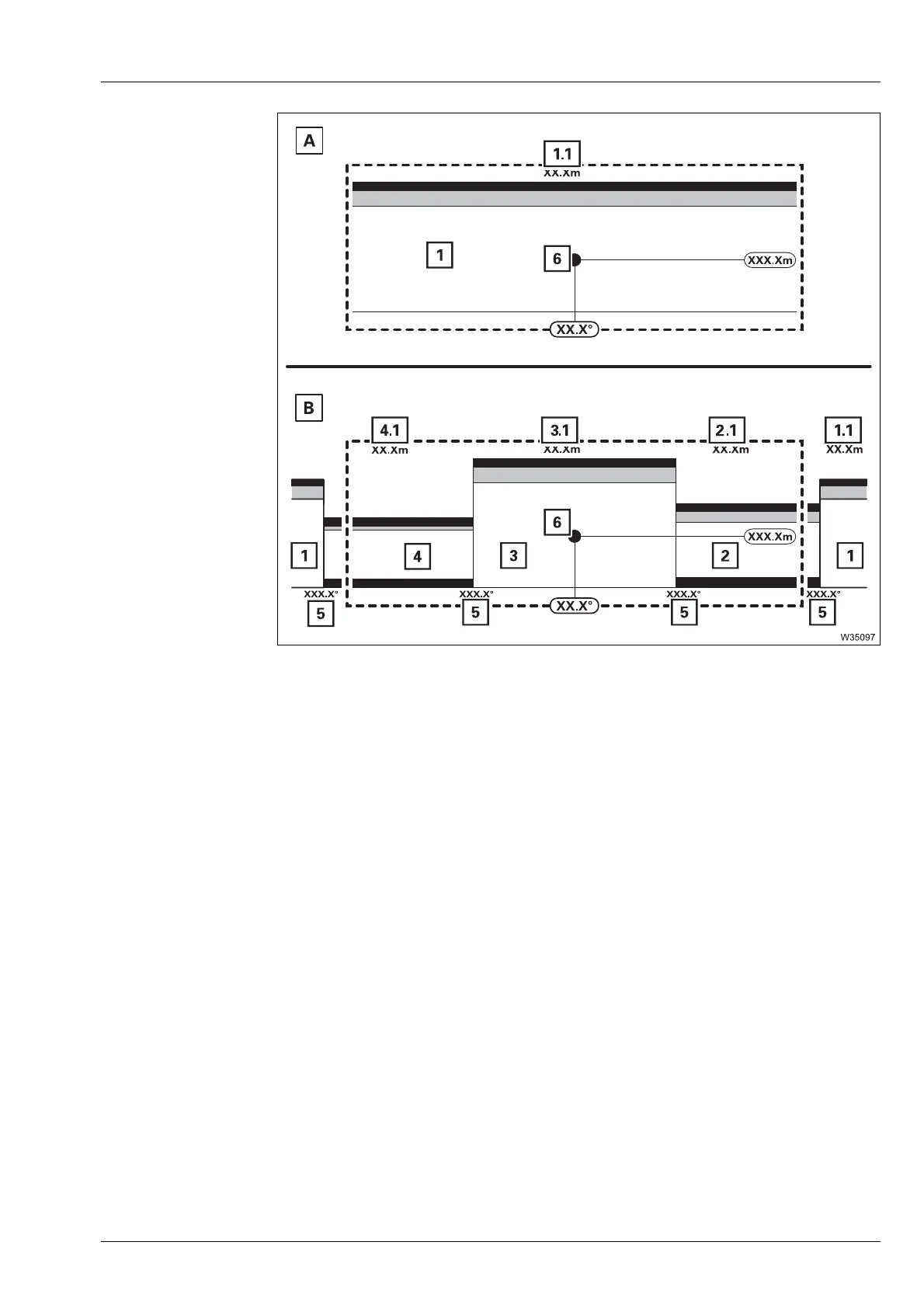

Slewing ranges/
working radii
display
A For the Standard slewing range type
B For the MAXbase slewing range type
Display of current slewing range divisions à p. 8 - 127
1 Slewing range 1
à p. 8 - 127
2 Slewing range 2
à p. 8 - 127
3 Slewing range 3
à p. 8 - 127
4 Slewing range 4
à p. 8 - 127
5 Display of current slewing range limits
à p. 8 - 127
6 Current position display
à p. 8 - 128
Maximum permissible working radius display
à p. 8 - 128
1.1 In slewing range 1
à p. 8 - 128
2.1 In slewing range 2
à p. 8 - 128
3.1 In slewing range 3
à p. 8 - 128
4.1 In slewing range 4
à p. 8 - 128
