Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 129
27.09.2017

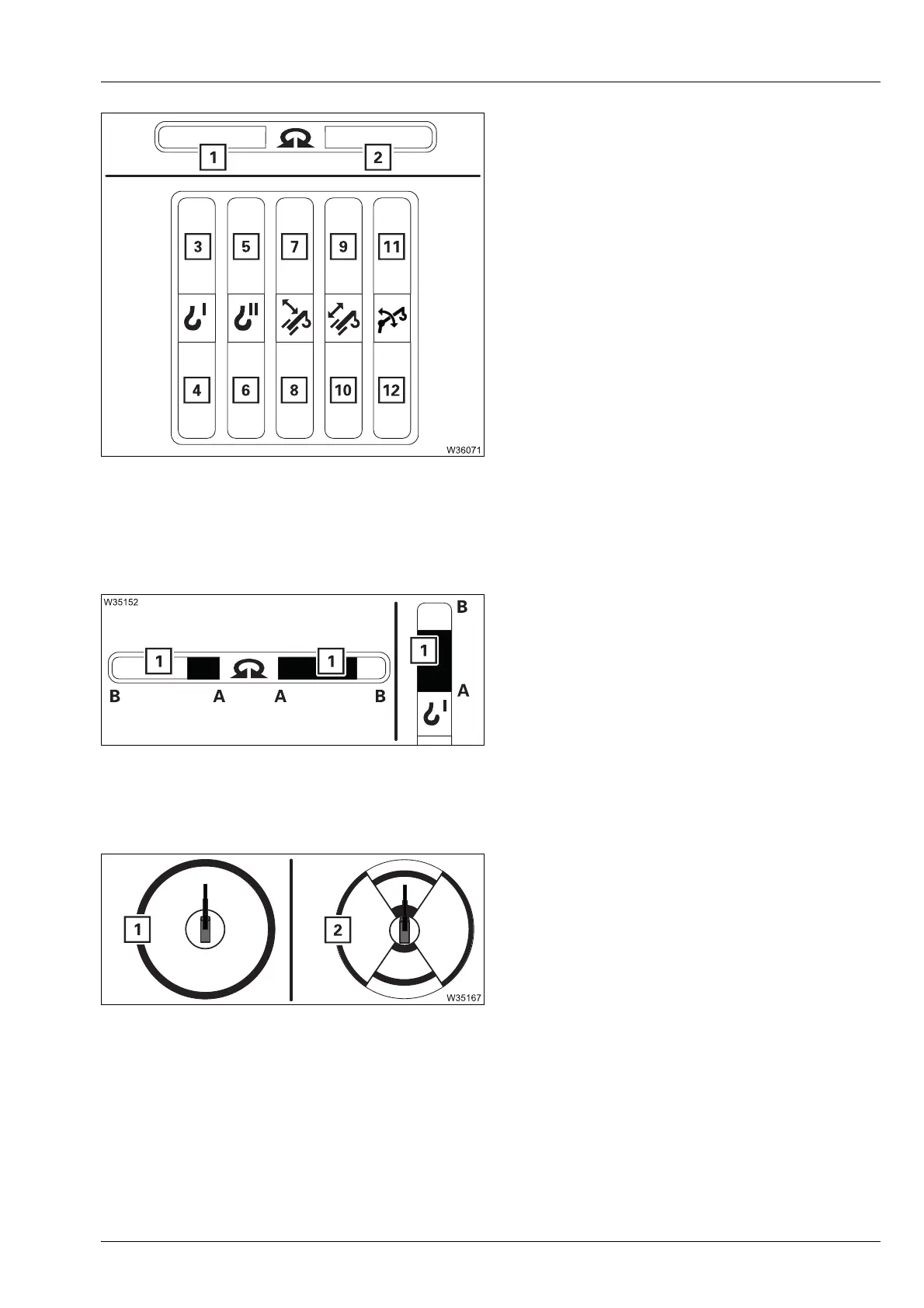

Maximum permissible speed display
Separate displays are provided for each direc-
tion of movement.
A bar (1) shows the maximum permissible
speed – scale from 0% (A) to 100% (B).
The colour of the bar (1) changes.
à On the CCS display, p. 10 - 53
Slewing ranges display
The function is identical to the display in the
Lifting capacity table menu.
s
1 Slew to the left
2 Slew to the right
3 Lower the main hoist
4 Lift the main hoist
5 Lower the auxiliary hoist
6 Lifting the auxiliary hoist
7 Lower
8 Raising
9 Extending
10 Retracting
11 Lower the lattice extension
12 Raise the lattice extension
Red: 0% to 10%
Yellow: 11% to 25%
Green: 26% to 100%
1 For the Standard slewing range type;
à p. 10 - 60
2 For the
MAXbase slewing range type;
à p. 10 - 61
