Operating elements for crane operation
8.1 Overview of the operating elements
8 - 78 3 302 633 en Operating Instructions GMK5250L
27.09.2017

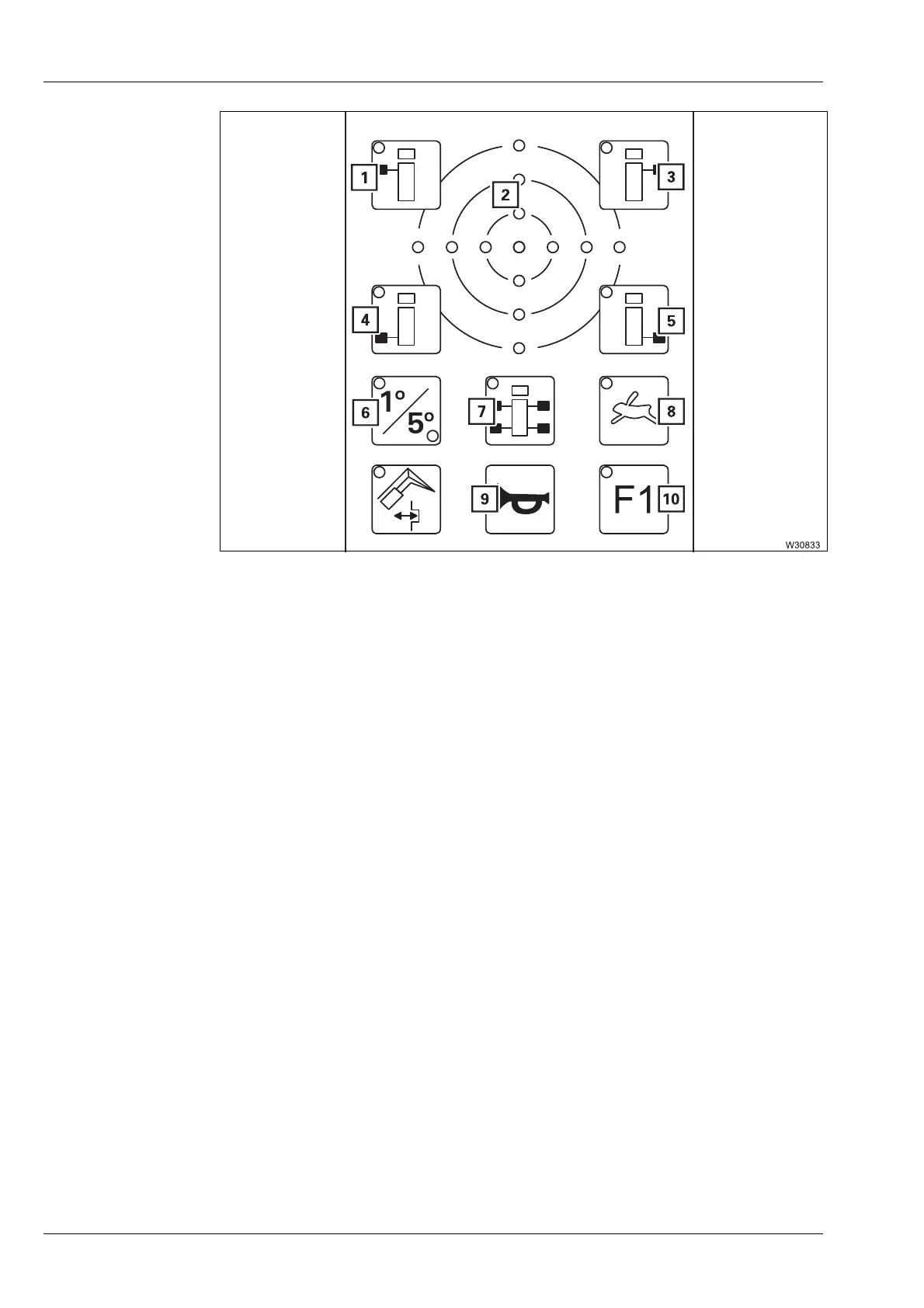

Outriggers con-
trol panel
1 Front left outrigger
à p. 8 - 94
2 Current inclination display
à p. 8 - 103
3 Front right outrigger
à p. 8 - 94
4 Rear left outrigger
à p. 8 - 94
5 Rear right outrigger
à p. 8 - 94
6 Switch over measuring range
à p. 8 - 103
7 – Pre-select all supporting cylinders
– Pre-select automatic alignment
– (as additional function F1)
à p. 8 - 94
à p. 8 - 94
8 Pre-select high-speed/normal speed mode
à p. 8 - 95
9 Horn
à p. 8 - 144
10 Additional function F1 on
à p. 8 - 94
