Operating elements for driving
3.2 Brief description of the operating elements
3 - 66 3 302 633 en Operating Instructions GMK5250L
27.09.2017

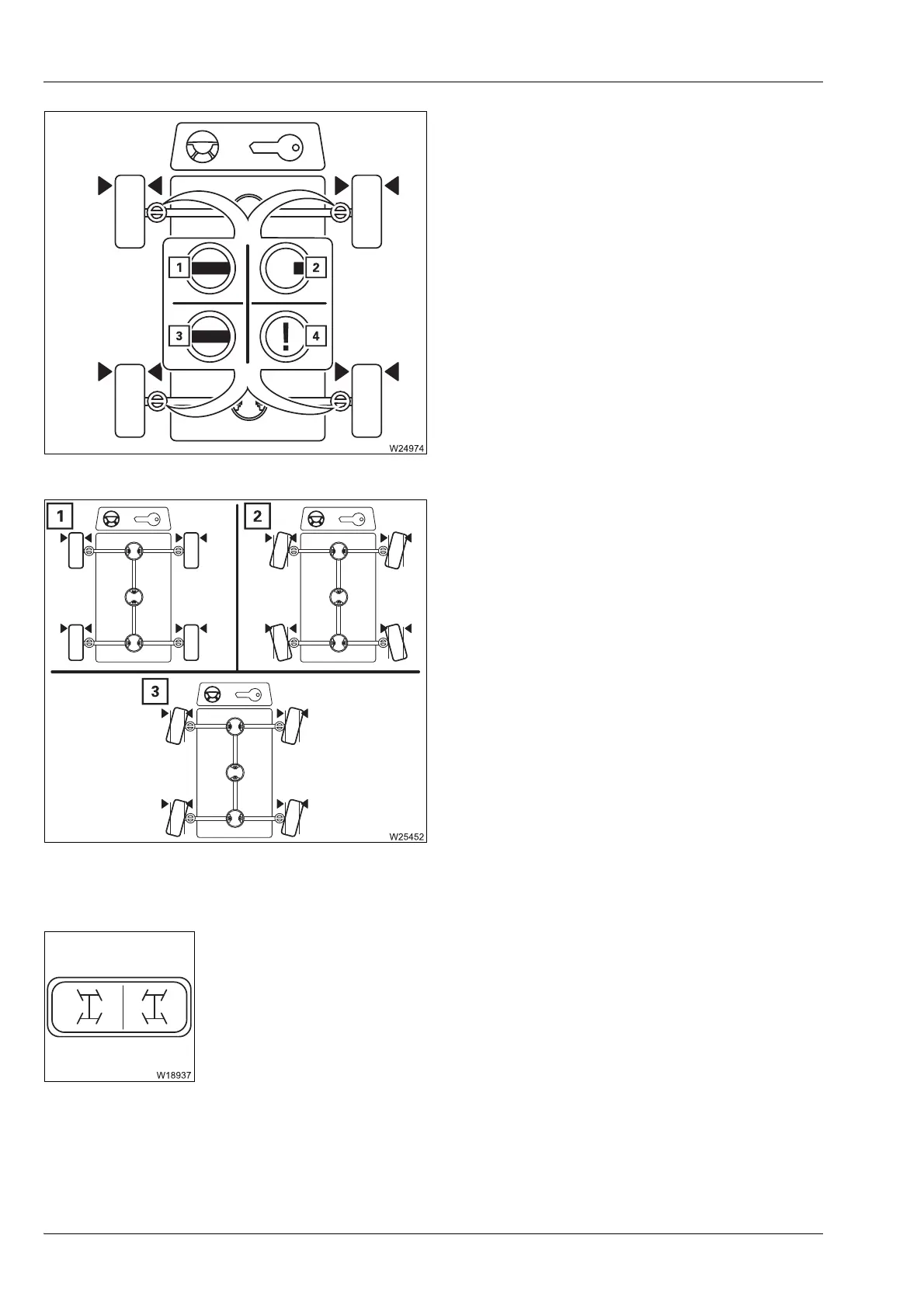

Steering locking status display
The current status is shown using different
symbols:
Current wheel position display
The current status is shown using different
symbols:
Driver's door Separate steering
The separate steering is switched on.
Press button and hold
1 green – locked
2red – unlocked
3 yellow – intermediate position
4 Error
1 Straight ahead
2 Driving on a curved path
3 Crab travel mode
– To the left: 4th and 5th axle line – turn to the left
– To the right: 4th and 5th axle line – turn to the right
à p. 5 - 60
