Driving modes and rigging for on-road driving
6.5 Installing/removing the outrigger beams
Operating Instructions GMK5250L 3 302 633 en 6 - 37
27.09.2017

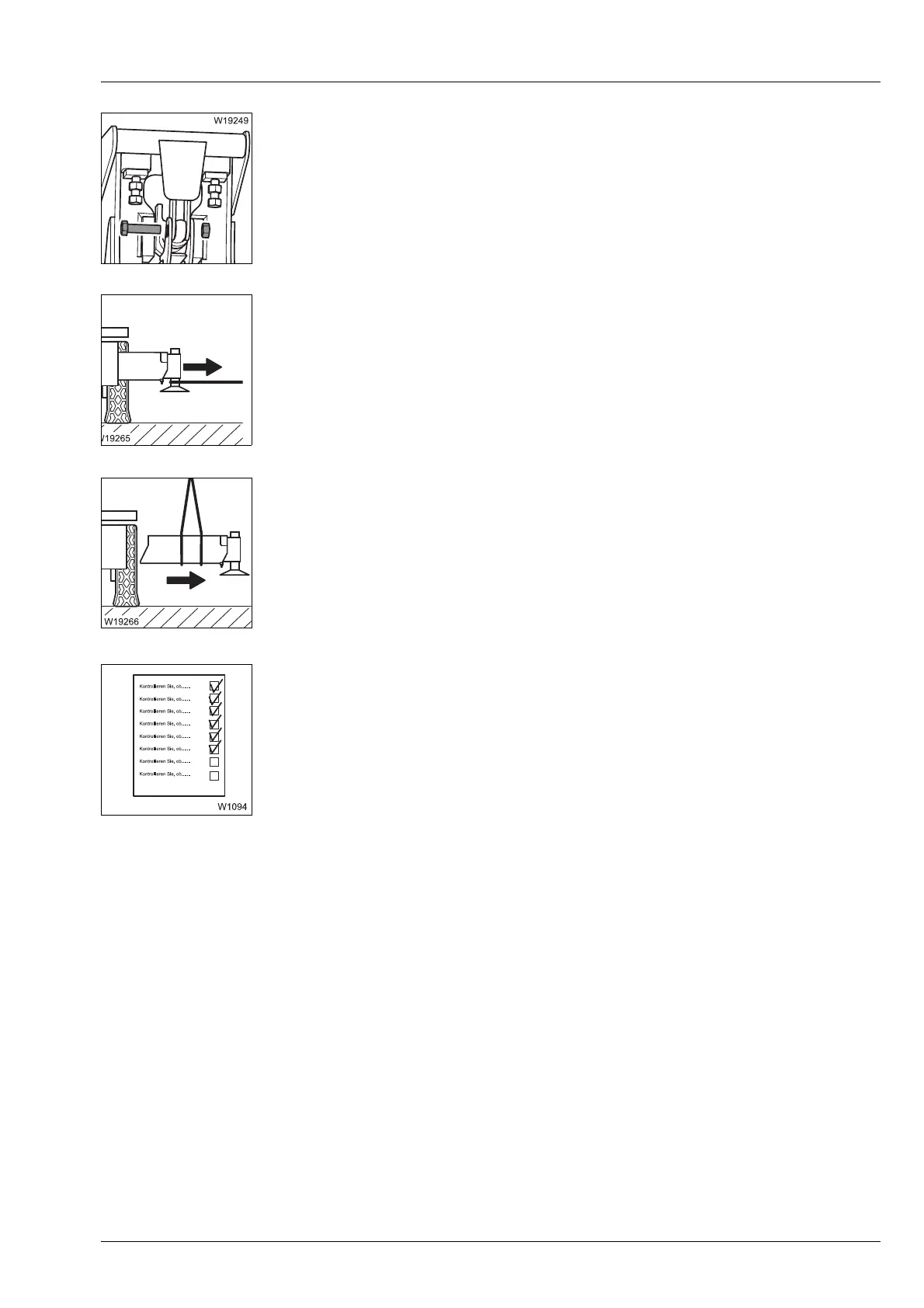

6. Release the connection to the support box; Ã p. 6 - 49.
7. Sling the outrigger beam and pull it out of the outrigger box until it
reaches the centre of gravity;
à p. 6 - 49.
8. – Sling the outrigger beams in the centre of gravity and pull them out
of the outrigger box.
– Lift the outrigger beams onto the separate vehicle.
– Attach the connecting elements on the outrigger box.
à Extending outrigger beam, p. 6 - 49
à Transporting the outrigger beams, p. 6 - 53
9. Remove all necessary outrigger beams in the same way in accordance
with this checklist.
