Operating elements for driving
3.2 Brief description of the operating elements
3 - 54 3 302 633 en Operating Instructions GMK5250L
27.09.2017

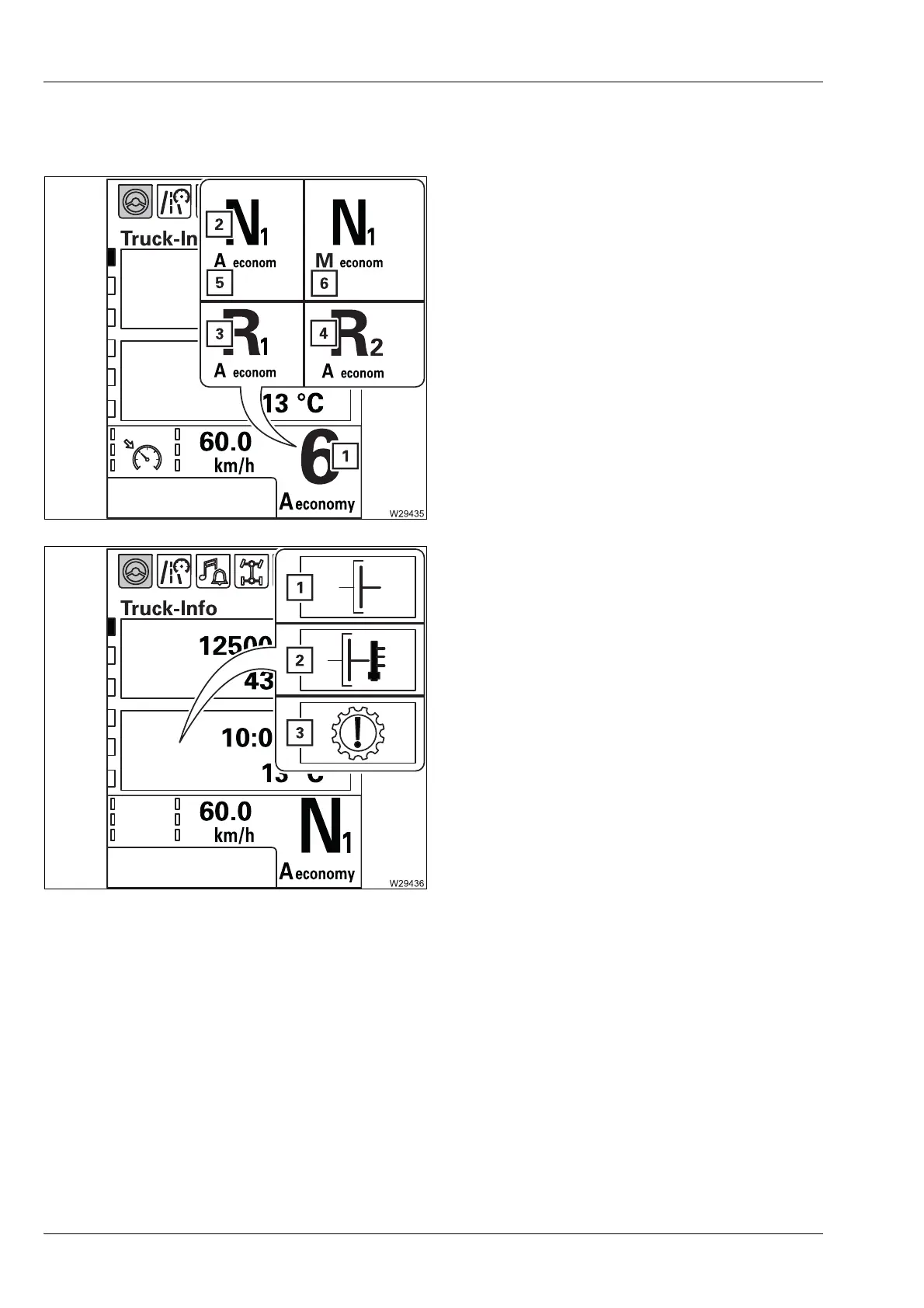

Driving mode
display
Transmission display
Error messages display
1 Currently engaged gear – forwards
(1 to 16), e.g. 6
2 Neutral position switched on
3 Gear currently engaged – 1st reverse gear
4 Gear currently engaged – 2nd reverse
gear
5
Automatic operating mode
6
Manual operating mode
1 Clutch heavily loaded
2 Clutch malfunction
3 Gear shift malfunction
