Operating elements for driving
3.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 3 - 69
27.09.2017

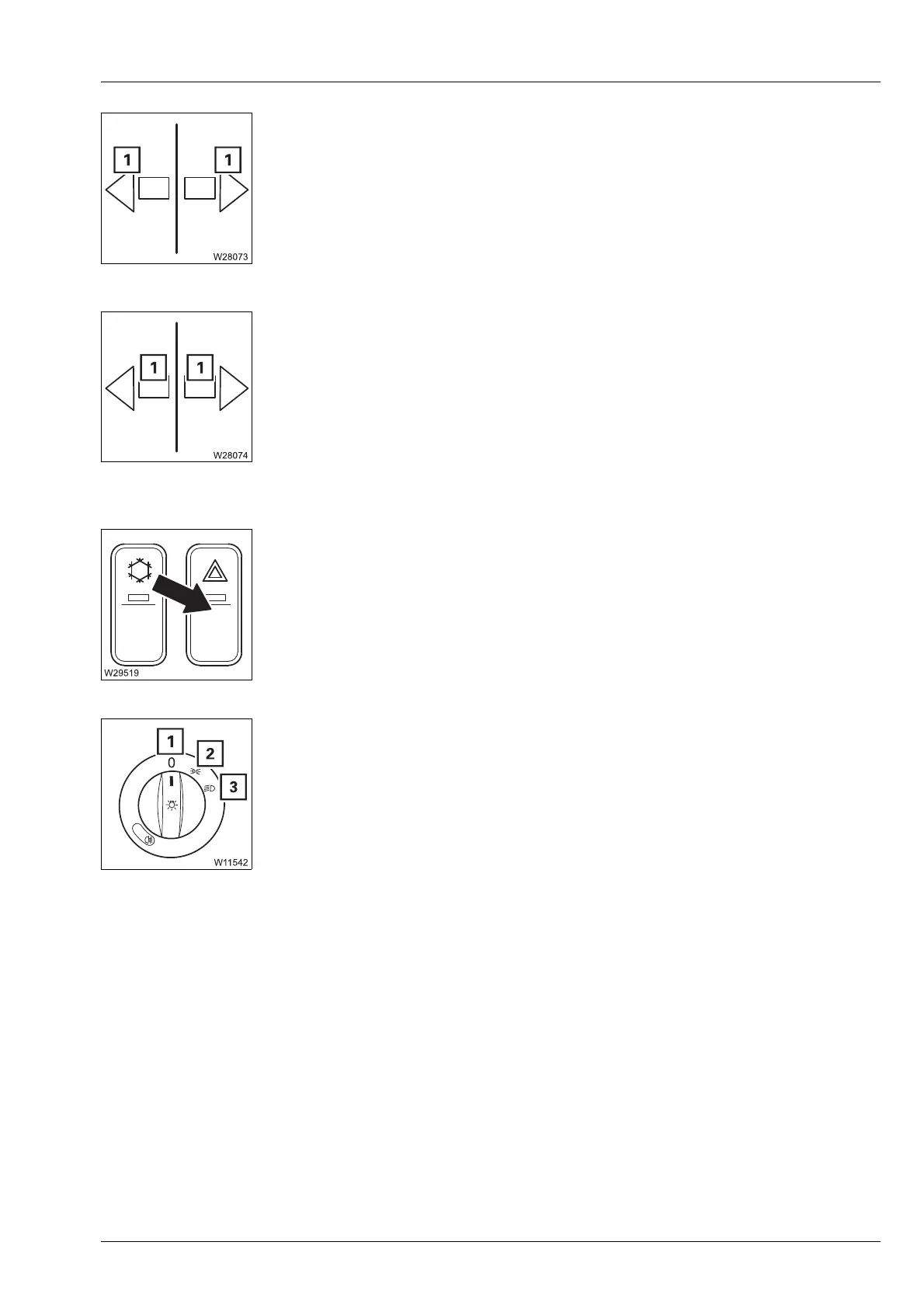

Indicator lamp for turn signal indicator
Indicator lamp for trailer turn signal indicator
Hazard warning system on/off
Lighting on/off
s
1 – Flashing: Turn signal indicator on
– Off: Turn signal indicator off, or turn signal indicator on
and filament lamp faulty
1 – Flashing: Turn signal indicator on and trailer electrically
connected
–Flashes
once:
Turn signal indicator on and trailer not electrically
connected
– Off: Turn signal indicator off
– To switch on: Press downwards – light in the switch flashes
– To switch off: Press in above – gone out
1 Light off
2 Parking light
on
Instrument lighting on
3 Headlight on Full beam can be switched on using the multipurpose
switch, daytime driving light off
