Driving
5.6 Heating and air-conditioning system
5 - 64 3 302 633 en Operating Instructions GMK5250L
27.09.2017

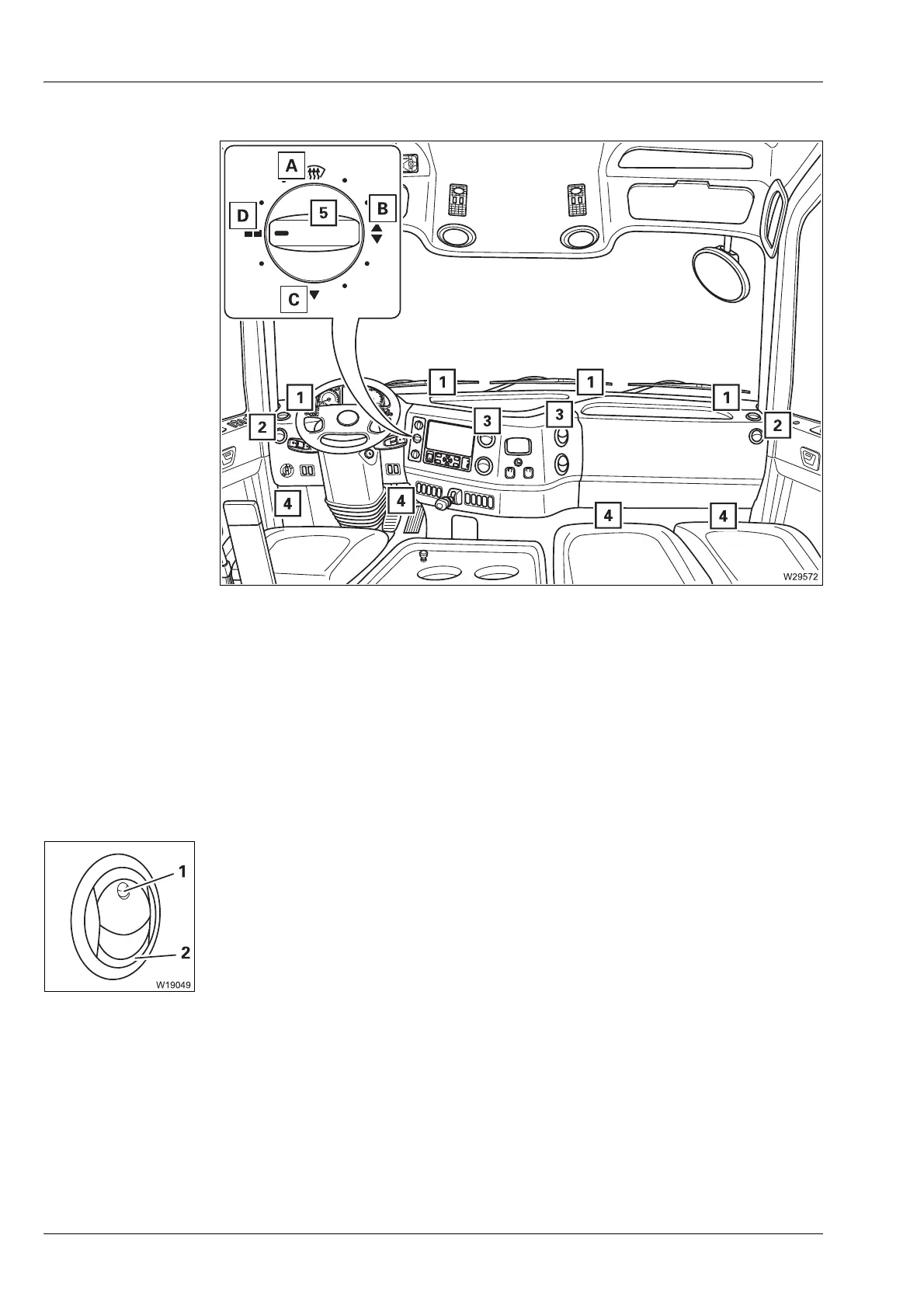

Air distribution You can direct the air to flow out of various air vents.
• Turn the switch (5) to the position for the required air vents.
You can adjust air vents (2) and (3).
Adjusting the air vents
A Air vents (1), (2) – front windscreen, side
B Air vents (1) to (4)
C Air vents (2), (3), (4) – side, centre, below
D Air vents (2), (3) – side, centre
1 – To open: Press in and position lengthwise
– To close: Position crosswise
– To direct the air flow: In intermediate position
2 – To direct the air flow: Slewing
