Driving modes and rigging for on-road driving
6.5 Installing/removing the outrigger beams
6 - 50 3 302 633 en Operating Instructions GMK5250L
27.09.2017

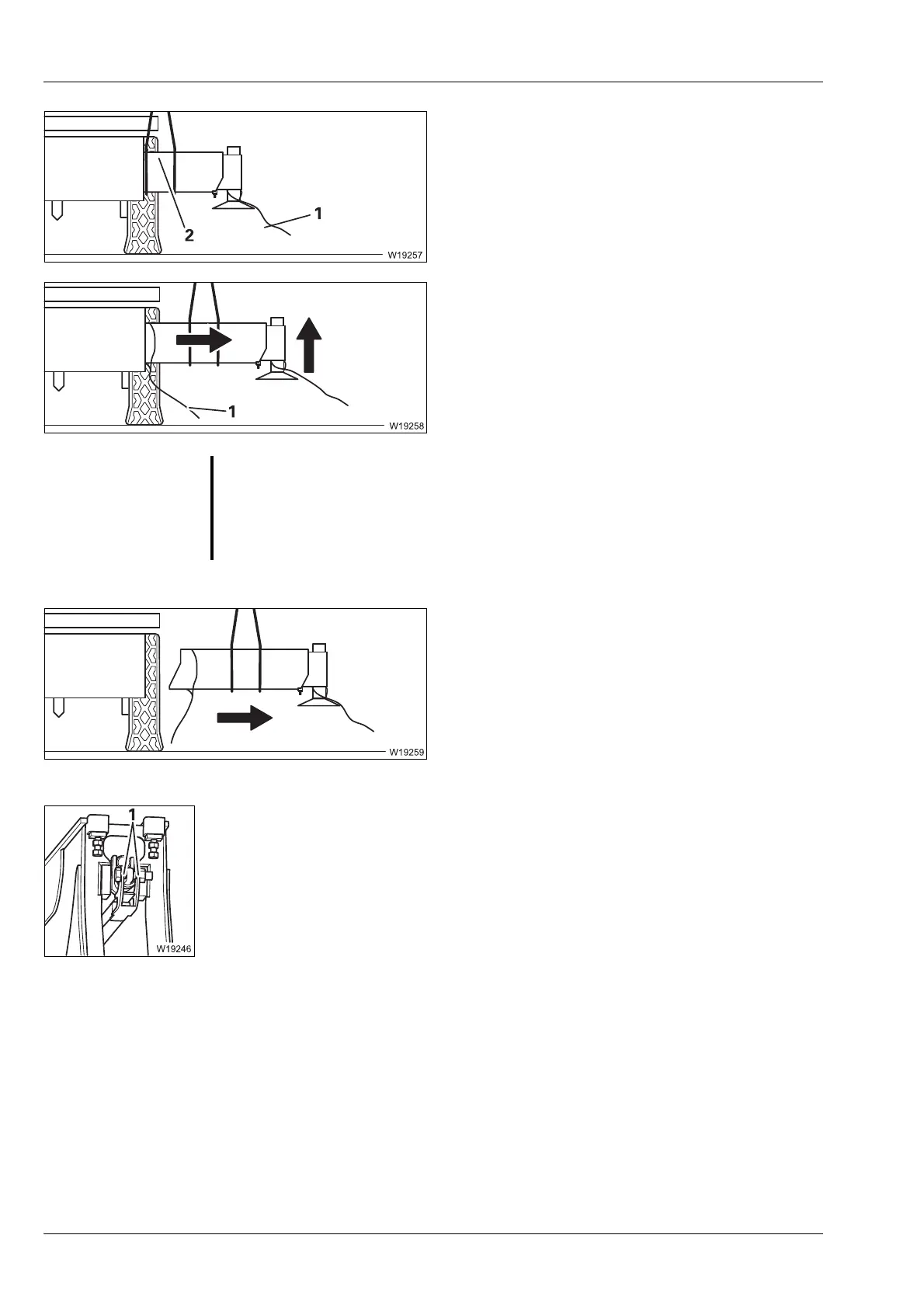

• Using the auxiliary crane, sling the outrigger
beam in the centre of gravity (2).
• Remove the chain hoist and lifting gear.
Fasten a guide rope (1).
• Lift the outrigger beam slightly to ease the
load.
• Lift the outrigger beam almost completely
out of the outrigger box.
• Fasten another guide rope (1).
• Lift the outrigger beam out of the outrigger
box.
• Lift the outrigger beam onto a separate
vehicle;
à p. 6 - 53.
• Fasten the connecting elements to the connecting points (1) of the
supports.
G
Risk of being crushed by the swinging outrigger beam!
Secure the outrigger beam with the guide ropes as it is lifted out of the
outrigger box.
Keep a suitable distance to avoid injuring yourself or others on the swing-
ing outrigger beam.
