Driving modes and rigging for on-road driving
6.6 Rigging the auxiliary hoist
6 - 70 3 302 633 en Operating Instructions GMK5250L
27.09.2017

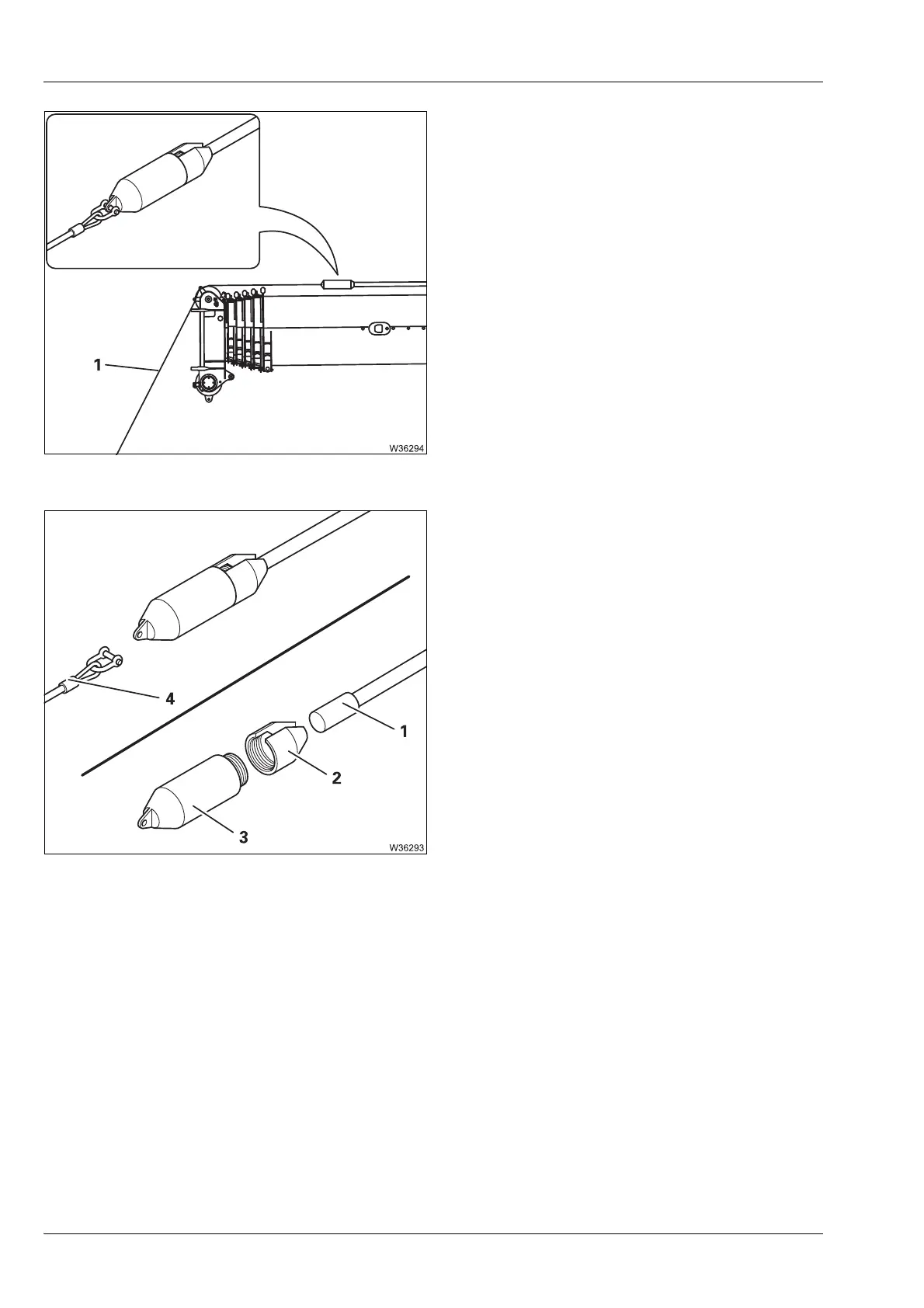

Rigging the hoist rope
The rigging aid is connected to the hoist rope.
– When rigging
• Guide the rope (1) over the main boom
and over the upper head sheave.
• Slowly unreel the hoist rope.
• Use the rope (1) to keep the hoist rope
tensioned so that no slack rope occurs.
– When unrigging
• Slowly reel in the hoist rope.
• Use the rope (1) to keep the hoist rope
tensioned so that no slack rope occurs.
Disconnecting a connection
• Remove the rope (4).
• Disconnect part (2) and (3) of the connector
and remove the hoist rope (1).
• Store the rigging aid so that it is safe for
transport, under the passenger's seat if
possible.
