Operating elements for crane operation
8.1 Overview of the operating elements
8 - 34 3 302 633 en Operating Instructions GMK5250L
27.09.2017

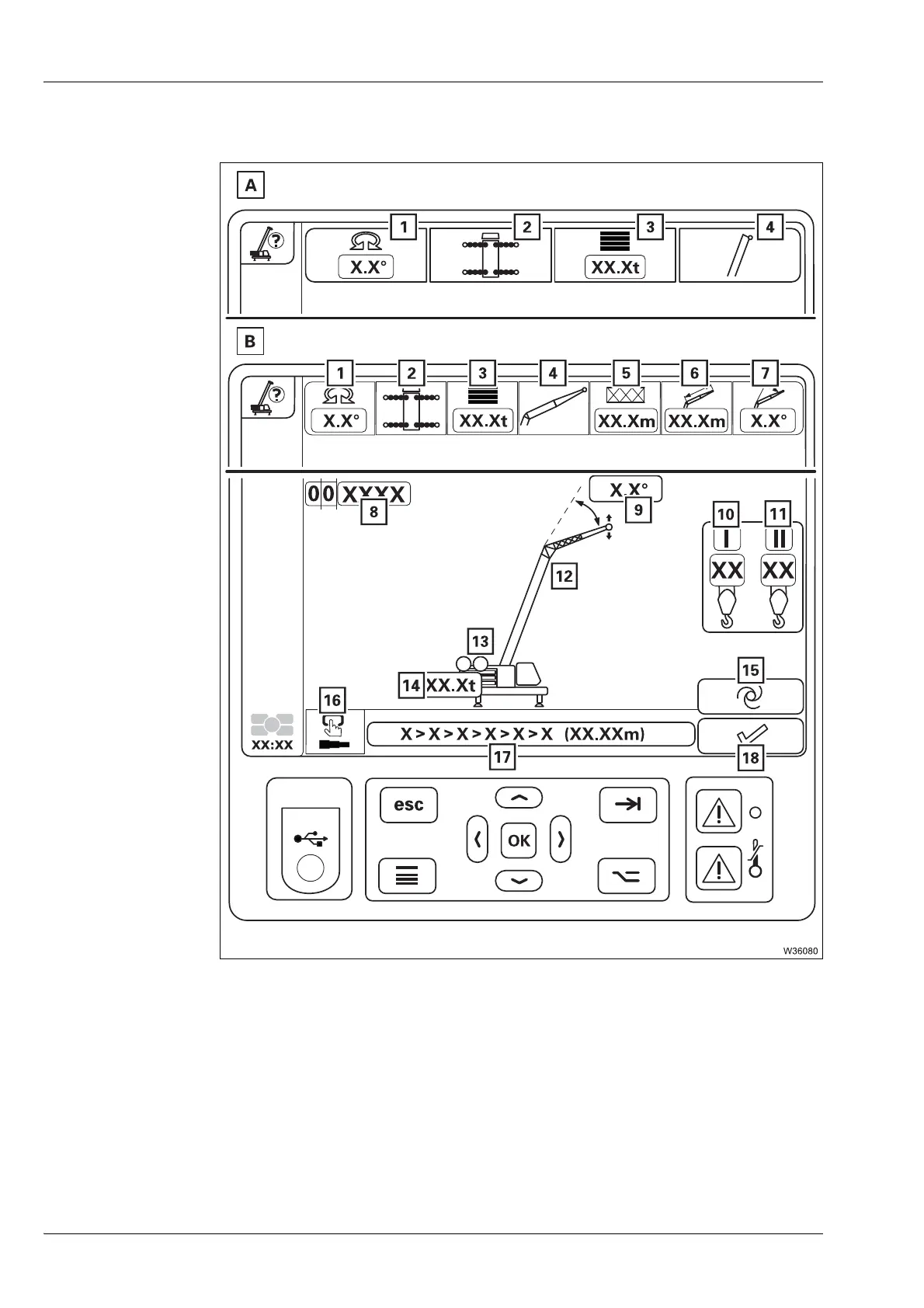

Enter rigging
mode/telescope
status menu
–For the Standard slewing range type
H
Depending on the version, the top view (2) is shown rotated by 180°.
The representation occurs in the same manner as in the RCL
Monitoring
menu;
à p. 8 - 74.
A For boom system main boom
B For boom system lattice extension
