Operating elements for crane operation
8.1 Overview of the operating elements
8 - 40 3 302 633 en Operating Instructions GMK5250L
27.09.2017
Lifting capacity
tables menu
à Displaying the lifting capacity tables, p. 10 - 59
–For the
Standard slewing range type
–For the
MAXbase slewing range type

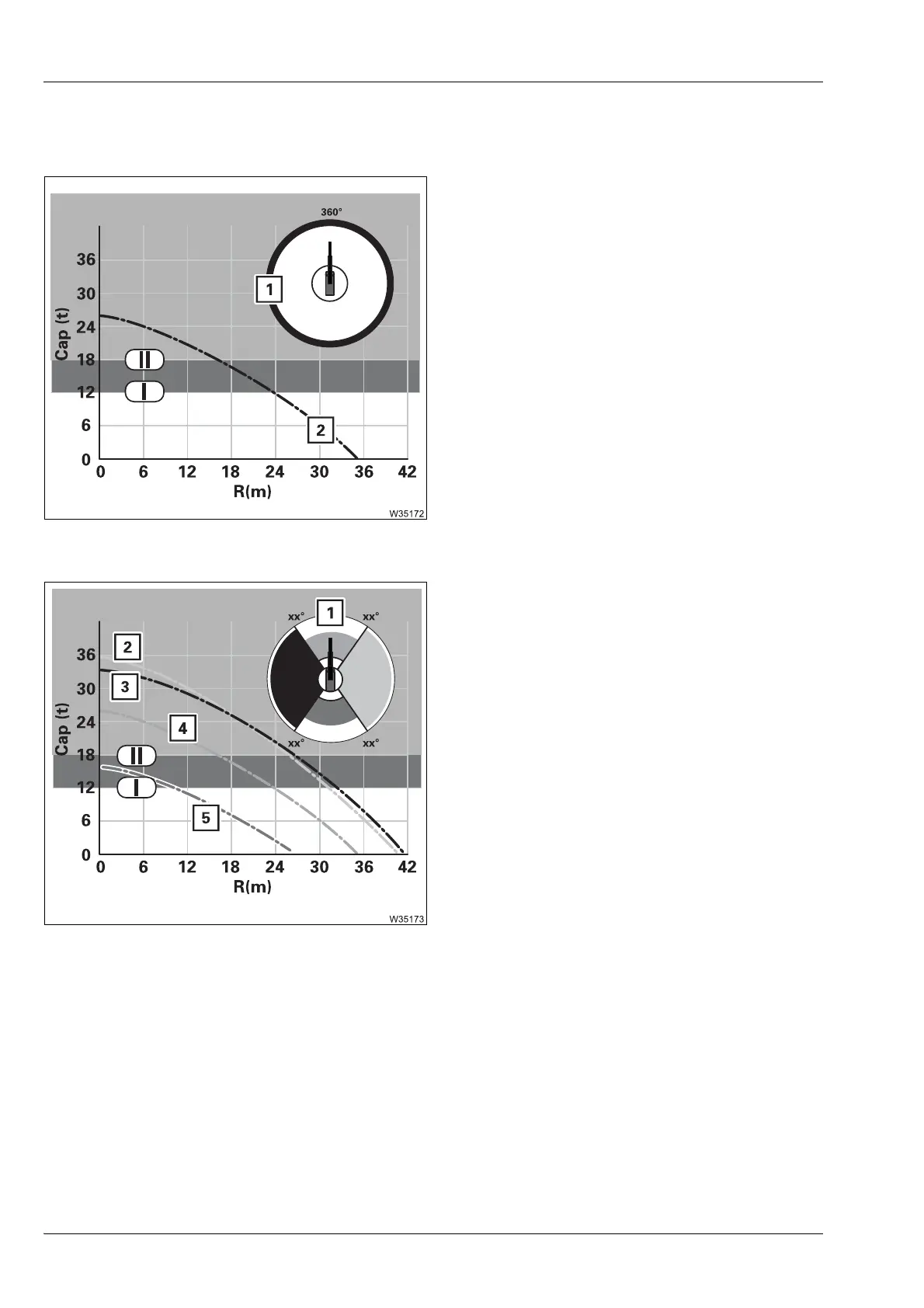

1 Slewing range display
2 Permissible working range display
I Main hoist display
Limitation due to reeving
II Auxiliary hoist display
Limitation due to reeving
à p. 10 - 59
1 Slewing ranges display
– Four slewing ranges, marked in col-
our
2
3
4
5
Permissible working range display
– A coloured curve for each slewing
range
I Main hoist display
Limitation due to reeving
II Auxiliary hoist display
Limitation due to reeving
à p. 10 - 61
