Operating elements for crane operation
8.1 Overview of the operating elements
8 - 64 3 302 633 en Operating Instructions GMK5250L
27.09.2017

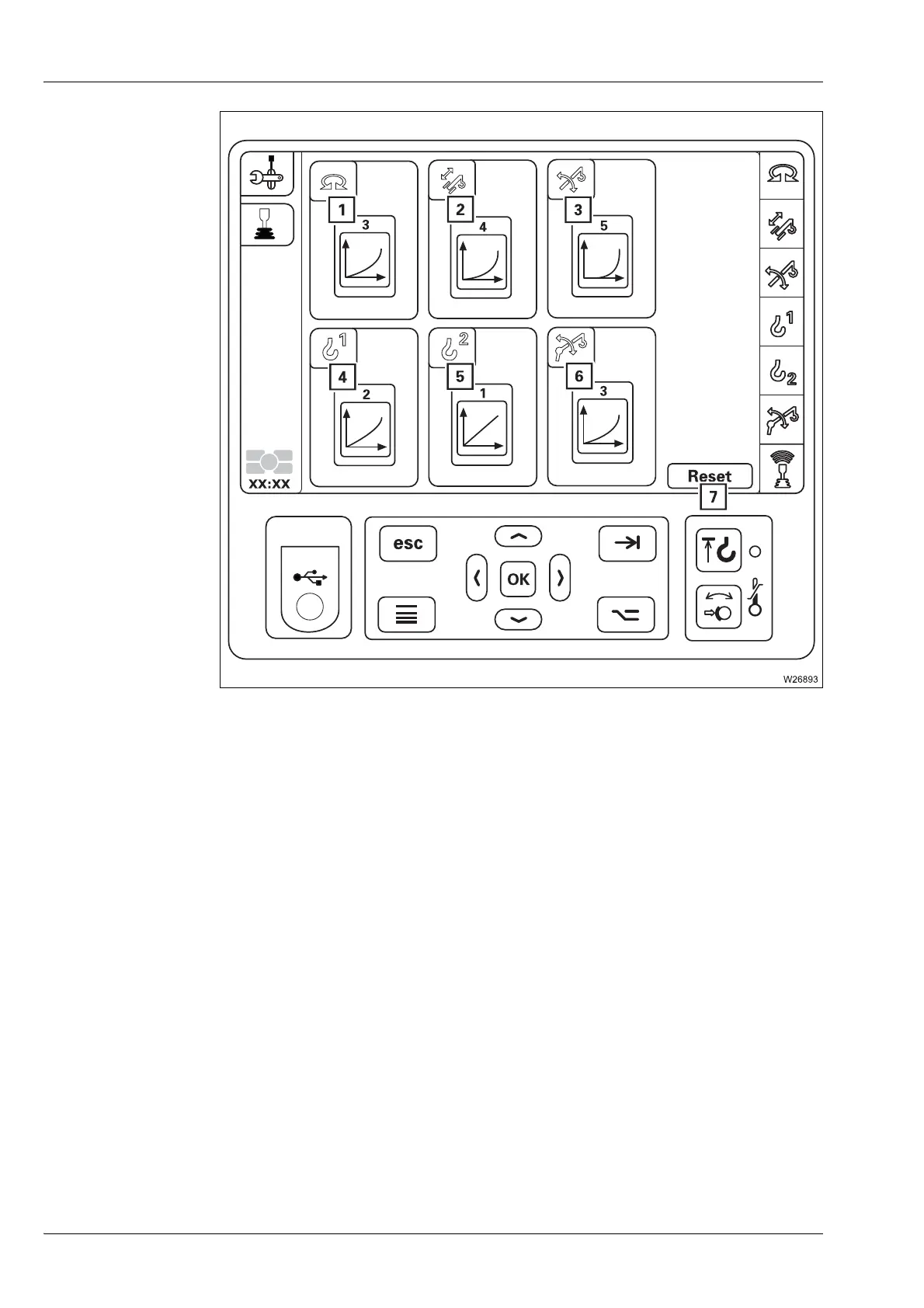

Set control lever
characteristic
curve menu
1 Characteristic curve slewing gear
à p. 10 - 126
2 Characteristic curve telescoping mechanism
3 Characteristic curve derricking gear
4 Characteristic curve main hoist
5 Auxiliary hoist
1) characteristic curve
6 Lattice extension
1) characteristic curve
7 Setting Reset characteristic curve
1)
Additional equipment
