Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 125
27.09.2017

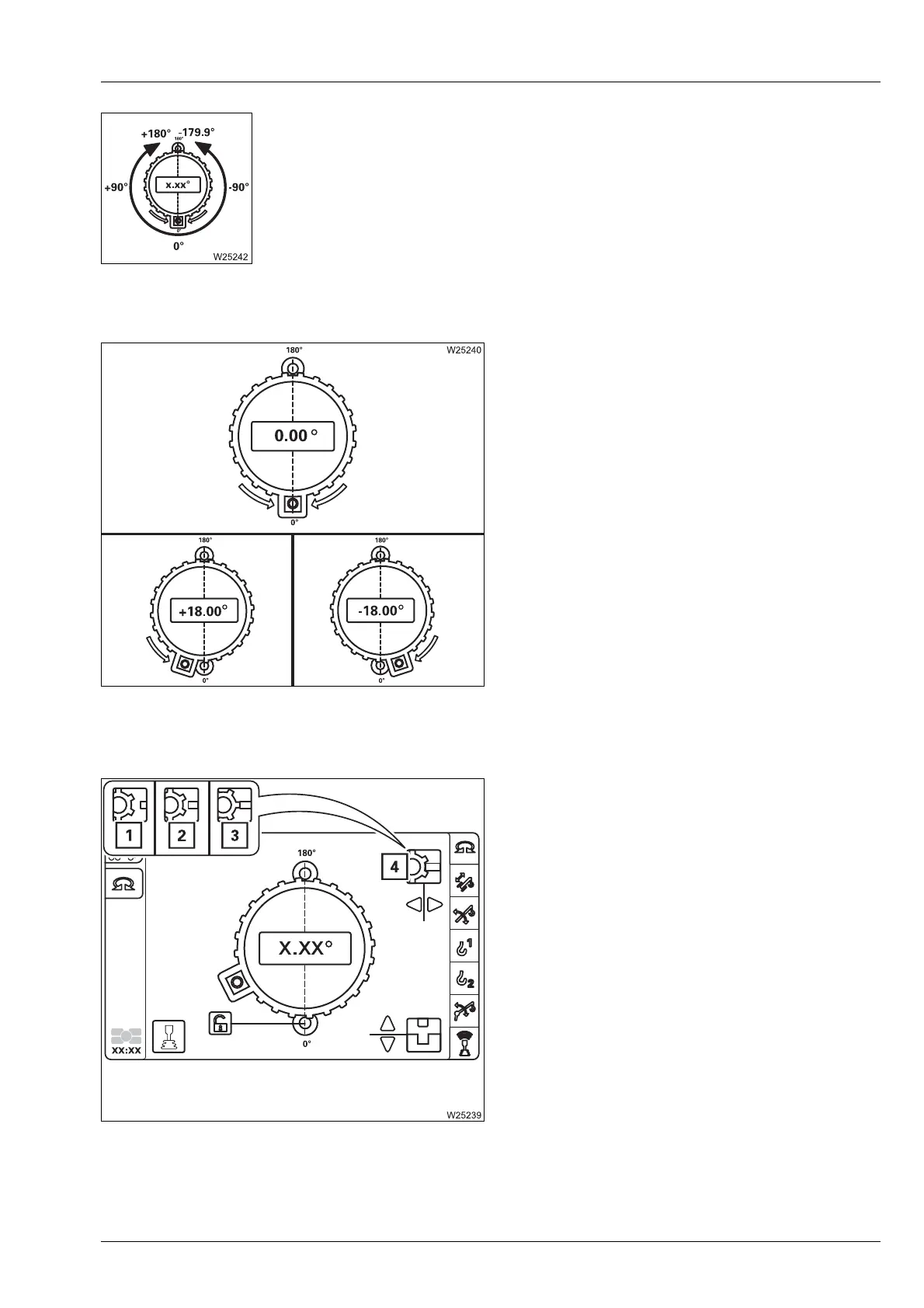

Current slewing angle display
Directional indicator
Current position ± 20° in front of the locking
point.
Houselock
à Switching the houselock on/off, p. 10 - 17.
Locking status displays
The current position of the locking pin is
shown by different symbols:
s
0°: Position 0° to the rear – locking point
180°: Position
180° to the front – locking point
+ 0.1 to +180.0°: Turned to the right from 0°
- 0.1 to -179.9°: Turned to the left from 0°
à p. 10 - 115
– Both arrows: locking point reached
– One arrow: direction of arrow =
turning direction towards
the locking point
à p. 10 - 15
1 Unlocked
2 Intermediate position
3 Blocked, locking pin in front of a tooth
4 Locked
à p. 10 - 17
