Crane operation
10.1 Before operating the crane
10 - 6 3 302 633 en Operating Instructions GMK5250L
27.09.2017
Checking the
position of the
hoist ropes

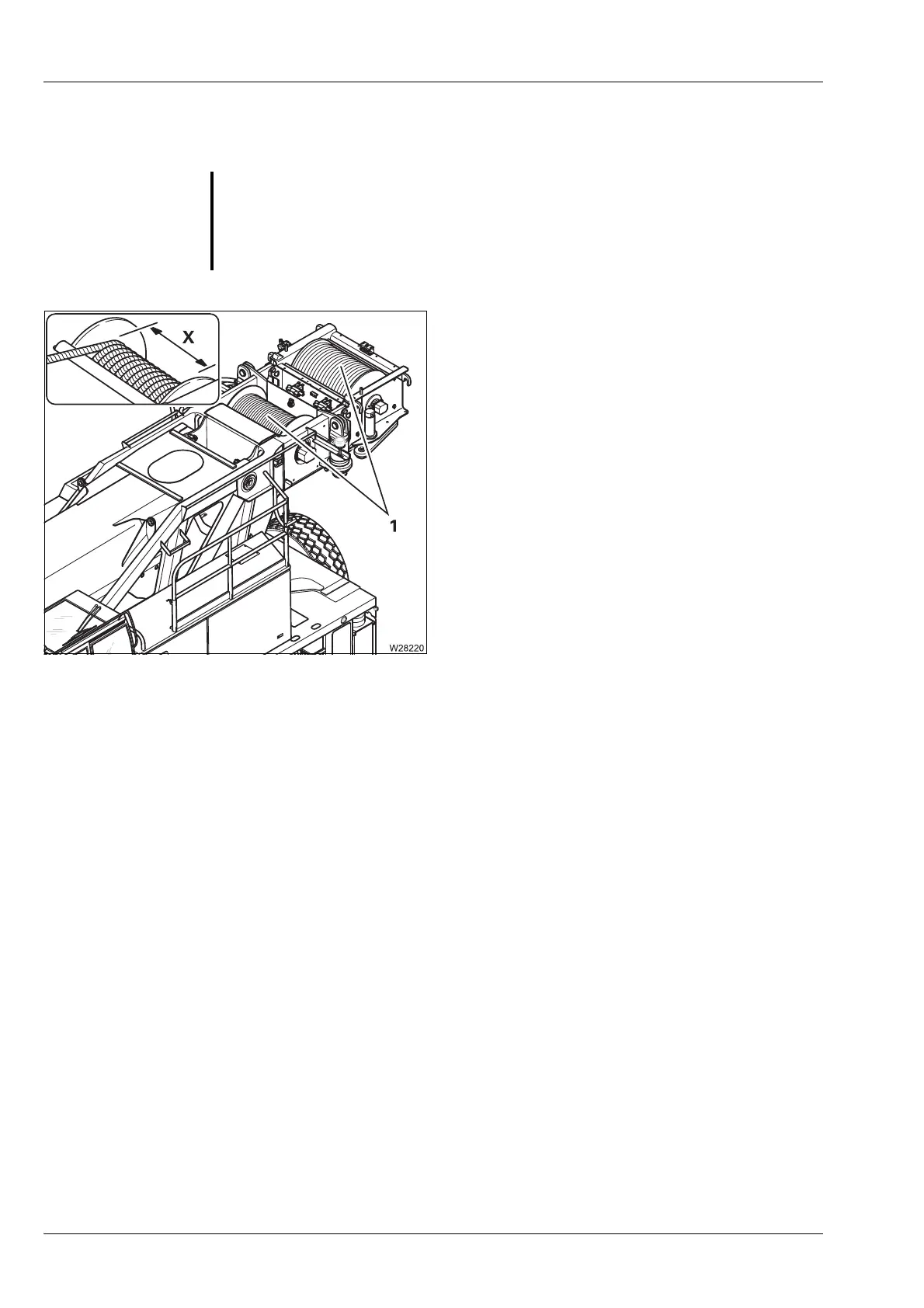

• Always check the entire length of the wind-
ing of the ropes (1).
• Slowly perform the Lower movement until
the rope has moved over a complete
width (X) of the rope drum.
– The rope must be evenly wound.
– The rope turns on the drum must be
evenly spaced at a distance of 0 to 2 mm
(0 to 0.08 in).
– The cross-over points must be at an angle
of approx. 180° to each other.
H
The top rope lines are laid over the next lower rope lines at the cross-over
points.
G
Risk of crushing due to turning rope drum!
Keep away from the rope drum while it is turning.
This will prevent your limbs from being drawn in or crushed.
