Overview

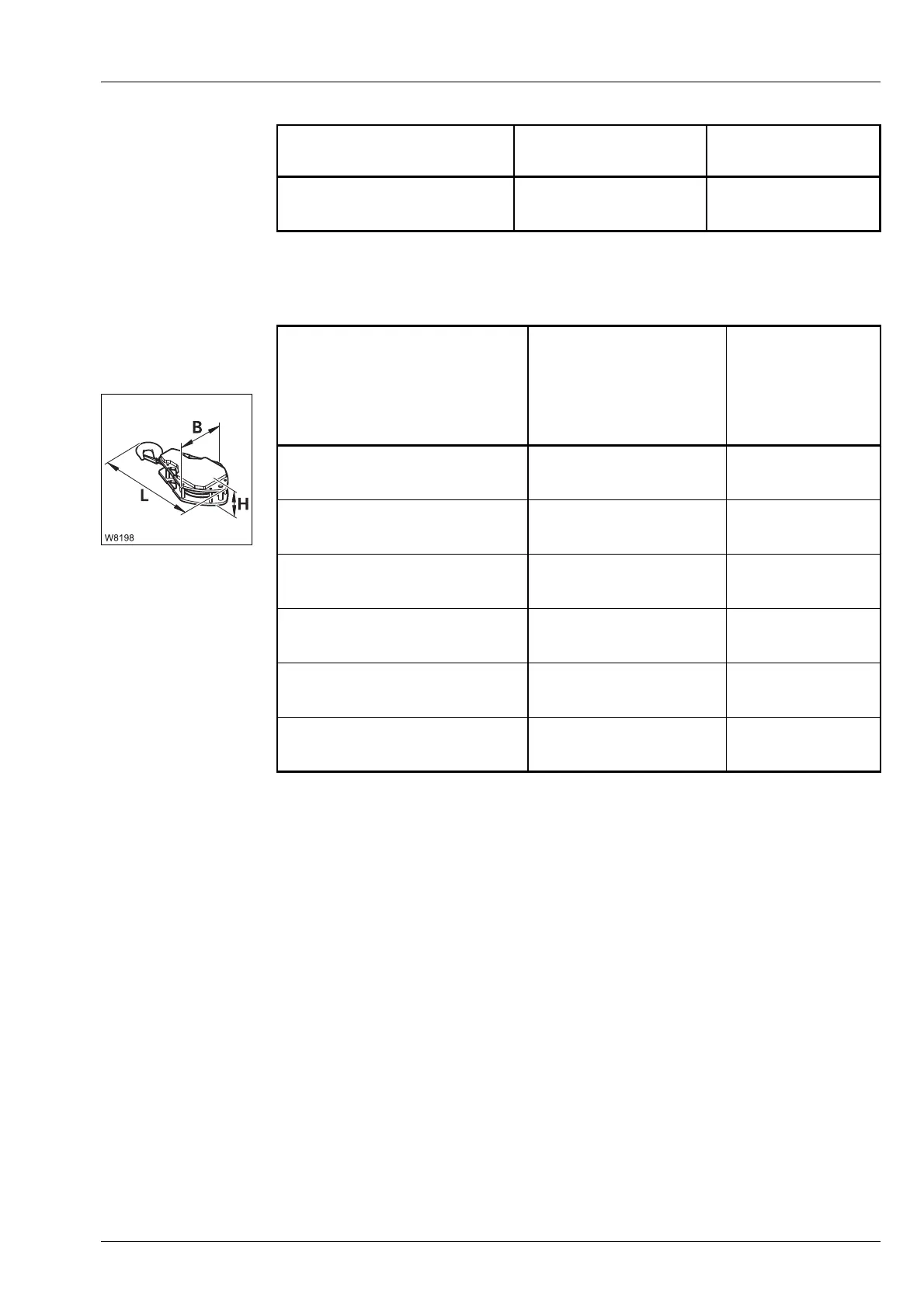

1.5 Technical data
Operating Instructions GMK5250L 3 302 633 en 1 - 11
27.09.2017
Main boom
Hook blocks and
hook tackle
s
Designation Length x width x
height in m (ft)
Weight in kg (lbs)
Complete main boom 13.85 x 1.50 x 2.00
(45.44 x 4.9 x 6.6)
21,000
(46,300)
Designation
Length x width x
height
(L) x (W) x (H)
in m
(ft)
Weight
in kg
(lbs)
Double hook, 9 sheaves 2.30 x 0.95 x 0.75
(7.55 x 3.12 x 2.46)
2,400
(5,290)
Double hook, 7 sheaves 2.00 x 0.85 x 0.75
(6.56 x 2.79 x 2.46)
1,750
(3,858)
Double hook, 5 sheaves 1.85 x 0.65 x 0.75
(6.07 x 2.13 x 2.46)
1,650
(3,638)
Double hook, 3 sheaves 1.75 x 0.40 x 0.75
(5.74 x 1.31 x 2.46)
950
(2,094)
Single hook, 1 sheave 1.50 x 0.25 x 0.75
(4.95 x 0.82 x 2.46)
600
(1,323)
Hook tackle 0.91 x 0.45 x 0.45
(3.00 x 1.48 x 1.48)
300
(660)
