Crane operation
10.4 Operation of the rated capacity limiter
10 - 36 3 302 633 en Operating Instructions GMK5250L
27.09.2017

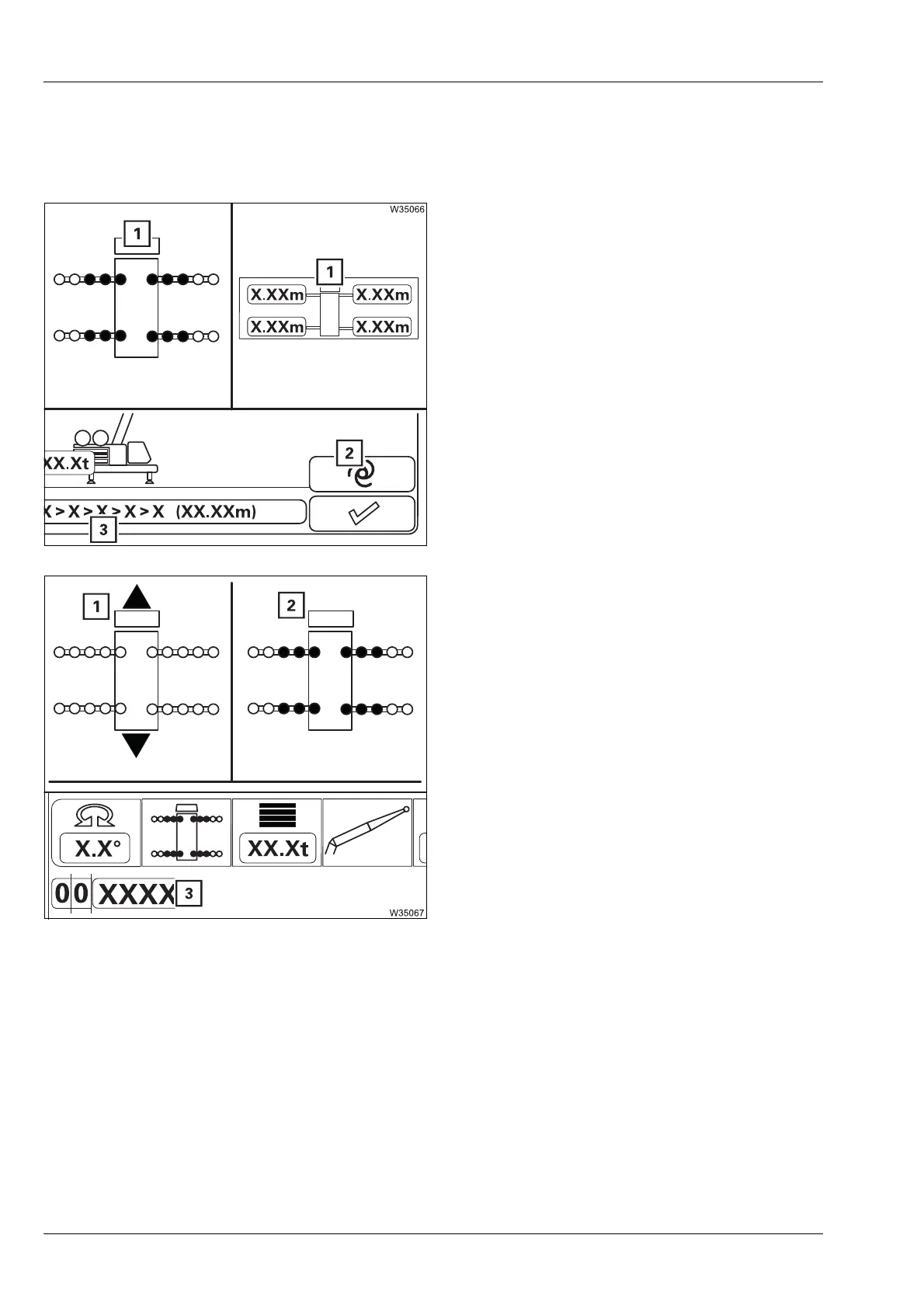

Outrigger span
You can adopt the outrigger span provided by the outrigger width monitor-
ing or manually enter the outrigger span.
Adopt the outrigger span
• Select and confirm the symbol (2).
The outrigger span provided by the outrigger
width monitoring is adopted and shown on
the current display (1).
At the same time, the current telescoping is
adopted and shown on the display (3).
• Always check that the currently rigged out-
rigger span is displayed before confirming
the rigging mode.
Enter outrigger span (
Standard)
• Select and confirm the display (1).
• Select the rigged outrigger span, e.g. sym-
bol (2) for 8.950 x 5.910 m (22.4 x 19.4 ft).
• Confirm the selection.
The selection and the corresponding RCL
code (3) are displayed.
If the outrigger span provided by the outrigger
width monitoring deviates from the entered
value then a query is displayed after confirm-
ing the rigging mode;
à p. 10 - 42.
