Crane operation
10.4 Operation of the rated capacity limiter
Operating Instructions GMK5250L 3 302 633 en 10 - 51
27.09.2017

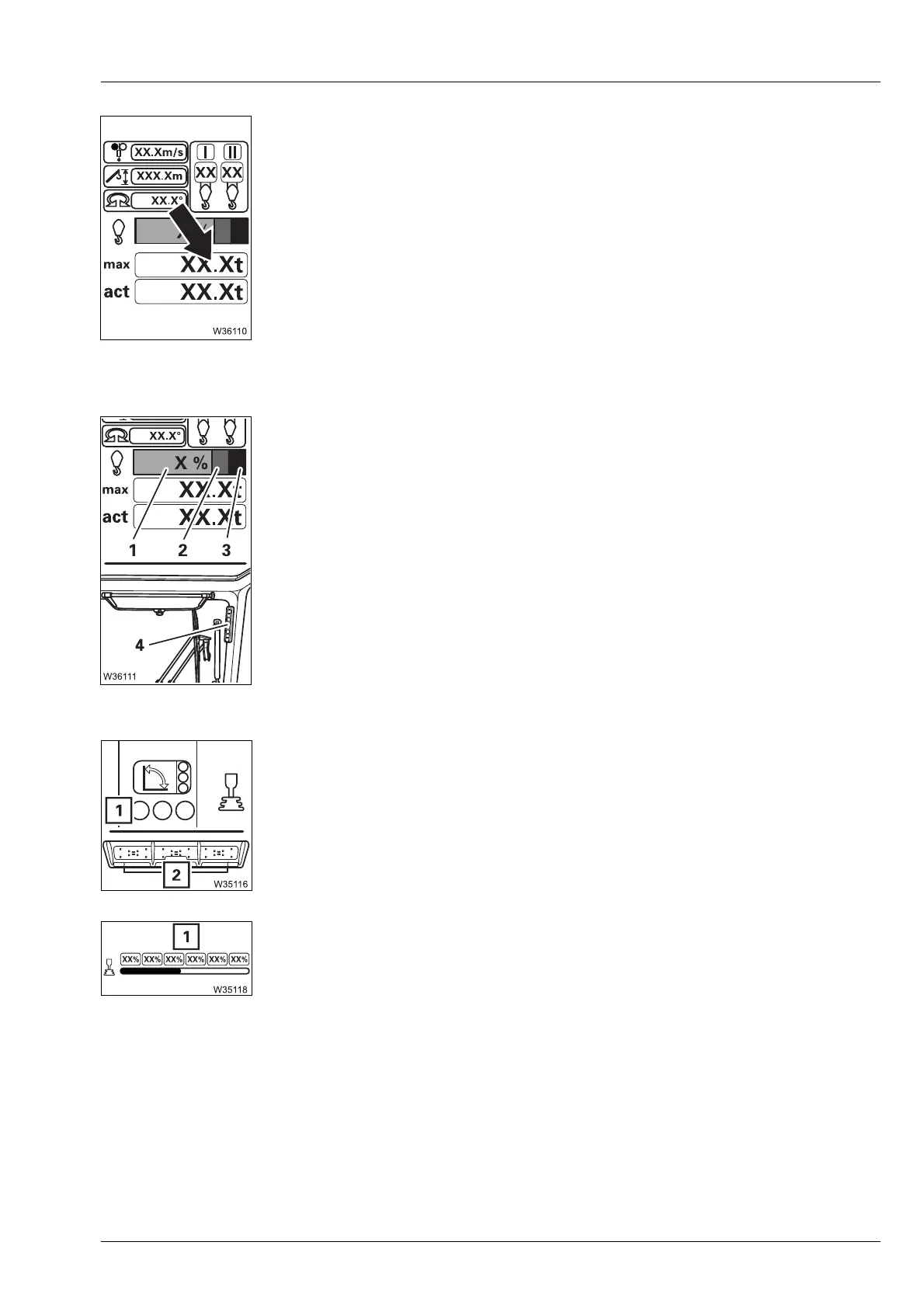

Maximum load display
Shows the maximum load that can be lifted in the current rigging mode with
the current working radius.
Values are displayed in tons (t) or in pounds (lbs) – for the confirmed rigging
mode.
The corresponding symbol (I) or (II) flashes when the lifting capacity is
reduced due to the entered reeving.
Current degree of utilization display
The degree of utilisation shows the weight of the current load as a percent-
age of the maximum possible load.(degree of utilisation= 100 x current load/
maximum load).
The display has three coloured regions.
Depending on the equipment, the degree of utilisation is shown on a display
(4) with coloured lamps.
RCL status display
The green, yellow and red displays (1) are identical to the status displays (2)
on the outside of the truck crane.
Current telescope status display
The display (1) shows the current telescoping – from left to right for
telescopic sections
I to VI. When the display is orange then the telescoping
cylinder head is in this telescopic section.
s
1Green: 0 - 90%
2 Yellow: approx. 90 - 100% – early warning
3Red: greater than 100% – shutdown
