10.4 Operation of the rated capacity limiter
10 - 62 3 302 633 en Operating Instructions GMK5250L
27.09.2017

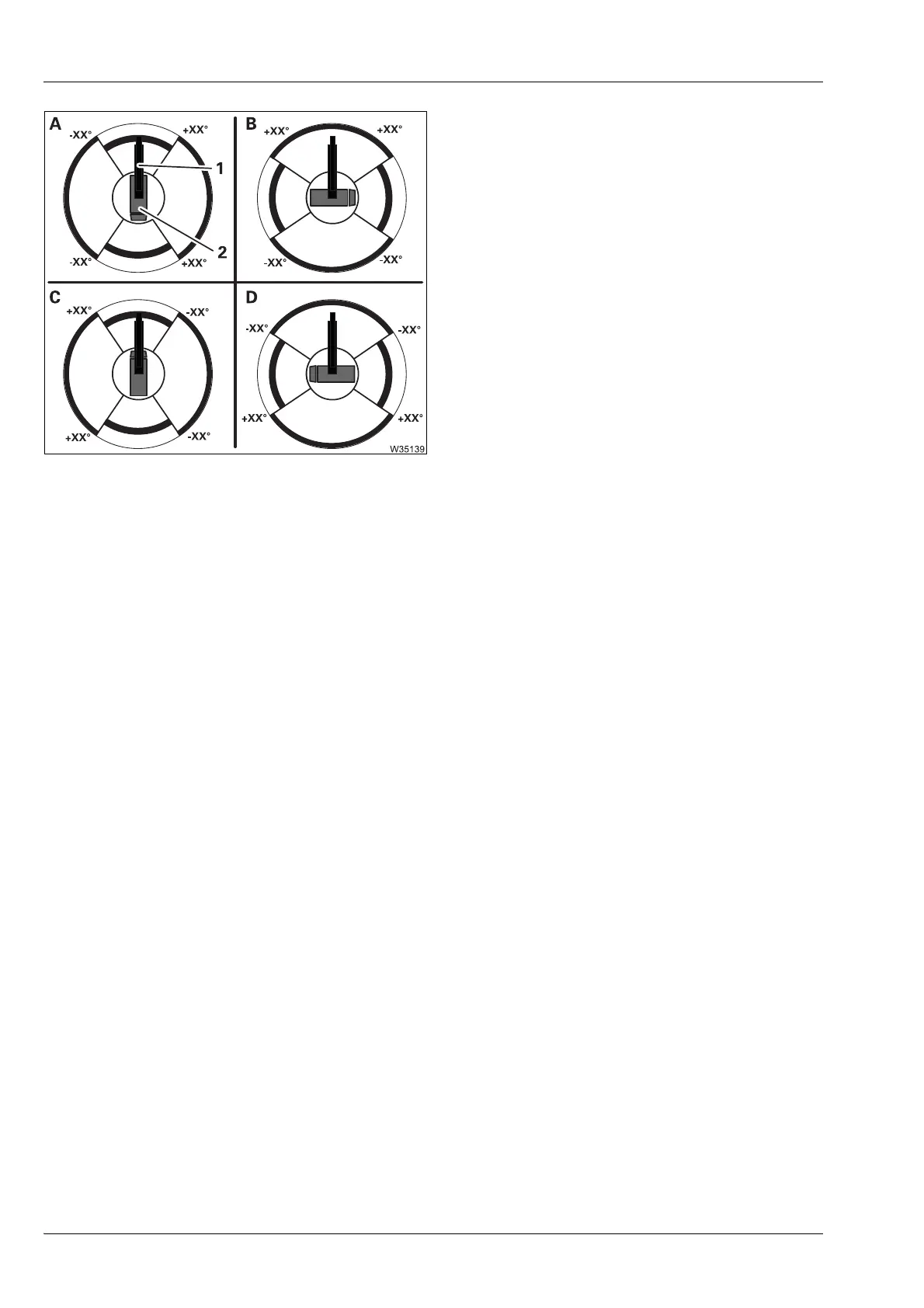

When slewing
The symbol (1) for the superstructure always
points upwards and does not move.
The symbol (2) for the carrier rotates together
with the display of the slewing range division
to the position corresponding to the slewing
angle.
Examples
A Current slewing angle 0°
B Current slewing angle +90°
C Current slewing angle +180°
D Current slewing angle -90°
