Crane operation
10.5 Crane operation with main boom
10 - 90 3 302 633 en Operating Instructions GMK5250L
27.09.2017

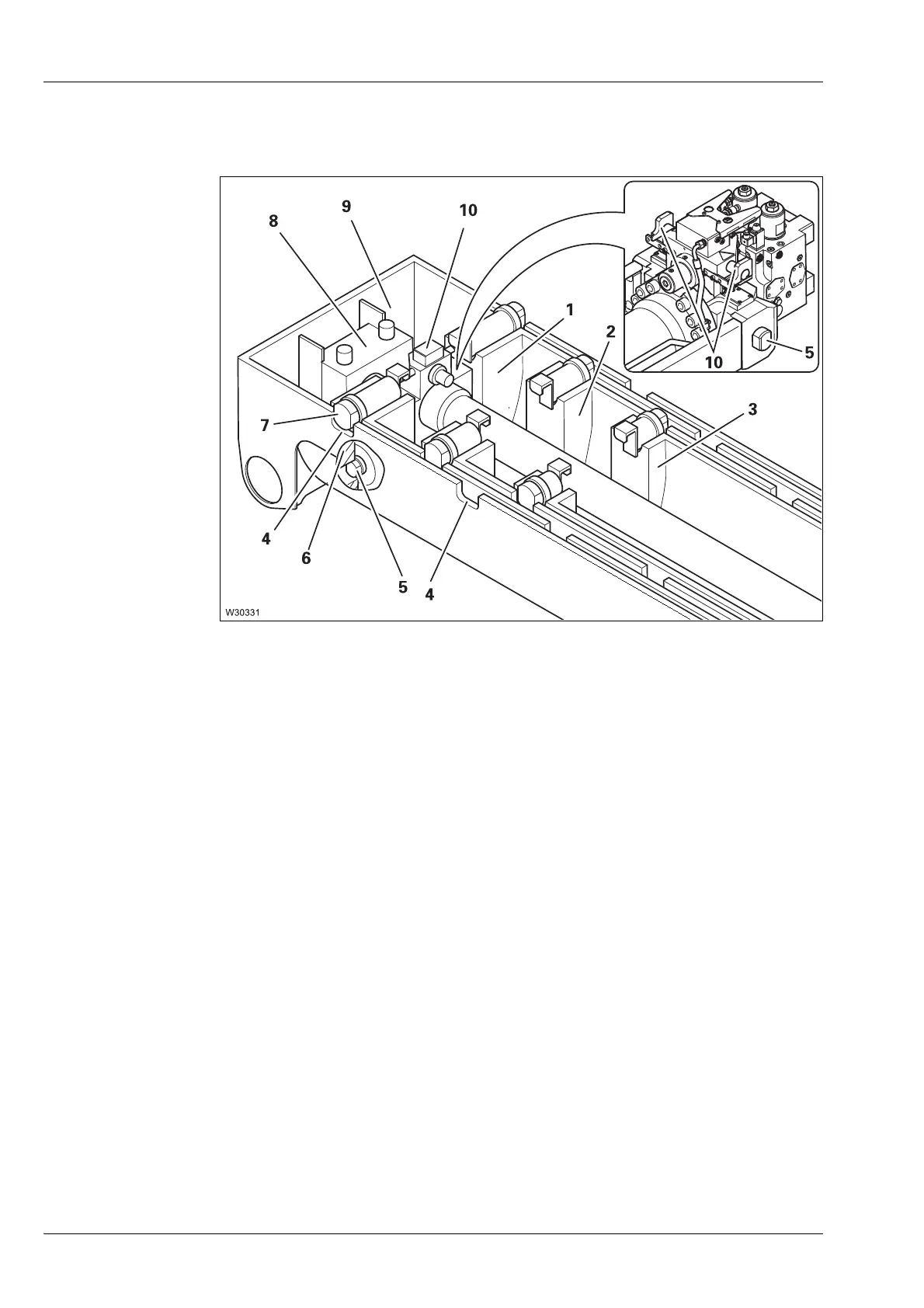

Overview This illustration shows the completely retracted main boom with the basic
section (9) and the first three telescopic sections
I to III (1) to (3).
Each telescopic section is equipped with two locking pins (7) which are
extended by spring force.
The locking pins (7) are pushed into the cutouts (4) of the telescopic section
above at the locking points – the telescopic section is locked.
The telescoping cylinder is attached to the basic section (9) via the piston
rod (8). The telescoping cylinder has two locking pins (5) at the bottom and
a mechanism at the top (10).
When the telescoping cylinder is positioned at a locking point:
– The locking pins (5) can be extended into the cutouts (6) – the telescoping
cylinder is locked.
– The mechanism (10) engages into the locking pins (7) and can retract
them – the telescopic section is unlocked.
Telescoping
process
This state should be the starting point for a telescoping process. A telescop-
ing processes consist of 4 steps:
