Crane operation
10.5 Crane operation with main boom
Operating Instructions GMK5250L 3 302 633 en 10 - 93
27.09.2017
Assignment for
display

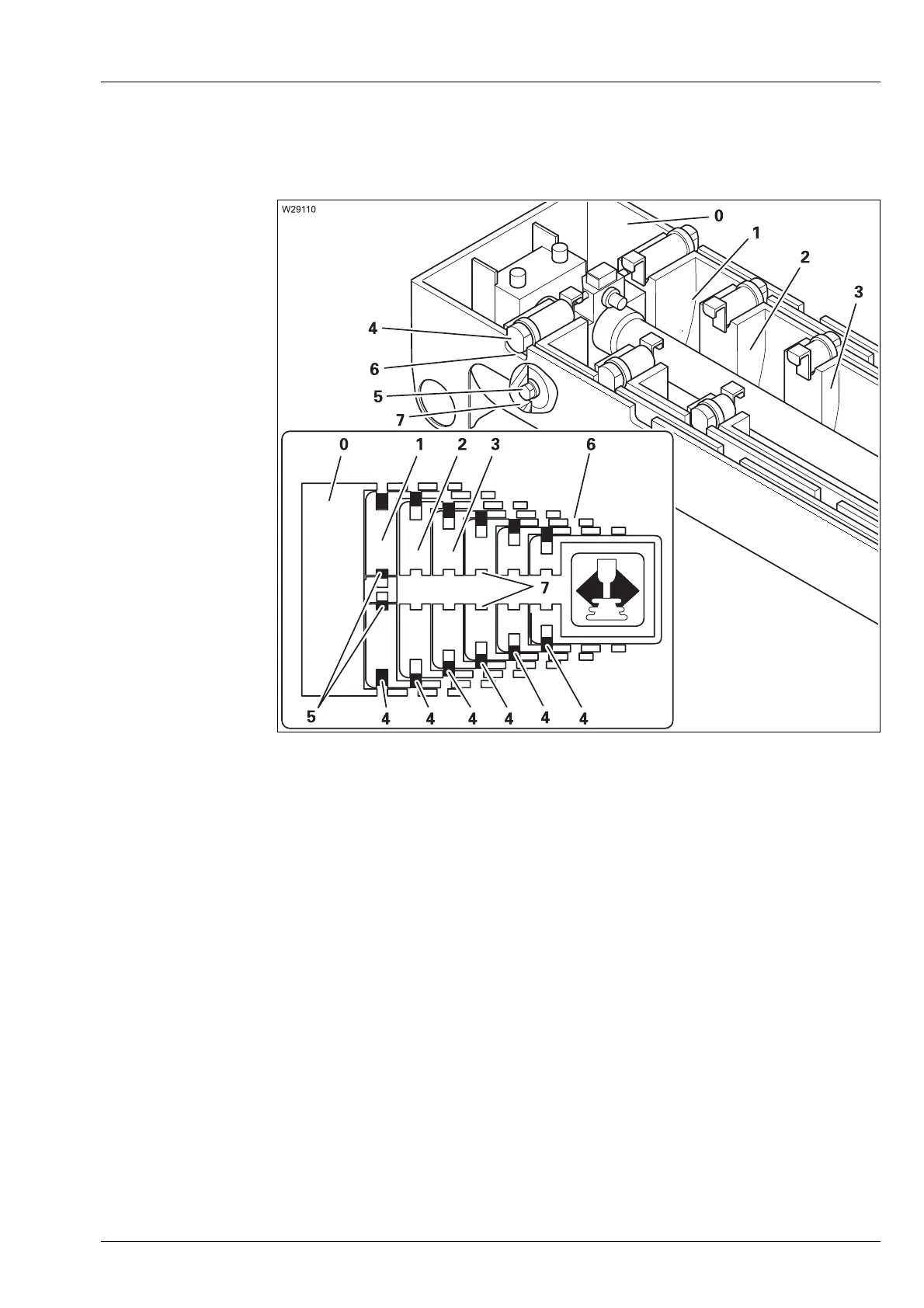

The CCS display shows a sectional view of the main boom in the menus.
The following elements are displayed:
s
0 Basic section
1 Telescopic section
I
2 Telescopic section II
3 Telescopic section III
4 Locking pin on the telescopic section
5 Locking pins on the telescoping cylinder
6 Cutouts, external
7 Cutouts, internal
