Crane operation
10.5 Crane operation with main boom
Operating Instructions GMK5250L 3 302 633 en 10 - 95
27.09.2017
Telescoping The position of the telescopic sections, i.e. which telescopic section is
extended to what extent, is referred to as telescoping.
The
CCS display shows main boom fixed lengths and main boom
intermediate/telescoping lengths in different ways.
Fixed lengths
Intermediate lengths/telescoping lengths
Telescoping
sequence
The telescopic sections can only be telescoped individually, one after the
other.
When Extending you must always extend the telescopic section with the
highest numbering first, then the telescopic section with the next lower
numbering, etc. (e.g.
IV, III, II, I).
The telescopic sections are always retracted in the reverse order of
extending.
s
Telescopic section I 0 - 56 - 89 - 100
Telescopic section
II 0 - 53 - 89 - 100
Telescopic section
III 0 - 52 - 89 - 100
Telescopic section
IV 0 - 52 - 92 - 100
Telescopic section
V 0 - 47 - 92 - 100
Telescopic section
VI 0 - 47 - 92 - 100

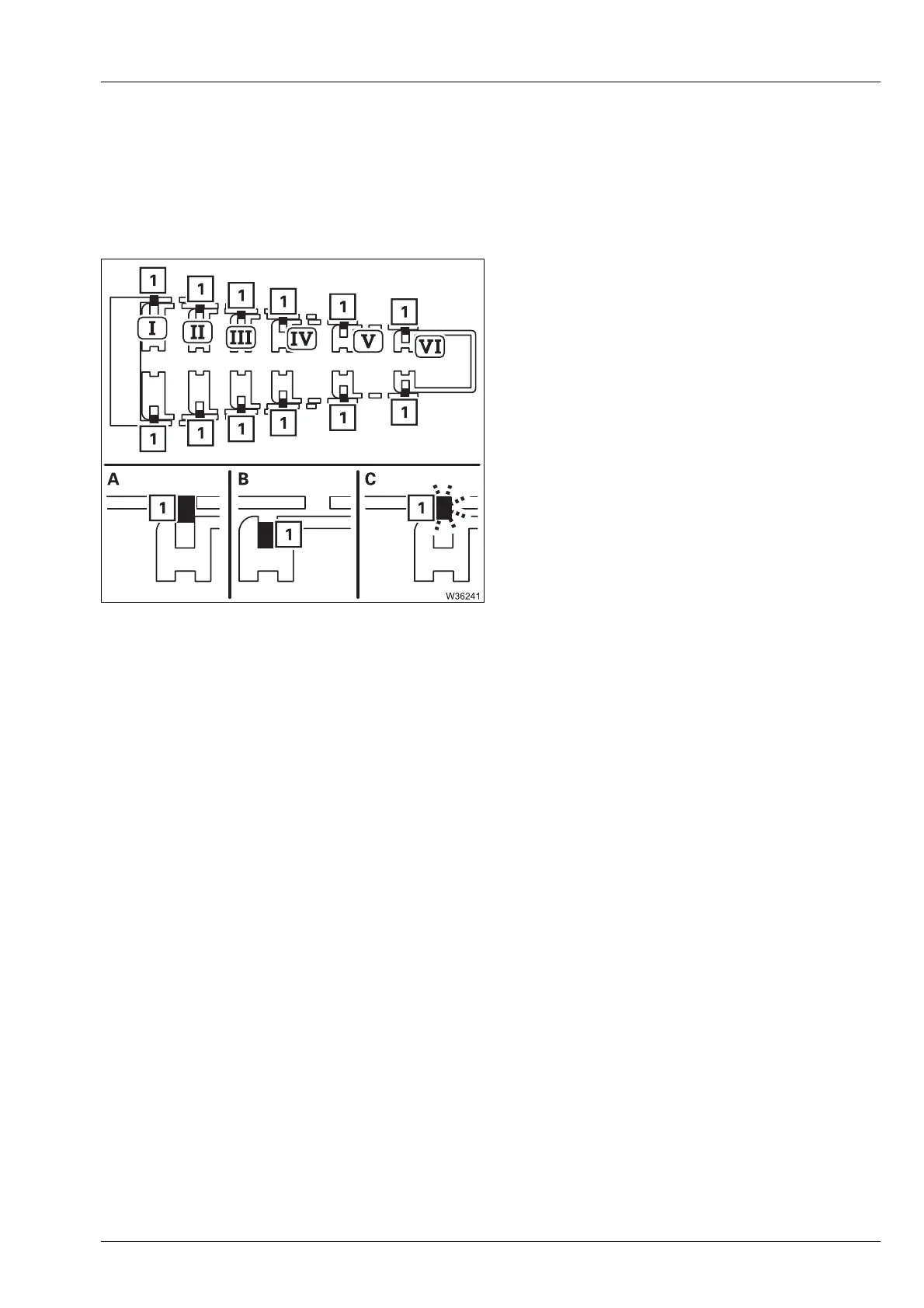

(A) – The locking pins (1) are green.
(B) – The locking pins (1) are black.
or
(C) – The locking pins (1) are flashing.
Telescopic section at fixed length
and
– unlocked or
– locked and not set down.
