Rigging work
11.9 Rigging/unrigging the counterweight
Operating Instructions GMK5250L 3 302 633 en 11 - 89
27.09.2017
Automatic mode
unrigging
While the automatic mode is being executed, you can always
– Cancel the automatic mode;
à Cancel automatic mode, p. 11 - 90.
– Cancel the automatic mode by letting go of the control lever. After moving
the lever in the displayed direction once more, the automatic mode is con-
tinued.
Prerequisites
– The lifting cylinders must be fully retracted –
symbol (3) green.
– The slewing gear is switched – symbol (1)
green.
– The superstructure must be in the rigging
range:
– Symbol (4) active,
– Symbol (2) displayed.

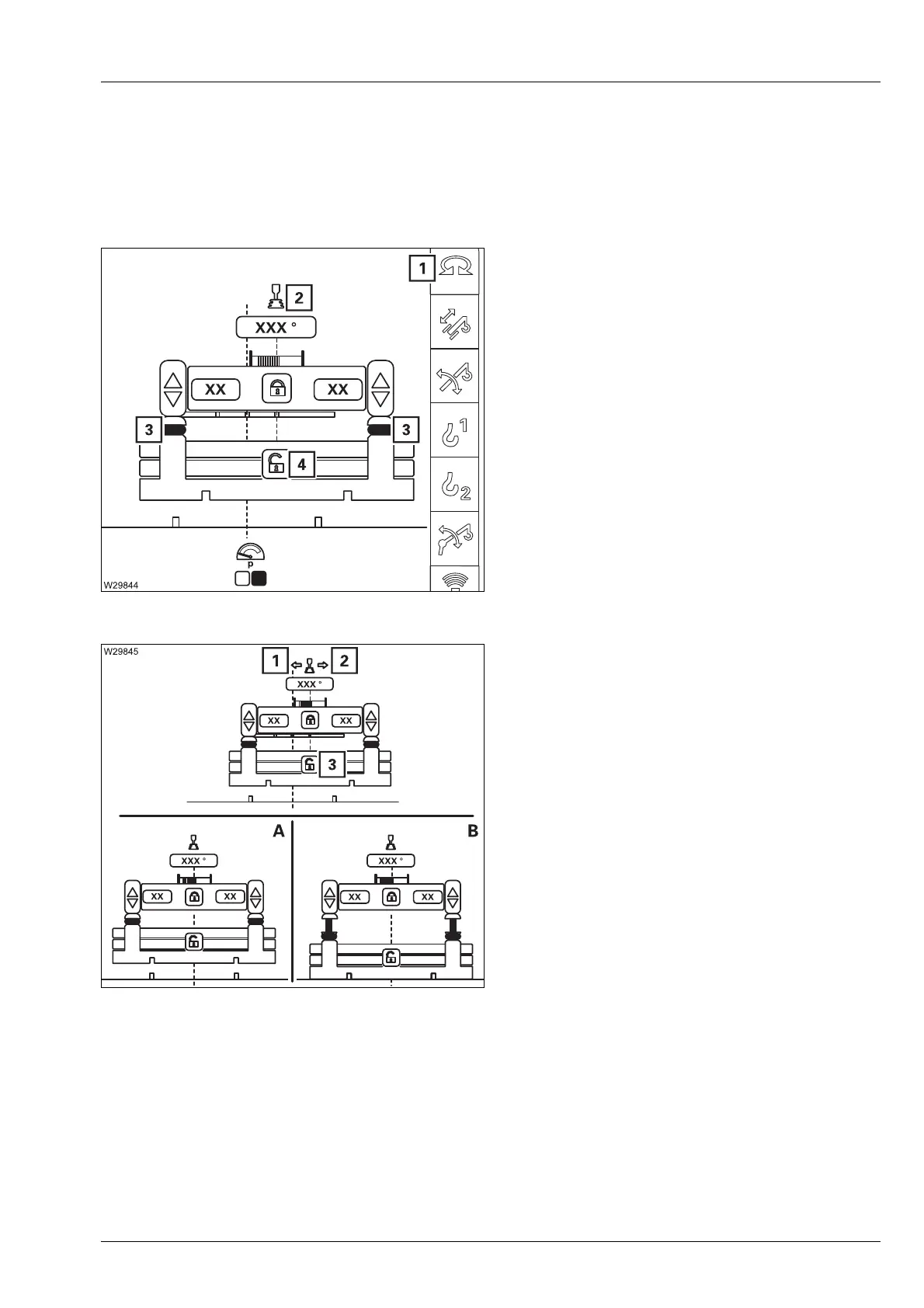

Switch on automatic mode
• Select and confirm the symbol (3).
Execute automatic mode
• Move the slewing control lever in the dis-
played direction (1) or (2) – the automatic
mode starts.
– The superstructure turns into position (A).
– The lifting cylinders extend (B).
• Release the control lever.
