Rigging work
11.9 Rigging/unrigging the counterweight
11 - 92 3 302 633 en Operating Instructions GMK5250L
27.09.2017

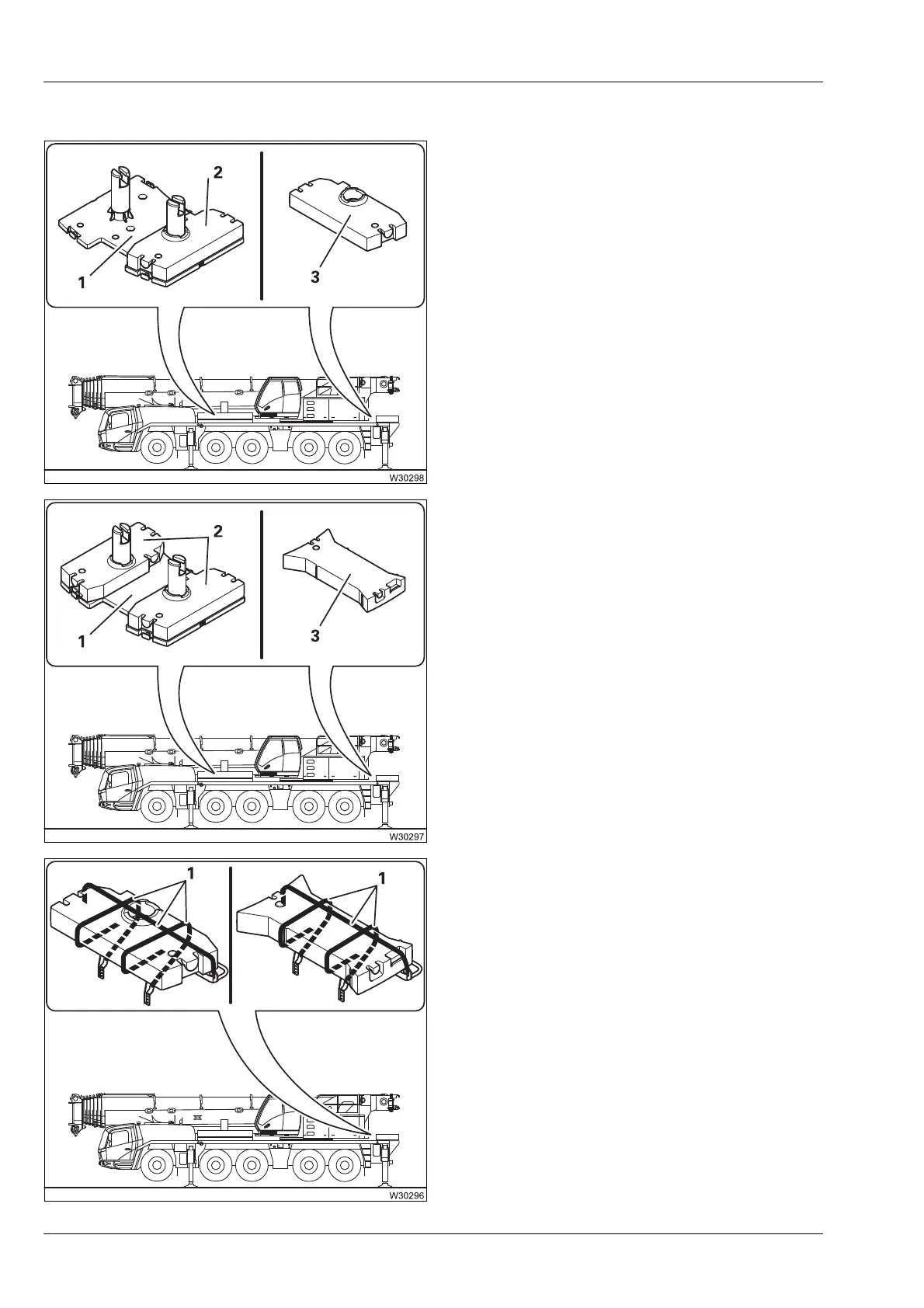

Observe the following points to avoid damage to the derricking cylinder.
If a lattice extension is folded at the side:
At most, set down
– the 7.0 t base plate (1),
– one 4.75 t section (2),
– one 4.75 t section (3) down.
If no lattice extension is folded at the side:
At most, set down
– the 7.0 t base plate (1),
– two 4.75 t sections (2),
– one 4.75 t section (3) down.
Fasten the counterweight on the rear storage
area
• Fasten the counterweight to the rear storage
area with the lashing straps provided (1).
