Rigging work
11.10 Rigging work on the main boom
Operating Instructions GMK5250L 3 302 633 en 11 - 121
27.09.2017

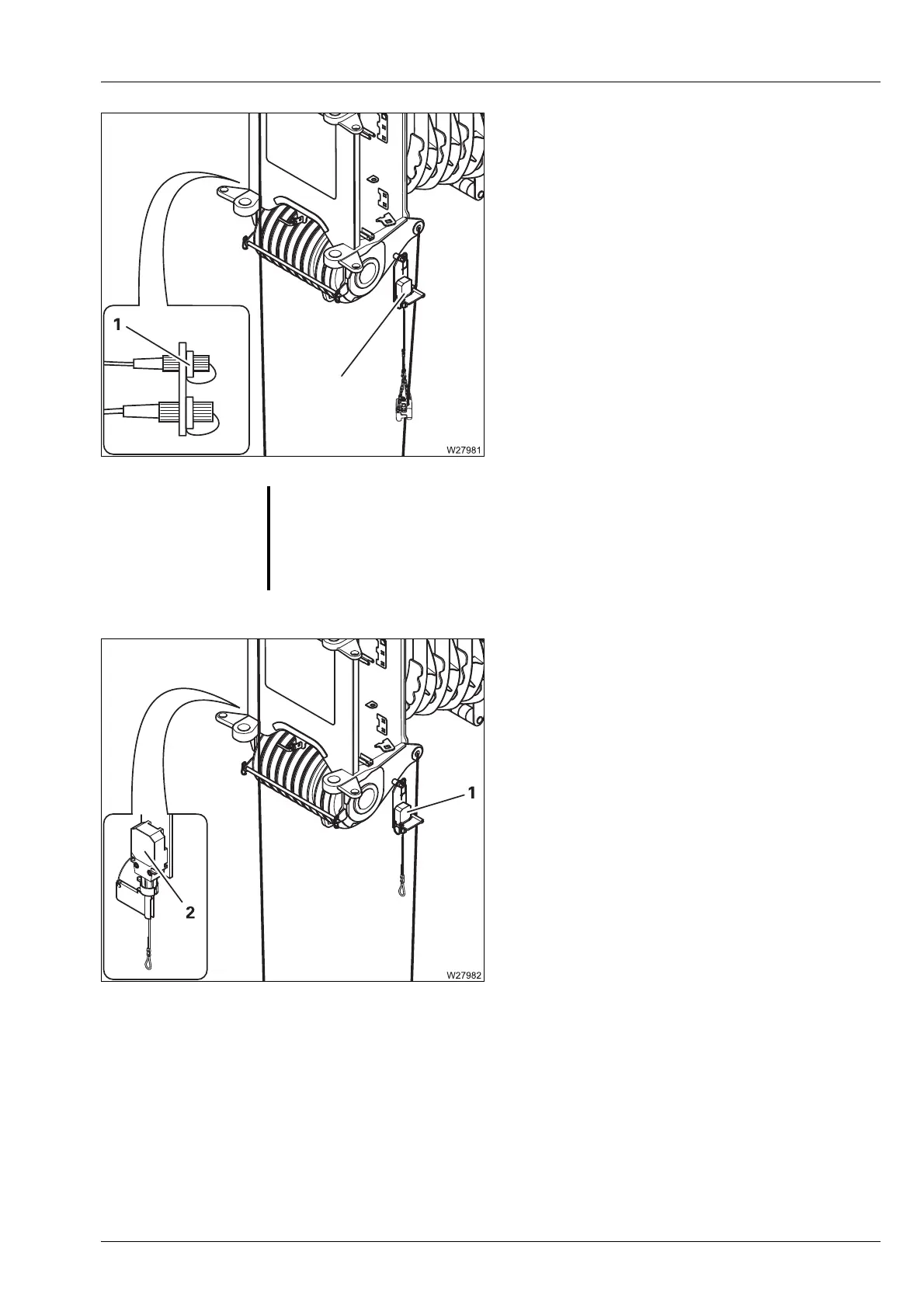

If only one lifting limit switch has been
installed
• Cover the unused socket with the protective
cap (1).
• Check whether the lock on the lifting limit
switch (2) is released;
à Removing the lock,
p. 11 - 125.
If two lifting limit switches have been
installed
• Lock the lifting limit switch to which no lift-
ing limit switch weight has been attached.
If the lifting limit switch weight has, for
example, been attached to the left lifting limit
switch (1), you must lock the right lifting limit
switch (2);
à Locking, p. 11 - 125.
Otherwise the movements
Raise hosting gear,
Telescope out and Lower the boom will be locked.
H
If two hoist ropes are reeved, you must also use two lifting limit switch
weights. In this case none of the lifting limit switches must be locked;
à Removing the lock, p. 11 - 125.
s
S
Risk of damage if the lifting limit switch is locked!
The lifting limit switch must not be locked. Remove the lock, if necessary.
If the lifting limit switch is locked, the hook block could hit the bottom of the
main boom head during the lifting procedure, resulting in damage to the
hook block, main boom head and hoist rope.
