Rigging work
11.10 Rigging work on the main boom
11 - 124 3 302 633 en Operating Instructions GMK5250L
27.09.2017

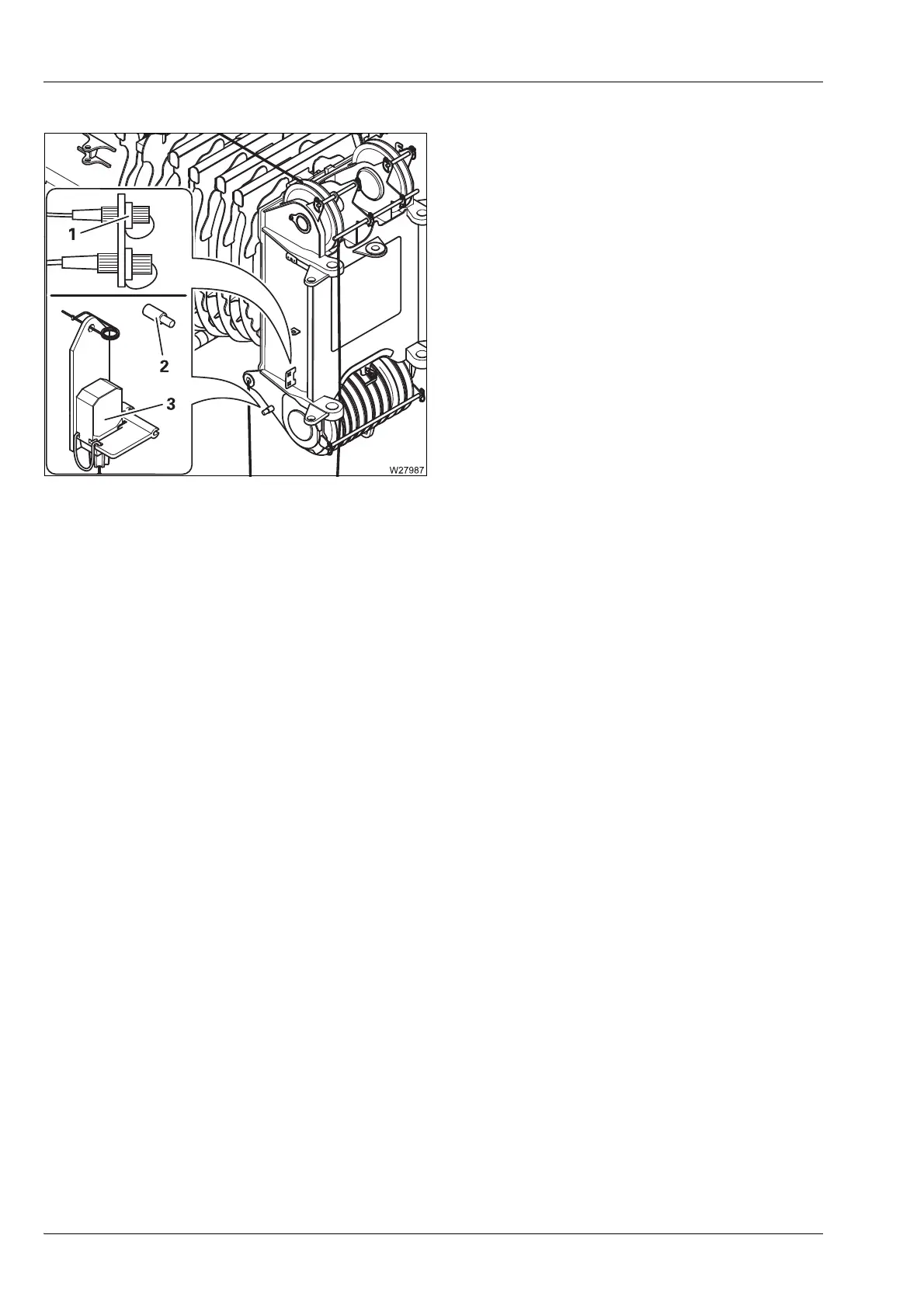

Removing the right lifting limit switch
• Pull the plug from the socket (1).
• Remove the plug (3) from the dummy
socket (2) and plug it into the socket (1).
• Remove the lifting limit switch (5) from the
bracket (4).
• Fasten the retaining pin on the lifting limit
switch.
