Malfunctions during crane operation
14.5 Emergency operations and programs
Operating Instructions GMK5250L 3 302 633 en 14 - 27
27.09.2017
Mechanical emer-
gency activation
The following requirements must be met before unlocking manually:
– The main boom must be lowered to the horizontal position so that the
telescopic section cannot retract by itself.
or
– The telescopic section to be unlocked is secured against retracting by
itself by using an auxiliary crane. Telescoping is done with the auxiliary
crane.
H
If the telescoping cylinder is positioned at a locking point, the correspond-
ing telescopic section cannot be locked or unlocked manually.
There are two M8 x 110 bolts for every telescopic section.

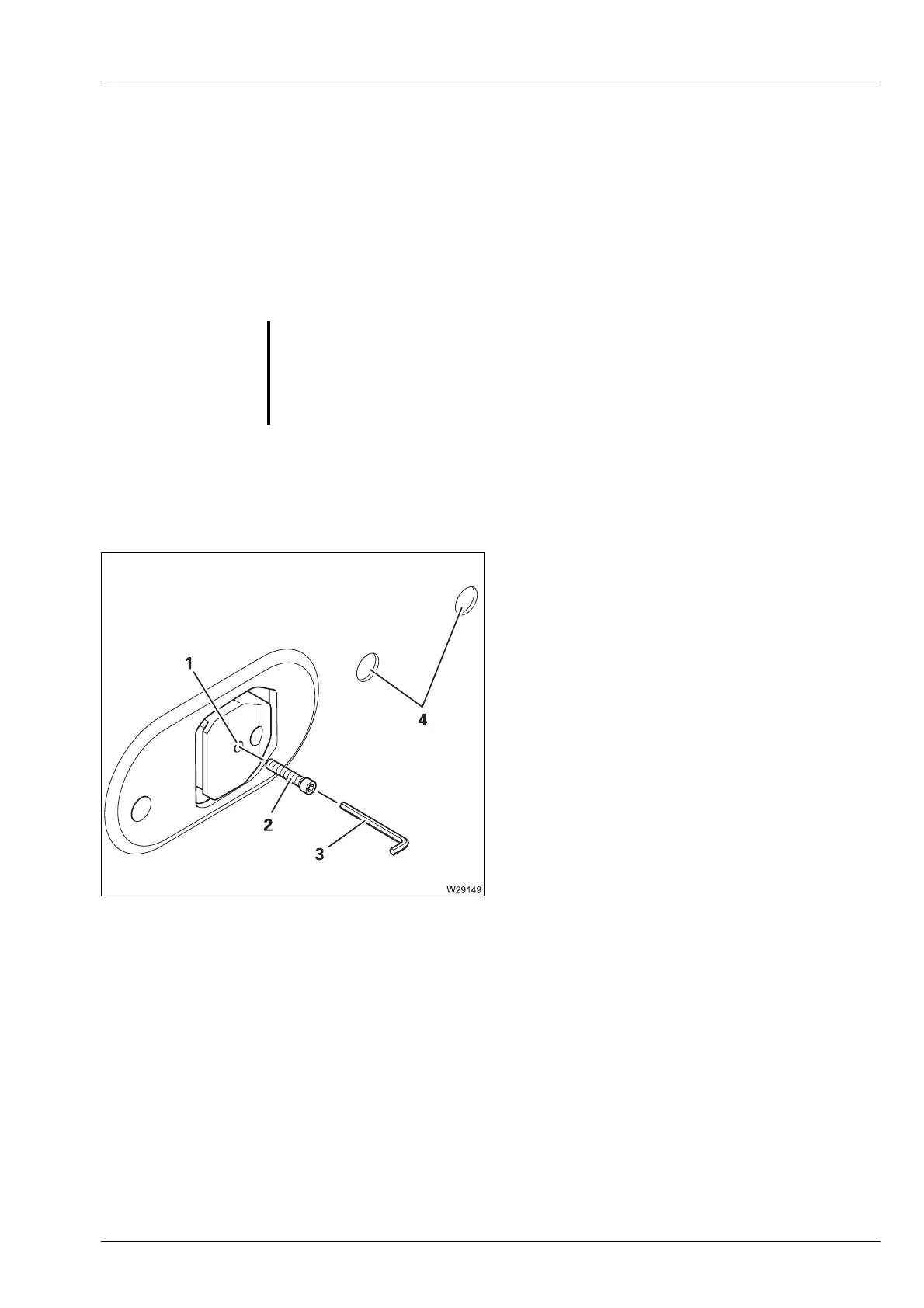

To unlock, bolts (2) are screwed into the lock-
ing pins (1).
Pins located further inside are reached
through the bores (4).
You will need a suitable socket wrench (3),
with one shank being at least 200 mm long.
– To unlock, the bolts are screwed in.
– To lock, the bolts are screwed out.
s
G
Risk of accidents due to sudden retraction of a telescopic section!
Before unlocking the telescopic section, secure it against automatic retrac-
tion. This prevents the retracting telescopic section severing one of your
limbs or the truck crane being damaged or overturned by the telescopic
section suddenly retracting.
