Malfunctions during crane operation
14.5 Emergency operations and programs
Operating Instructions GMK5250L 3 302 633 en 14 - 35
27.09.2017
Extending and locking the telescoping cylinder
You may not select Lock while the telescoping cylinder is retracting or
extending. Under no circumstances select and confirm the symbol (1).

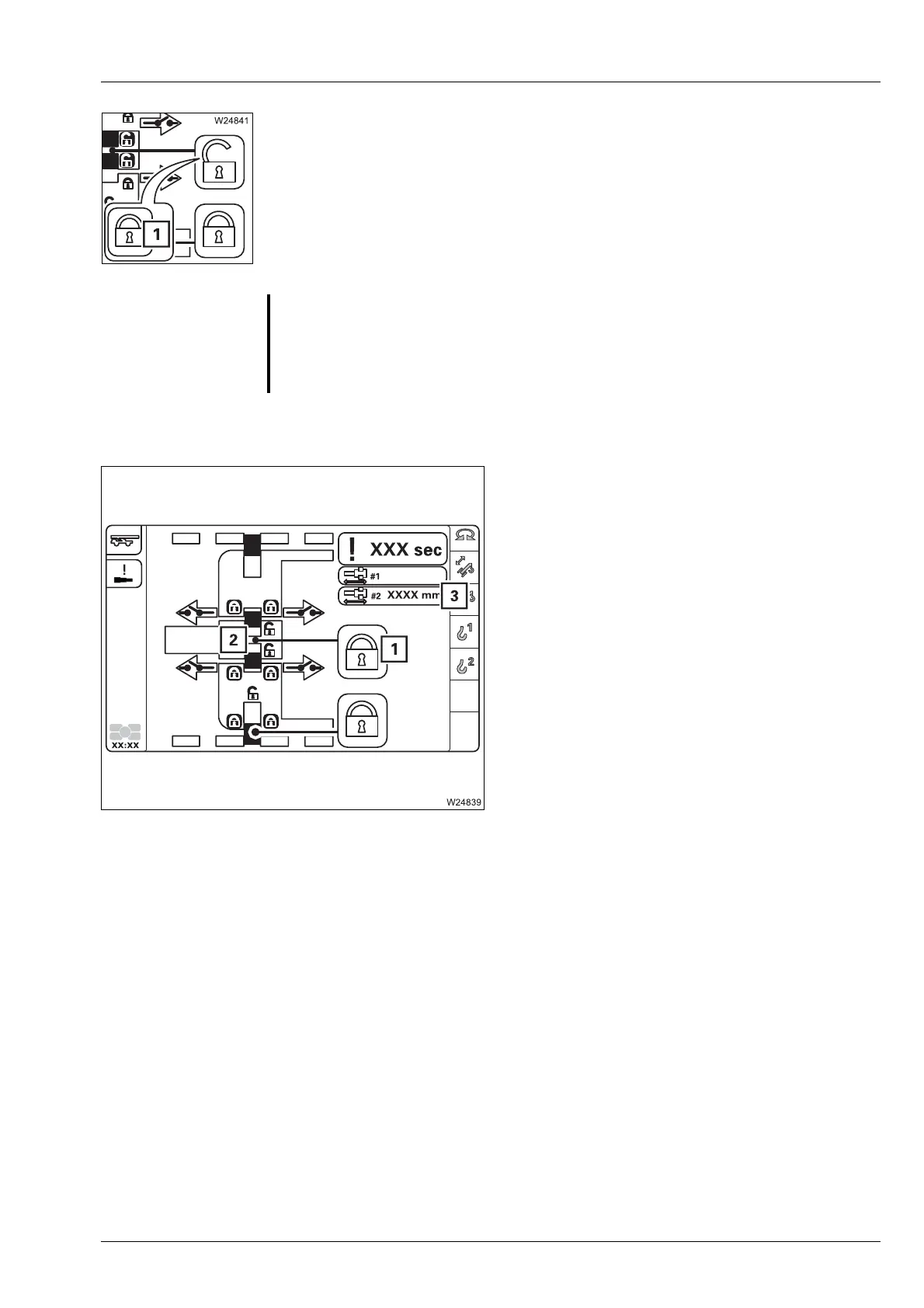

• Slowly move the telescoping cylinder into the next extended telescopic
section.
At the locking point:
– The display (3) shows the length for the
current locking point;
à p. 14 - 36.
• Select and confirm the symbol (1).
The telescoping cylinder is now locked. In the
Locked position, the locking pins (2) are green.
• You can now retract this telescopic section;
à p. 14 - 33.
s
S
Risk of damage to the main boom!
If you select Lock while the telescoping cylinder is moving, the locking pins
on the telescopic section are slid out immediately and they can damage or
tear the electrical or hydraulic components in the main boom.
