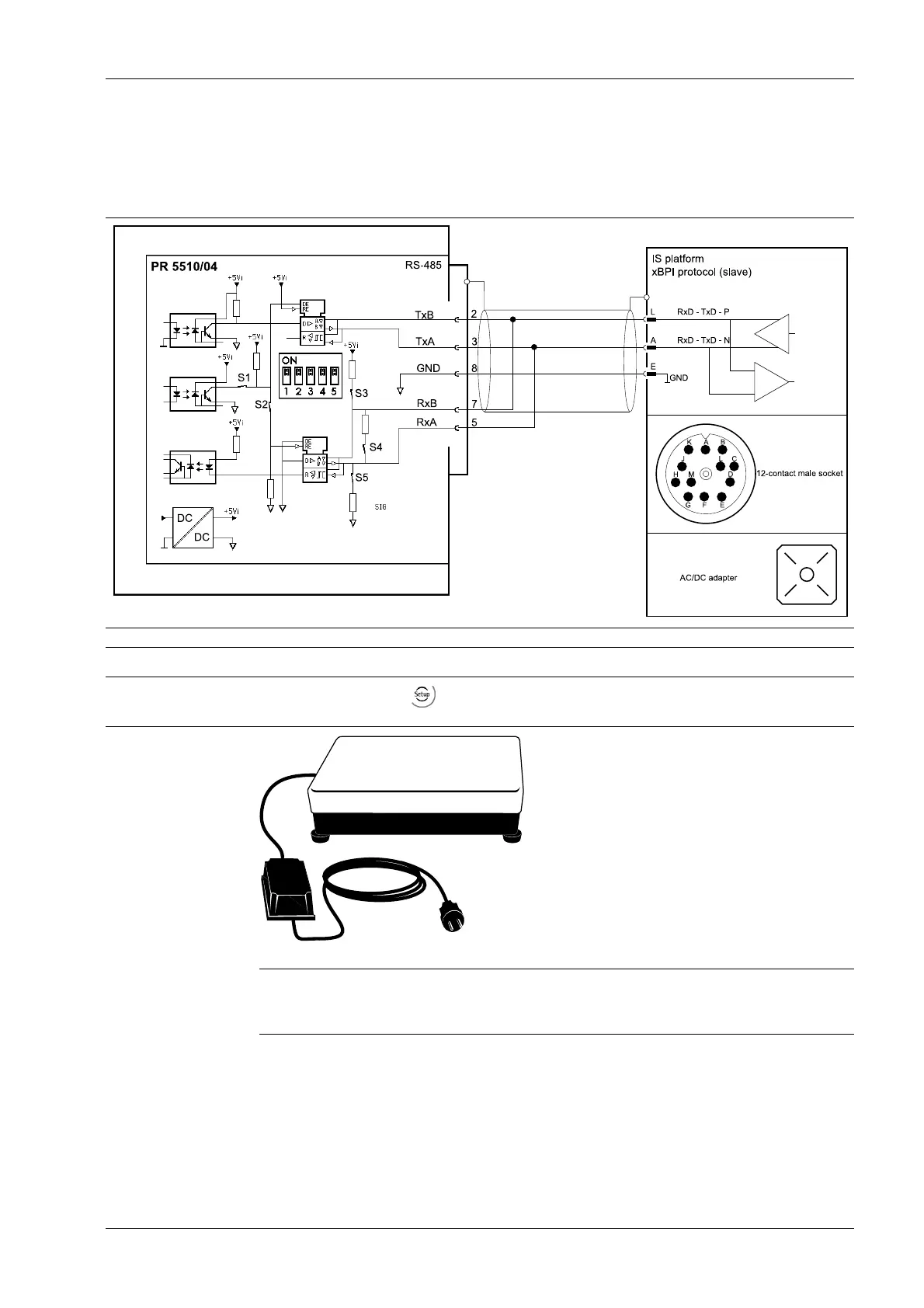

4.6.3.2.3 Connecting an IS platform
One IS platform scale with xBPI or SBI protocol can be connected via the RS-485 interface
(2-wire).
Switch settings PR 5410 Configuration PR 5410
ON: S1, S2, S3, S4, S5
OFF: …
- [Serial ports parameters]- [xBPI port]- [Slot 1/2 RS-485]
Note:
For further information, see the platform scale operating instructions.
4 Device installation X3 Process Indicator PR 5410
Minebea Intec EN-67
