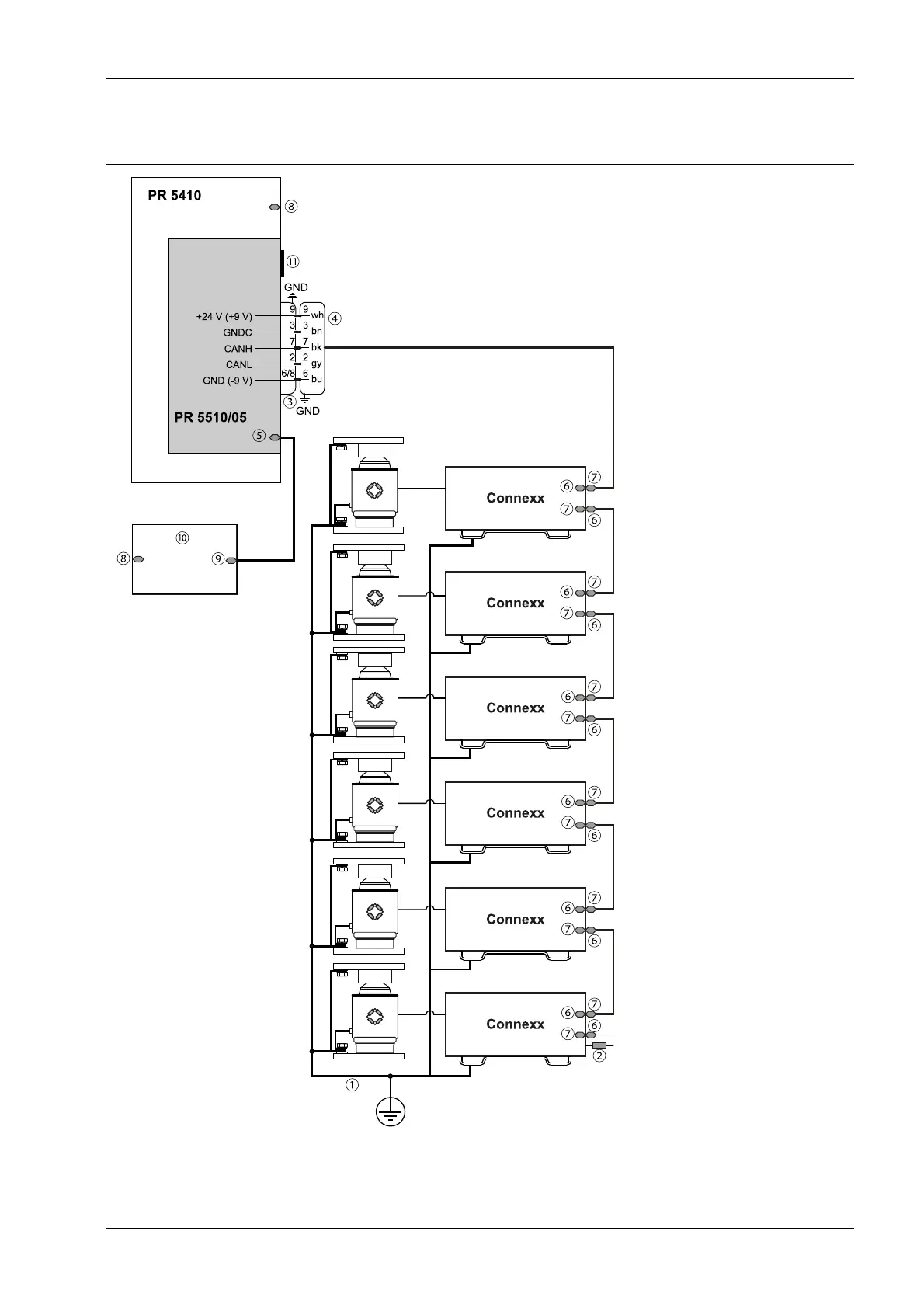

Connection example, shown as a diagram
①
Potential equalization
②
Terminating resistor
③
D-Sub 9-pin plug connector,
male
④
D-Sub 9-pin plug connector, fe-
male
⑤
Input voltage U
DC
= 24 V (only
for connected external voltage
supply)
⑥
M12 plug connector, male
⑦
M12 plug connector, female
⑧
Voltage supply U
AC
= 230 V
⑨
Output voltage U
DC
= 24 V (only
for connected external voltage
supply)
⑩
External voltage supply (only re-
quired when connecting >4
Connexx modules)
⑪
Switch to turn on a bus-
terminating resistor
4 Device installation X3 Process Indicator PR 5410
Minebea Intec EN-75
