CONTROL ITEMS 4-89
iPASOLINK EX Advanced: OPERATION & MAINTENANCE GGS-000548-01E
6. The Program File option window displays the selected directory. Click the OK
button.

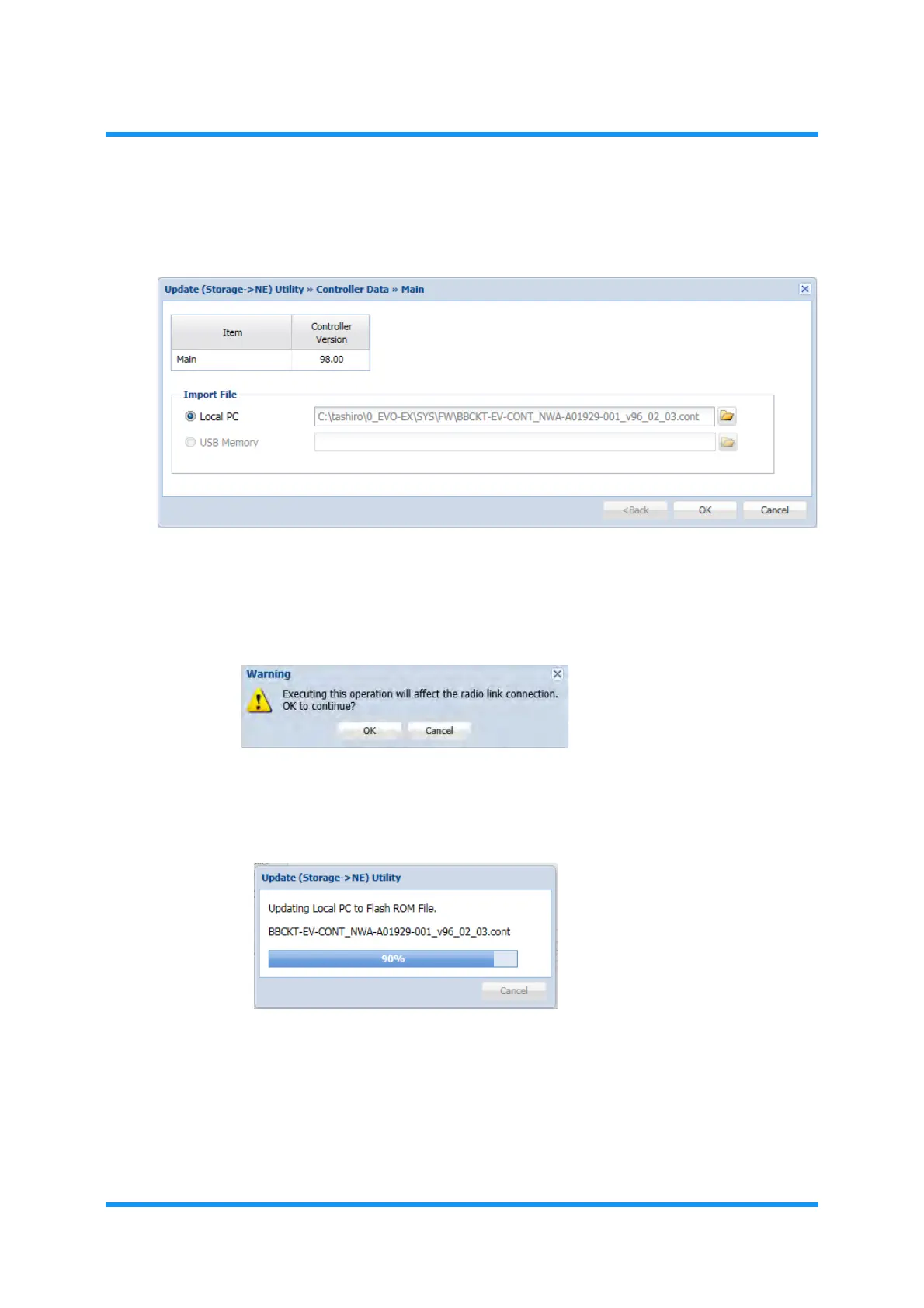

Figure 4-145 FPGA Data Option Window
Warning message dialog box appears.
7. Click the
OK button.
Figure 4-146 Warning Dialog Box
File downloading starts. During the downloading process, the progress bar
shows up.
Figure 4-147 Progress Bar
When completed, the Update Complete! message dialog box appears.
