¾ 7-1-6 ¾
Installing the Caller-ID Adaptor (TX-Z 824/1232/2464)
2. Connector Location

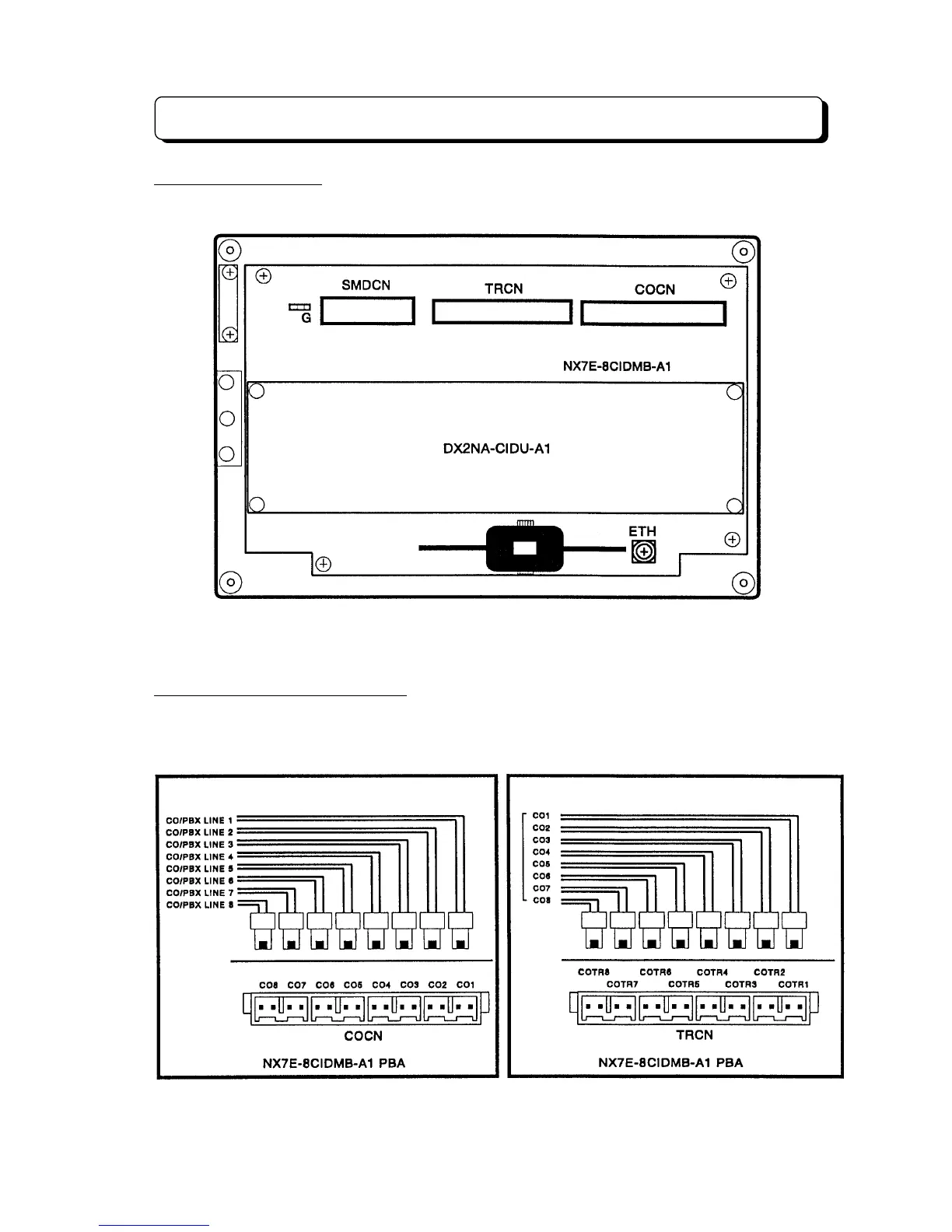

The connector locations for the Caller-ID adaptor are shown in the following illustration.
NX7E-8CID Adaptor
3. Connection of the CO/PBX Line
The Trunk lines which provide Caller-ID service should be connected as illustration. Make
connection from PTT lines to one of the connector (labeled COCN) on 8CIDMB-A1 unit in the
Caller-ID adaptor. The adaptor can be installed eight CO/PBX lines maximum.
To COCN connectors on
the NX7E-408( )/208( )-A1 or NX7E-( )PFU-A1
To Next Page
