3-3-6
¾

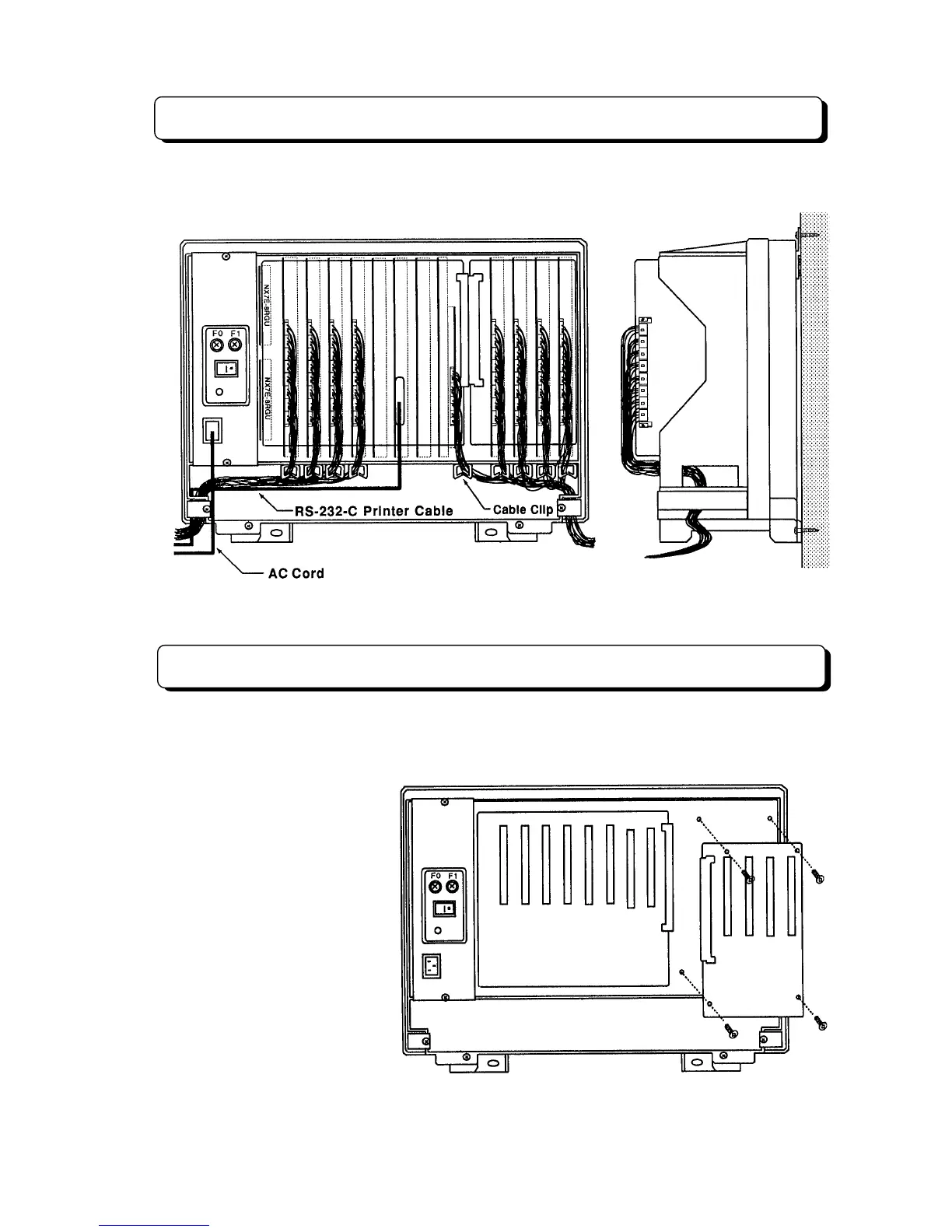

Cable Routing and Cramping
All cabling should exit from the right and left side of Main Equipment. Route and cramp the cable for the
Main Equipment as illustrated below.
Installing the Expansion Mother Board
The NX7E-24EPMB is the expansion mother board which increases the capacity of the system from
1232 (12 lines and 32 stations) to 2464 (24 lines and 64 stations). When you expand the system, note
that the expansion power supply (NX7E-12PS) is also required.
The NX7E-24EPMB can
accommodate three NX7E-
408U-A1 units and one NX7E-
008U-A1 unit.
Step 1:
Mount the NX7E-
24EPMB board in the Main
Equipment and joint the EXP
connector to another EXP
connector on the main mother
board (NX7E-12MB).
Step 2:
Insert the four screws,
and screw the board to Main
Equipment.
