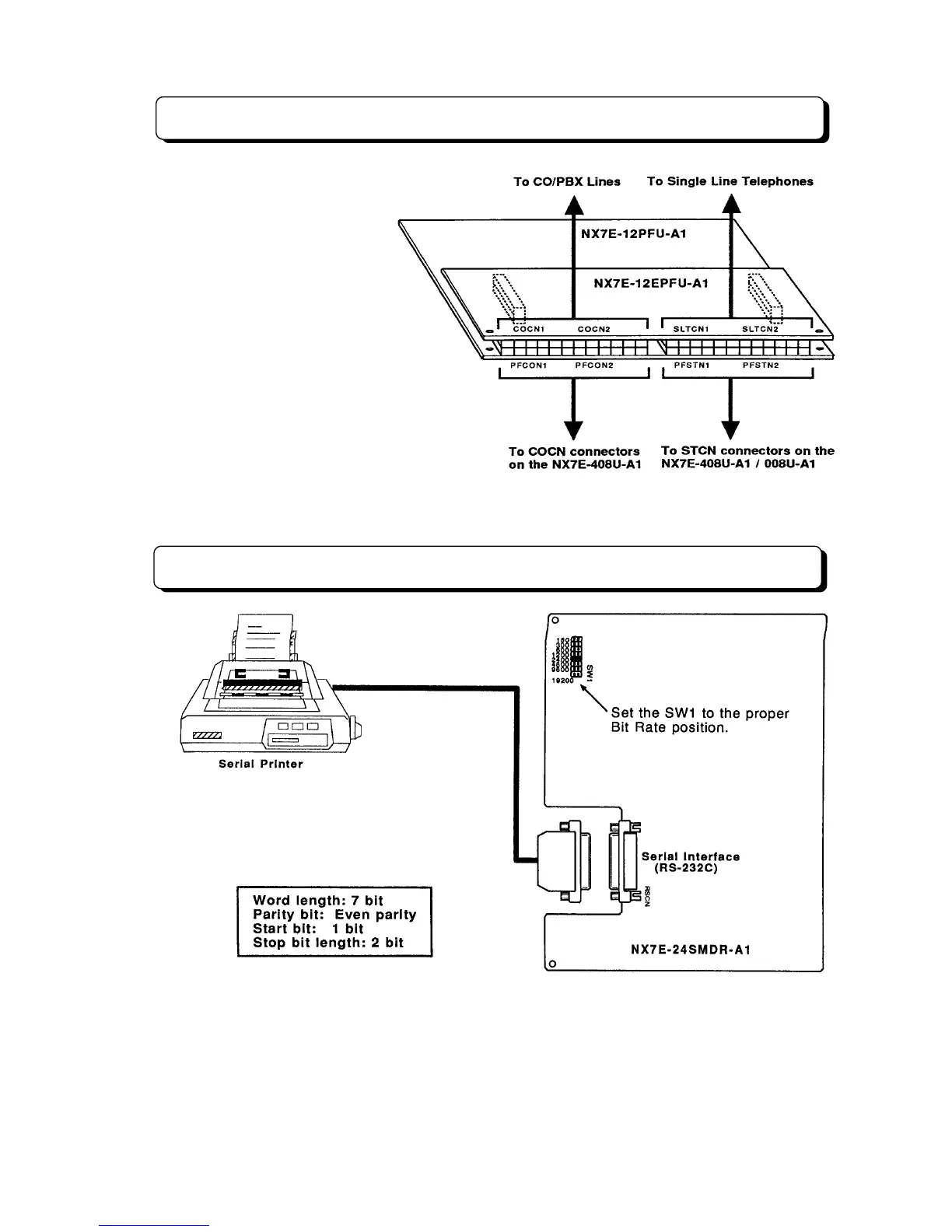

Installing NX7E-12PFU-A1 PCB
The NX7E-12PFU-A1 and
NX7E-12EPFU-A1 PCBs provide
12 power failure cut through
circuits for Single Line
Telephones. To install PCBs and
connect the wires, refer to the
illustration.
Installing NX7E-24SMDR-A1 PCB and Printer/PC
Make cables so that the printer /PC will be connected
to the NX7E-24SMDR-A1 as shown in the illustration.
Refer to RS-232C Cable Assembly in Installation of
TX-Z 308 System (P 3-1-7).
