¾
3-1-7
¾
Installation of 3SMDR and Printer/PC
RS-232C Cable Assembly

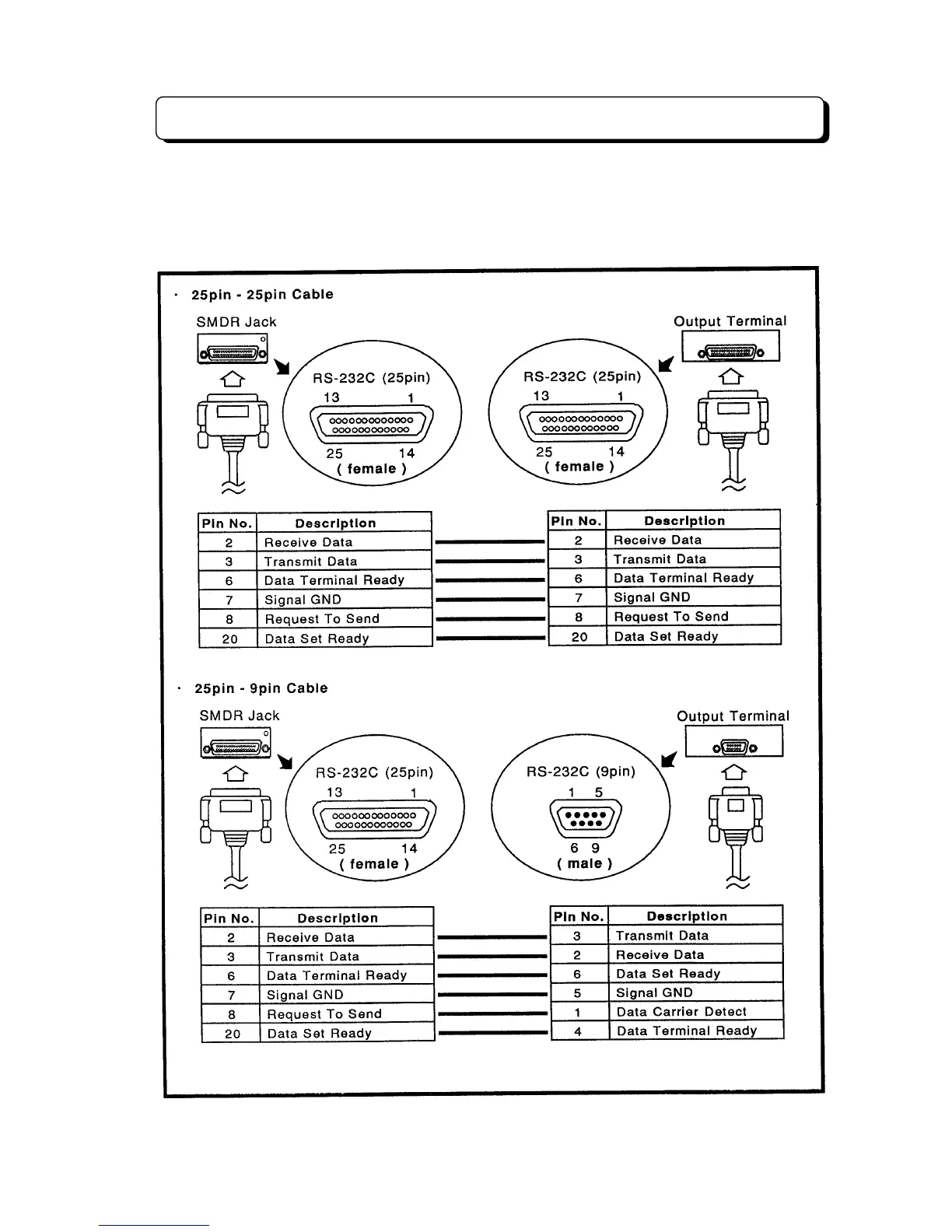

To connect SMDR and Printer/PC, RS-232C cable is needed. How to make cable, refer to the following
illustration.
Cable Length: Below the 15 m
