Installing the Main Equipment
The Main Equipment should be installed in a clean, dry, centrally-located spot (such as a closet), where it
is out of direct sunlight. The area should be free of moisture (water, dampness, etc.), and away from any
equipment which might vibrate. You should choose a location that is well-ventilated, where the
temperature does not exceed that of a normal room.

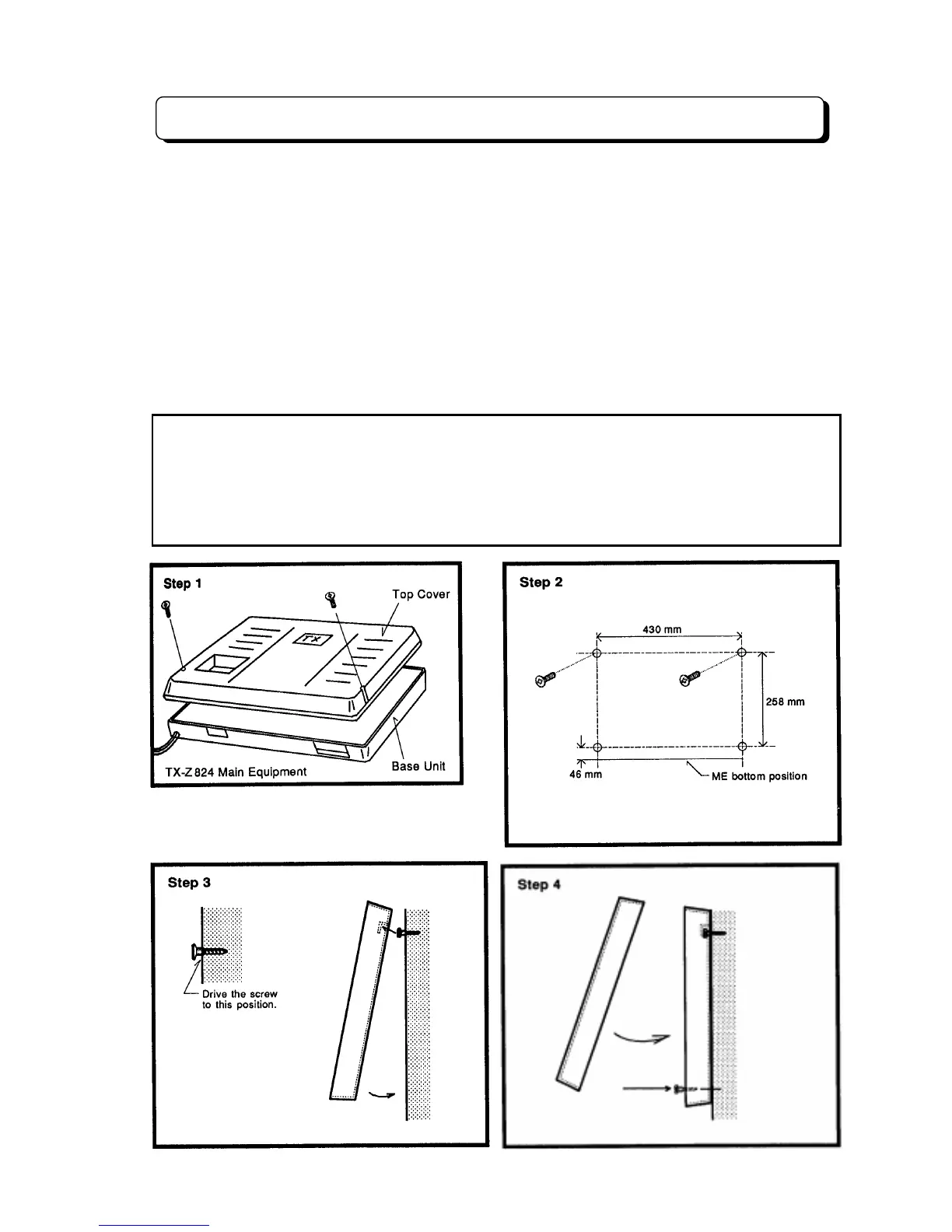

Step 1:
Before wall mounting the TX-Z
824 Main Equipment, the top cover of Main Equipment must be
removed. Loosen the two screws and remove the top cover as illustration.
Step 2:
Tack-fasten two of the four wood screws (provided with Main Equipment) on the wall at about
430 mm apart.
Step 3:
Place the two holes of the main unit over the tacked wood screws to hang the Main Equipment on
the wall and then fully tighten the wood screws.
Step 4:
Fasten another two screws on the wall through the two bottom holes of the Main Equipment.
PRECAUTIONARY SAFEGUARDS
1. Never install the Main Equipment where it may be exposed to water (near a bathtub, pool, sink, etc.).
2. Never mount the Main Equipment on an unstable surface, where it might fall.
3. Never block the vents on the Main Equipment. These vents prevent the unit from overheating.
Proper ventilation must be supplied for the unit.
4. Never place any objects inside the vents of the Main Equipment.
