Installing 24DHU-A1 PCB
The NX7E-24DHU-A1 PCB is a daughter board for the NX7E-24CPU-B1. The NX7E-24DHU-A1 PCB
provides:
- Connections for two alarm sensors
- Two Doorphone Box interfaces
- Two external paging outputs

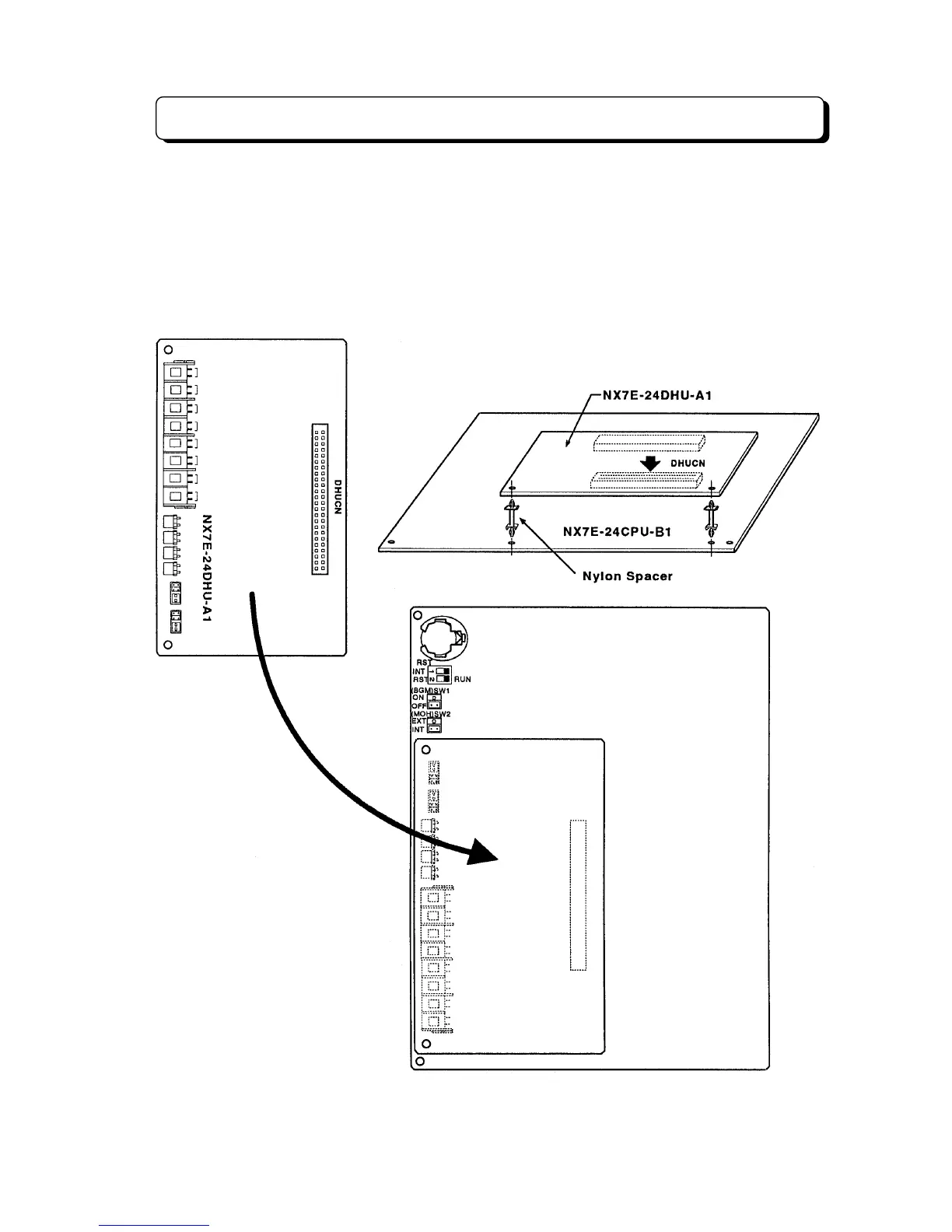

Mount the NX7E-24DHU-A1 PCB on the 24CPU-B1 and joint the DHUCN connector to another DHUCN
on the NX7E-24CPU-B1 unit.
