Installing External MOH and BGM
This section provides information on installing Background Music (BGM) and External Music On Hold in
the TX-Z
824 system.
Specifications:
Input Impedance: 600 ohms
Input Level: Nominal 250 mV (-10 dBm)
Maximum Input: 1 Vrms
Mount the 8DHEXU-A1 PCB on the base unit of the Main Equipment (see "Installing 8DHEXU-A1 PCB"
on page 3-2-7).

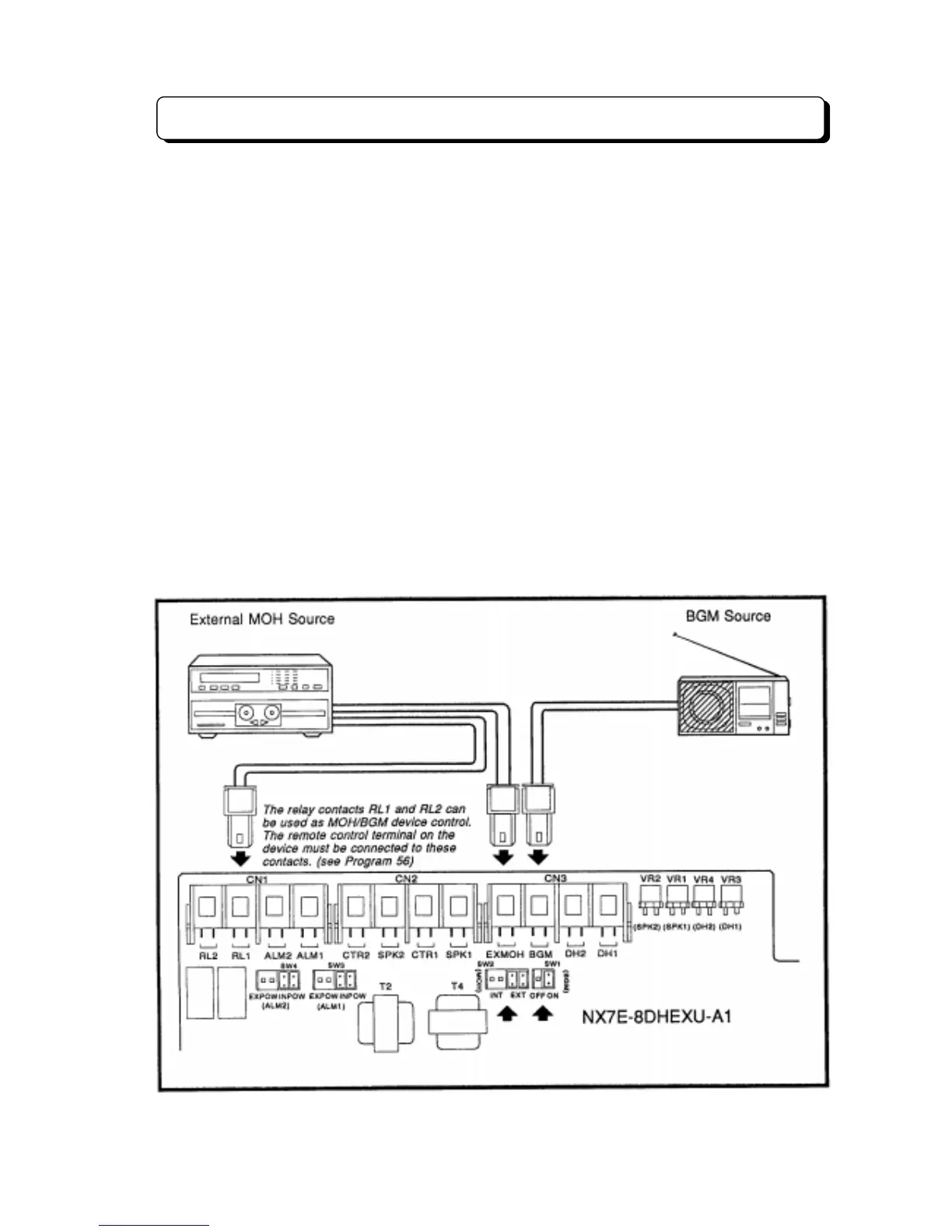

Installation of External Source of MOH (Music On Hold):
Step 1:
Connect inputs from external MOH source to the connector on the 8DHEXU-A1 PCB labeled
EXMOH.
Step 2:
Set SW2 strap to the EXT position. (If the External MOH is not required, set SW2 to the INT
position.)
Step 3:
Adjust the output level of External MOH Source.
Installation of BGM (Background Music) Source:
Step 1:
Connect inputs from external BGM source to the connector on the 8DHEXU-A1 PCB labeled
BGM.
Step 2:
Set SW1 strap to the ON position. (If the BGM is not required, set SW2 to the OFF position.)
Step 3:
Adjust the output level of External BGM Source.
