CS193/CS173/CS163 5-5
Troubleshooting
5
5.2 When the message "Misfeed detected." appears
If a misfeed occurs during printing, the message "Misfeed detected." appears and the location of the misfeed
is indicated in the screen. (misfeed location screen)
At this time, printing cannot continue until the misfeed is adequately cleared.
5.2.1 Location of paper misfeed
A flashing o indicates the location of the paper misfeed. In addition, a lit o indicates areas where paper may
have been misfed and that should be checked.

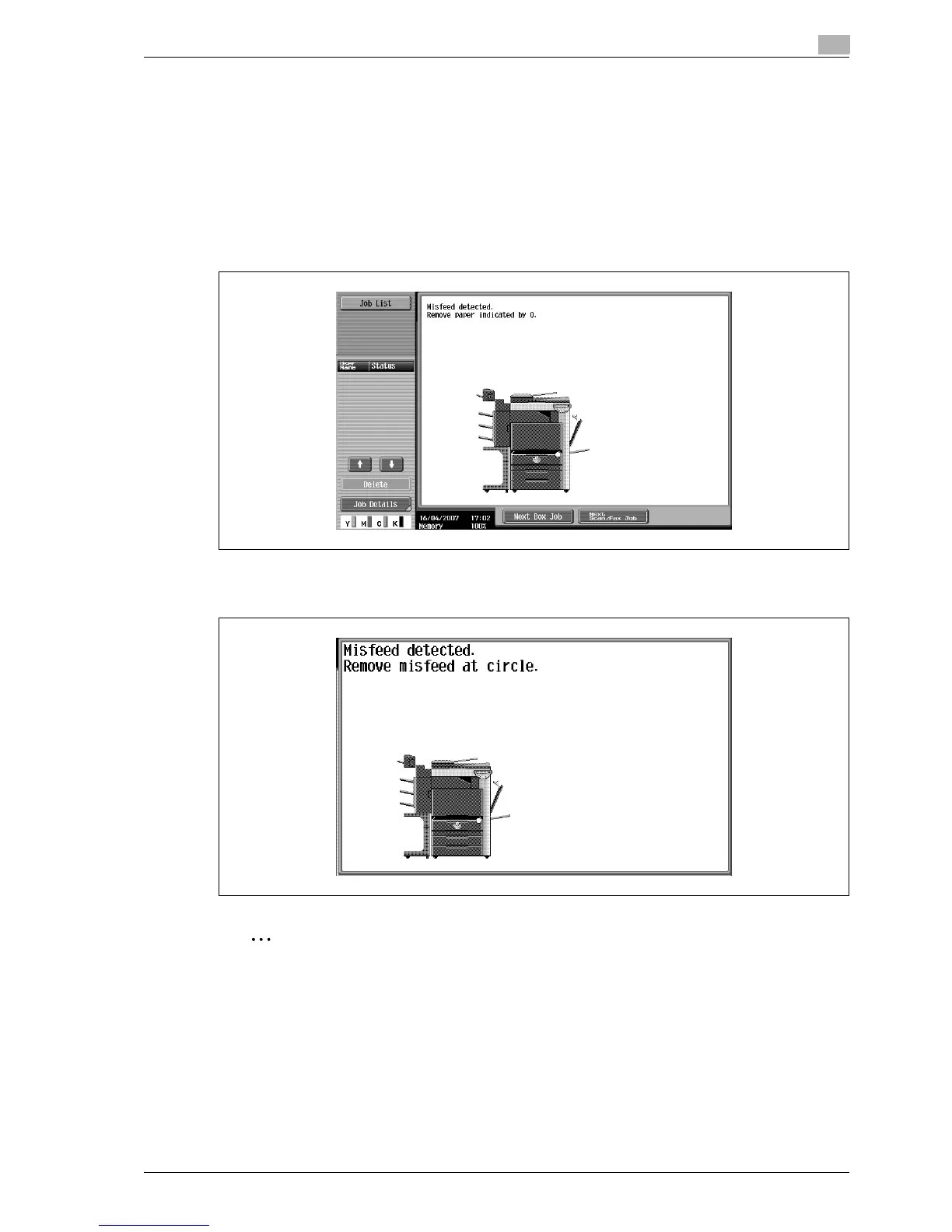

Example: Screen when a paper misfeed occurs in tray 1
Display in Enlarge Display mode
If a paper misfeed occurs, the screen shown below appears.
2
Note
The procedure for clearing misfed paper differs depending on where the misfeed occurs. Determine the
misfeed location by looking at the illustration displayed with the error message, and then clear the
misfeed according to the appropriate procedure.
To Next Page
