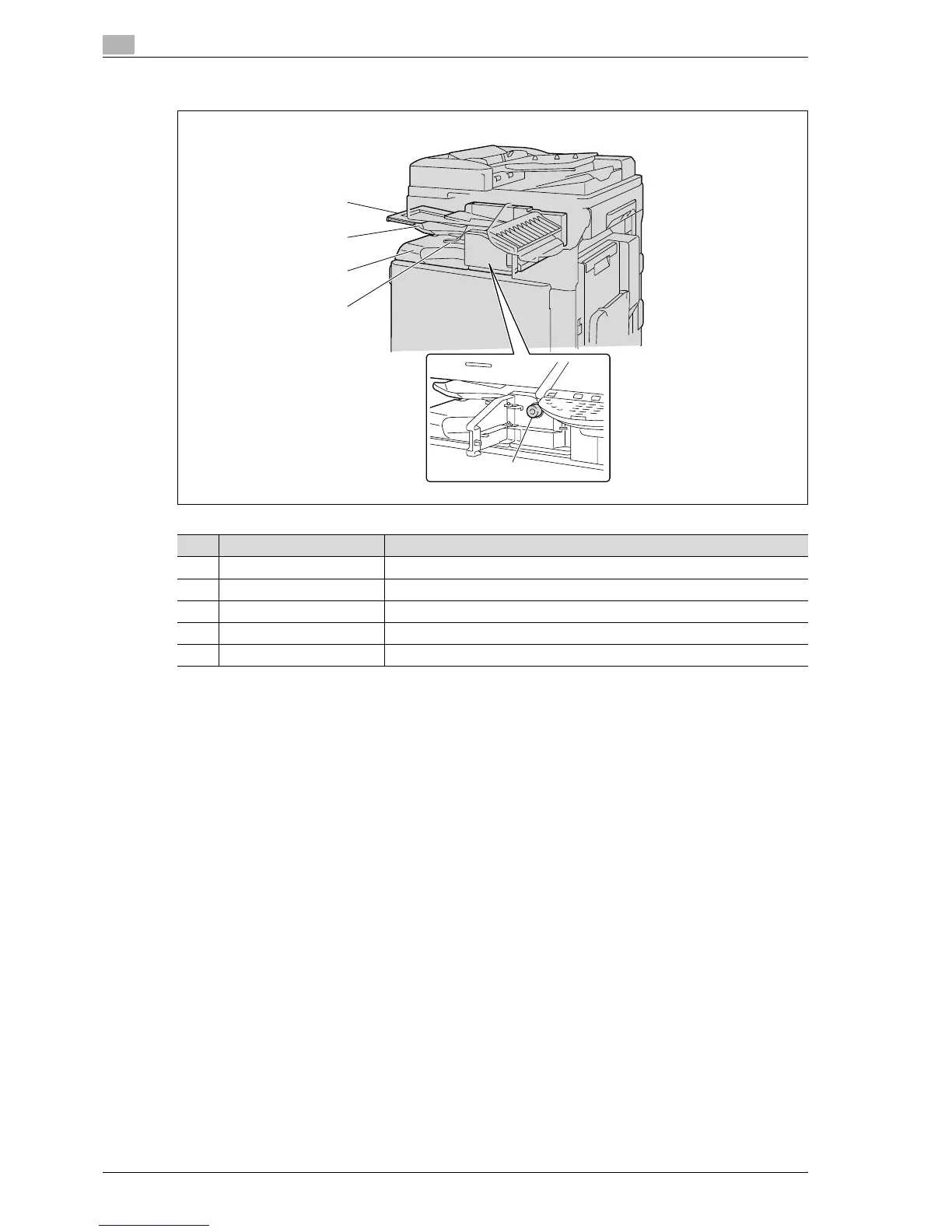

2.1.6 Job separator JS-505
1
2
3
4
5
No. Part name Description
1 Misfeed-clearing dial Turned when clearing paper misfeeds within the separator.
2 Assist lever Used when removing printed pages.
3 Output tray 1 Collects printed pages.
4 Output tray 2 Collects printed pages.
5 Tray extension Pulled out when feeding papers longer than A4 w size.
