2 Before making copies

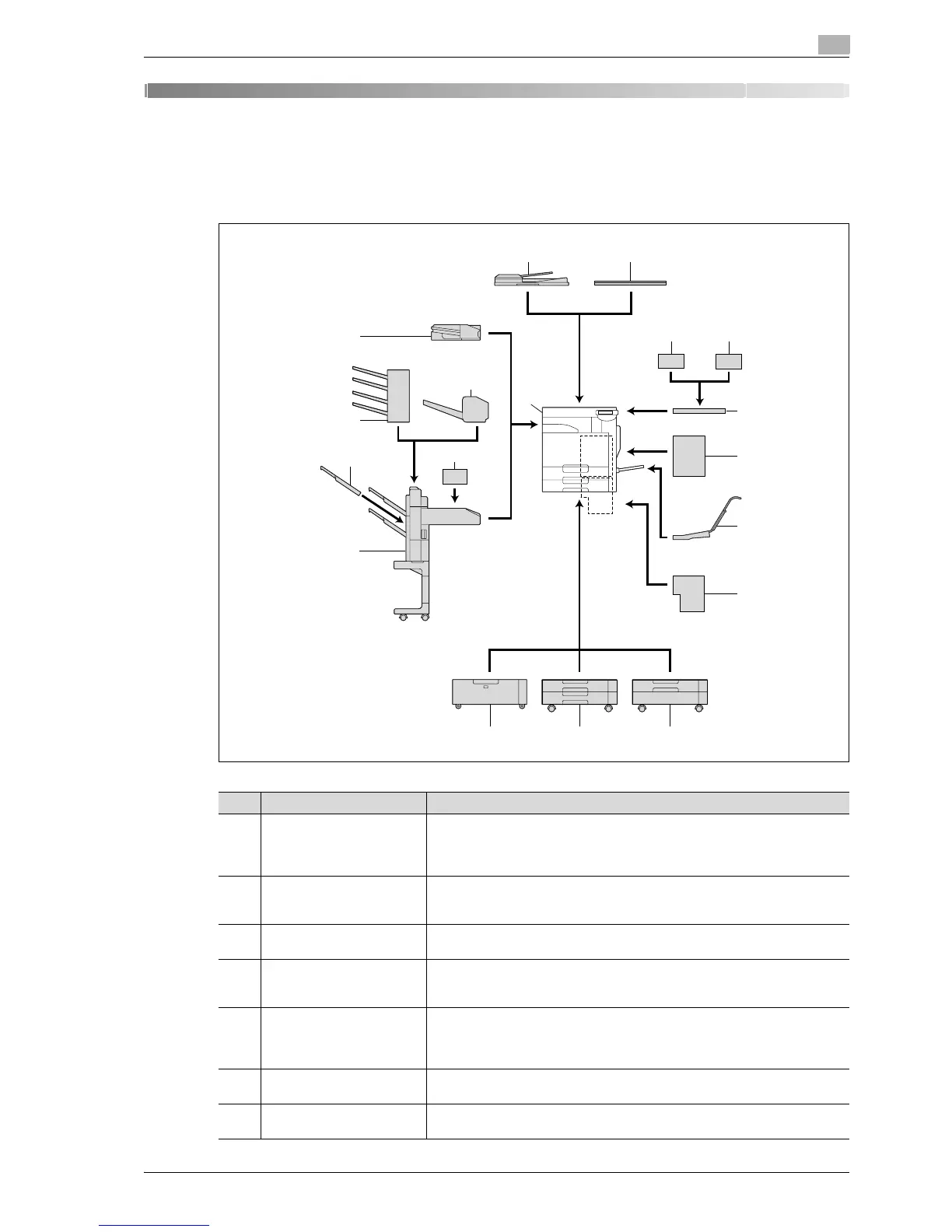

2.1 Part names and their functions
2.1.1 Options
1
23
45
6
7
8
9
101112
13
14
15
16
17
18
No. Part name Description
1 Main unit The original is scanned by the scanner section, and the scanned image is
printed by the printer section.
Referred to as the "machine", the "main unit", or the "CS193/CS173/CS163"
throughout the manual.
2 Automatic document feeder
DF-611
Automatically feeds one original sheet at a time for scanning, and automatical-
ly turns over double-sided originals for scanning
Referred to as the "ADF" throughout the manual.
3 Original cover OC-507 Presses down on the loaded original to keep it in place
Referred to as the "original cover" throughout the manual.
4 Authentication unit (biomet-
ric type) AU-101
Performs user authentication by scanning vein patterns in the finger.
For details, refer to the manual provided with the authentication unit (biometric
type).
5 Authentication unit (IC card
type) AU-201
Performs user authentication by reading the information registered on IC
cards.
For details, refer to the manual provided with the authentication unit (IC card
type).
6 Working table WT-502 Provides an area to temporarily place an original or other materials. This is also
used when the authentication unit is installed.
7 Mount kit MK-711 Used for installing the fax kit, local interface kit, scan accelerator kit, and fax
multi line.
