RL78/G15 CHAPTER 6 TIMER ARRAY UNIT

R01UH0959EJ0110 Rev.1.10 Page 240 of 765

Mar 7, 2023

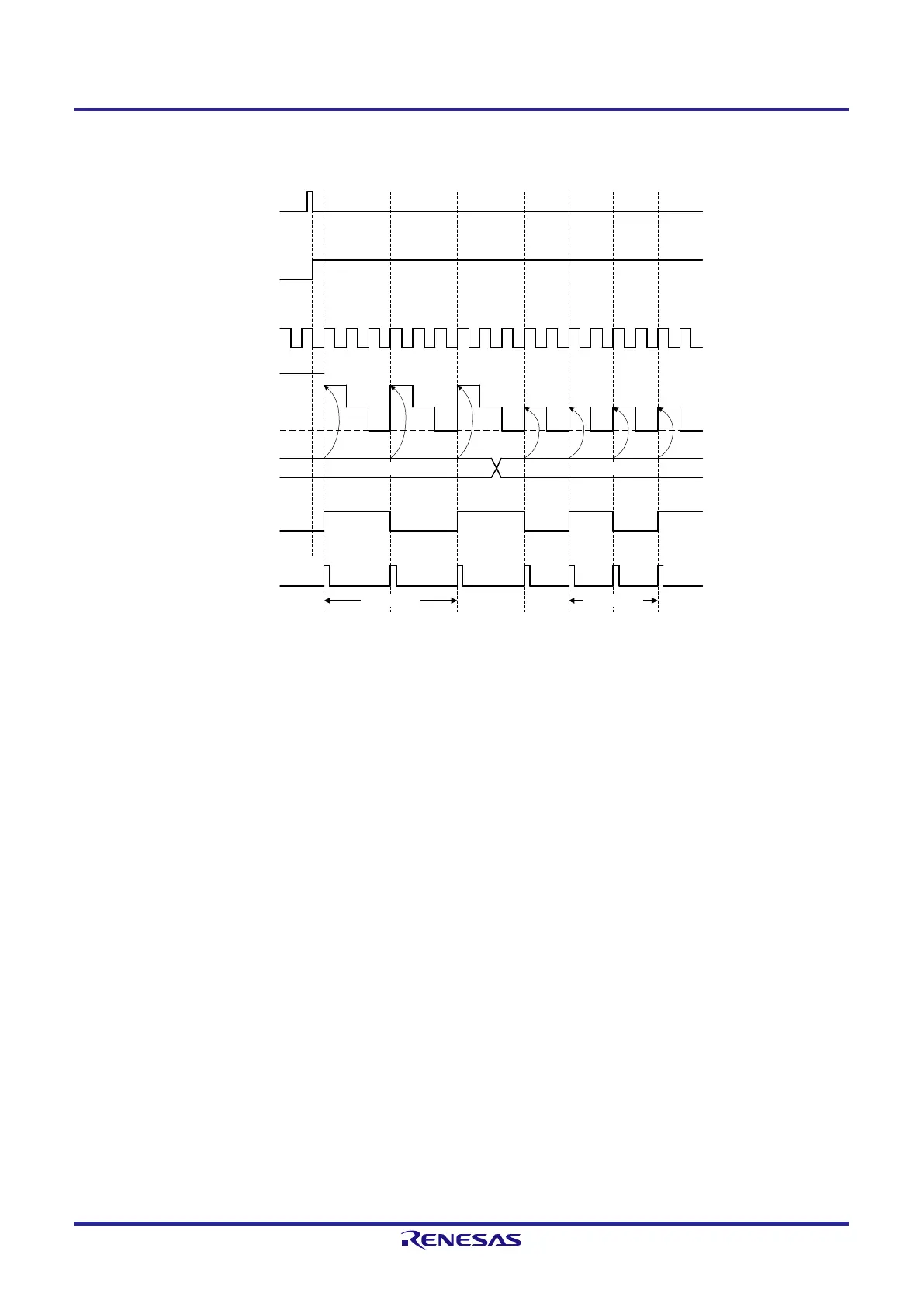

Figure 6-49. Example of Basic Timing of Operation as Frequency Divider (MD0n0 = 1)

TS0n

TE0n

TDR0n

TCR0n

INTTM0n

0000H

TI0n

2 2

1 1

0 0

1 1 1 1

0 0 0 0

Divided by 4

0002H 0001H

TO0n

Divided by 6

Remark 1. n: Channel number (n = 0, 3)

Remark 2. TS0n: Bit n of timer channel start register 0 (TS0)

TE0n: Bit n of timer channel enable status register 0 (TE0)

TI0n: TI0n pin input signal

TCR0n: Timer count register 0n (TCR0n)

TDR0n: Timer data register 0n (TDR0n)

TO0n: TO0n pin output signal
