RL78/G15 CHAPTER 6 TIMER ARRAY UNIT
R01UH0959EJ0110 Rev.1.10 Page 261 of 765
Mar 7, 2023

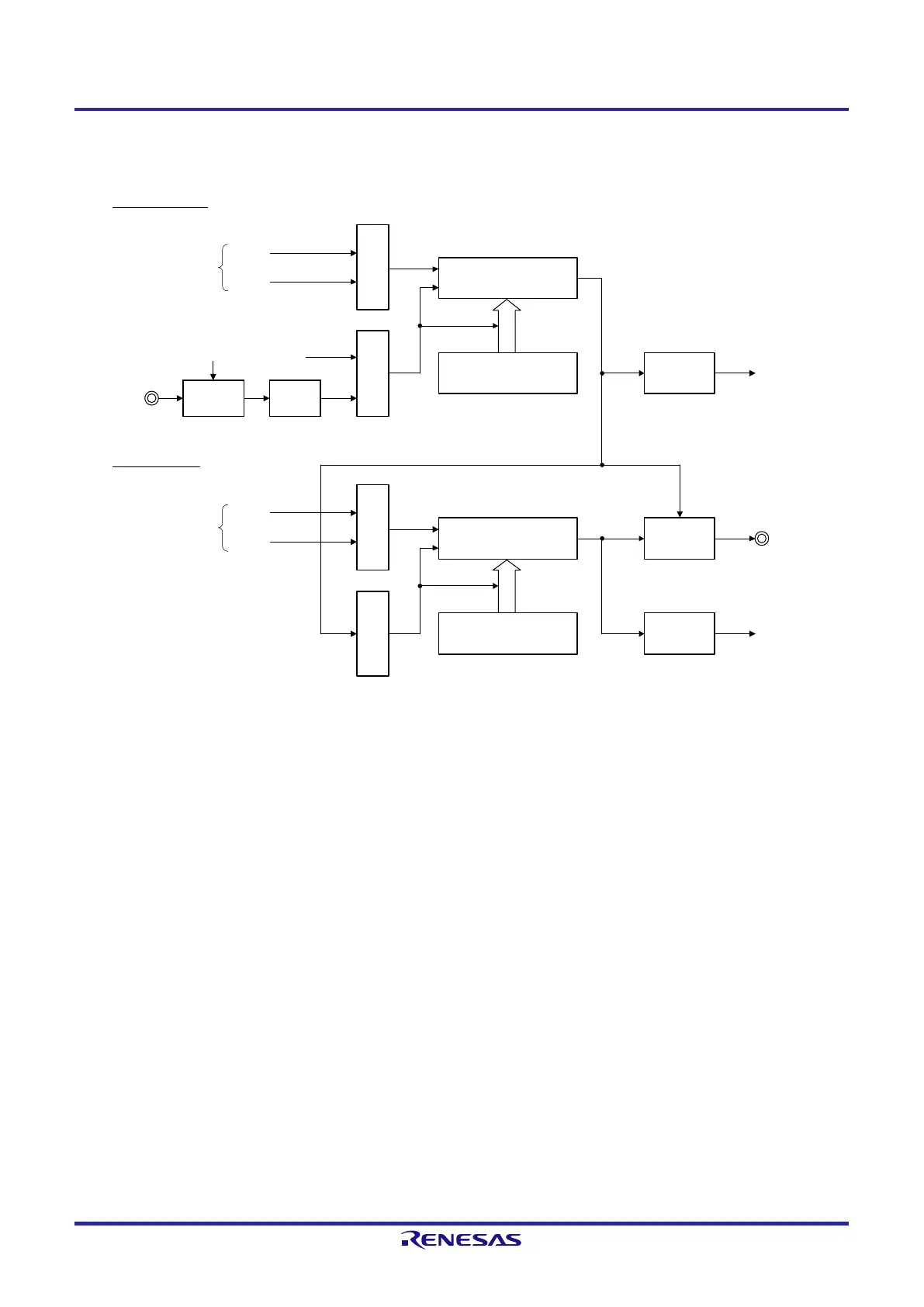

Figure 6-64. Block Diagram of Operation as One-Shot Pulse Output Function
Interrupt signal
(INTTMmn)
Timer data register mn
(TDRmn)
Timer counter register mn
(TCRmn)
Interrupt
controller
Master channel
(one
-count mode)
TSmn
TImn pin
Edge
detection
Noise filter
TNFENmn
Slave channel
(one-count mode)
TOmp pin
Interrupt signal
(INTTMmp)
Timer data register mp
(TDRmp)
Output
controller
Timer counter register mp
(TCRmp)
Interrupt
controller
CKm0
CKm1
Operation clock
CKm0
CKm1
Operation clock
Clock selection
Trigger
selection
Clock selection
Trigger
selection
Remark m: Unit number (m = 0), n: Master channel number (n = 0, 2, 4, 6)
p: Slave channel number (n < p ≤ 7)
