RL78/G15 CHAPTER 6 TIMER ARRAY UNIT

R01UH0959EJ0110 Rev.1.10 Page 262 of 765

Mar 7, 2023

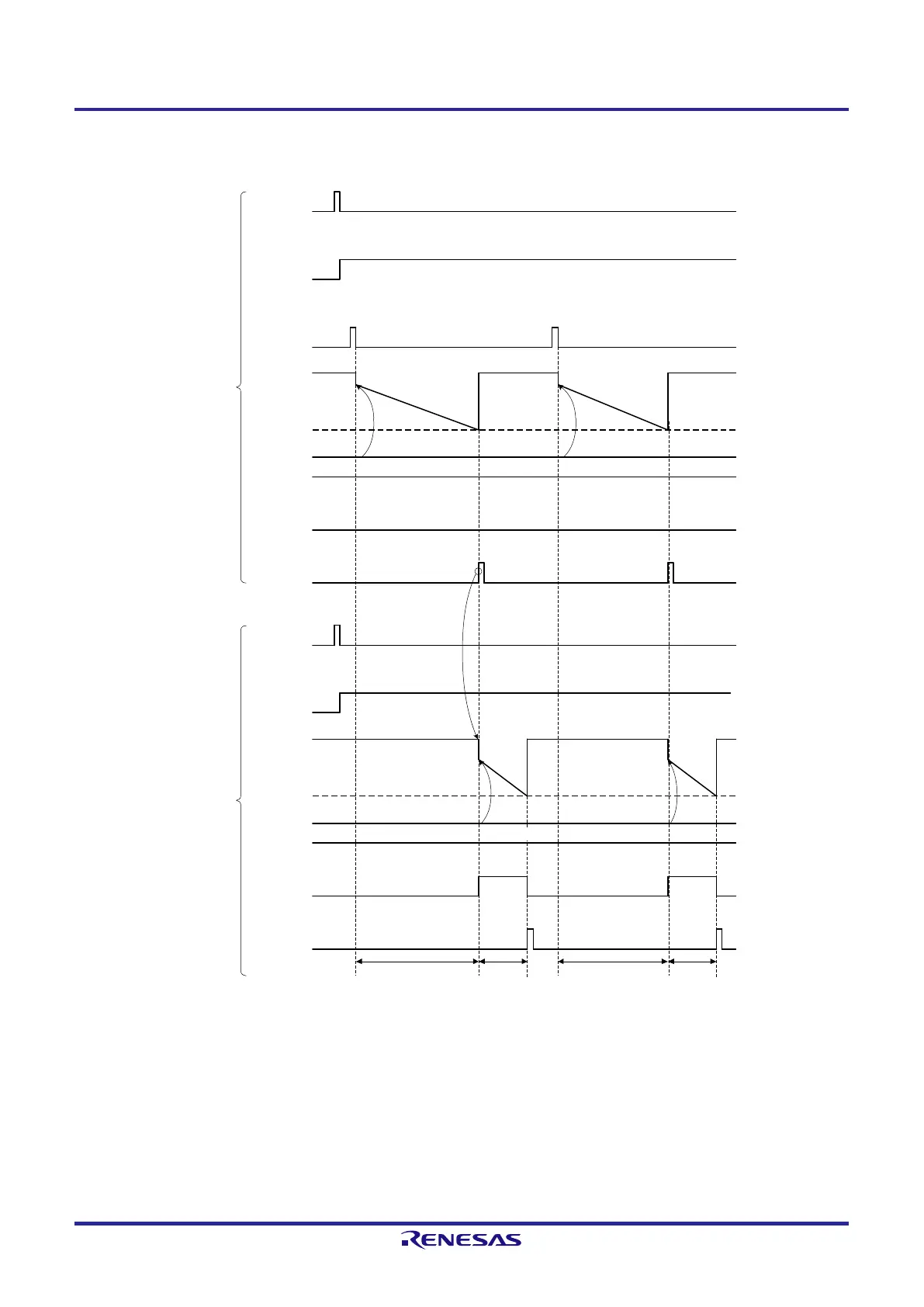

Figure 6-65. Example of Basic Timing of Operation as One-Shot Pulse Output Function

TSmn

TEmn

TDRmn

TCRmn

TOmn

TImn

0000H

FFFFH

INTTMmn

a + 2

TSmp

TEmp

TDRmp

TCRmp

TOmp

0000H

FFFFH

INTTMmp

Master

channel

Slave

channel

Remark 1. m: Unit number (m = 0), n: Master channel number (n = 0, 2, 4, 6)

p: Slave channel number (n < p ≤ 7)

Remark 2. TSmn, TSmp: Bit n, p of timer channel start register m (TSm)

TEmn, TEmp: Bit n, p of timer channel enable status register m (TEm)

TImn, TImp: TImn and TImp pins input signal

TCRmn, TCRmp: Timer count registers mn, mp (TCRmn, TCRmp)

TDRmn, TDRmp: Timer data registers mn, mp (TDRmn, TDRmp)

TOmn, TOmp: TOmn and TOmp pins output signal
