RL78/G15 CHAPTER 6 TIMER ARRAY UNIT

R01UH0959EJ0110 Rev.1.10 Page 292 of 765

Mar 7, 2023

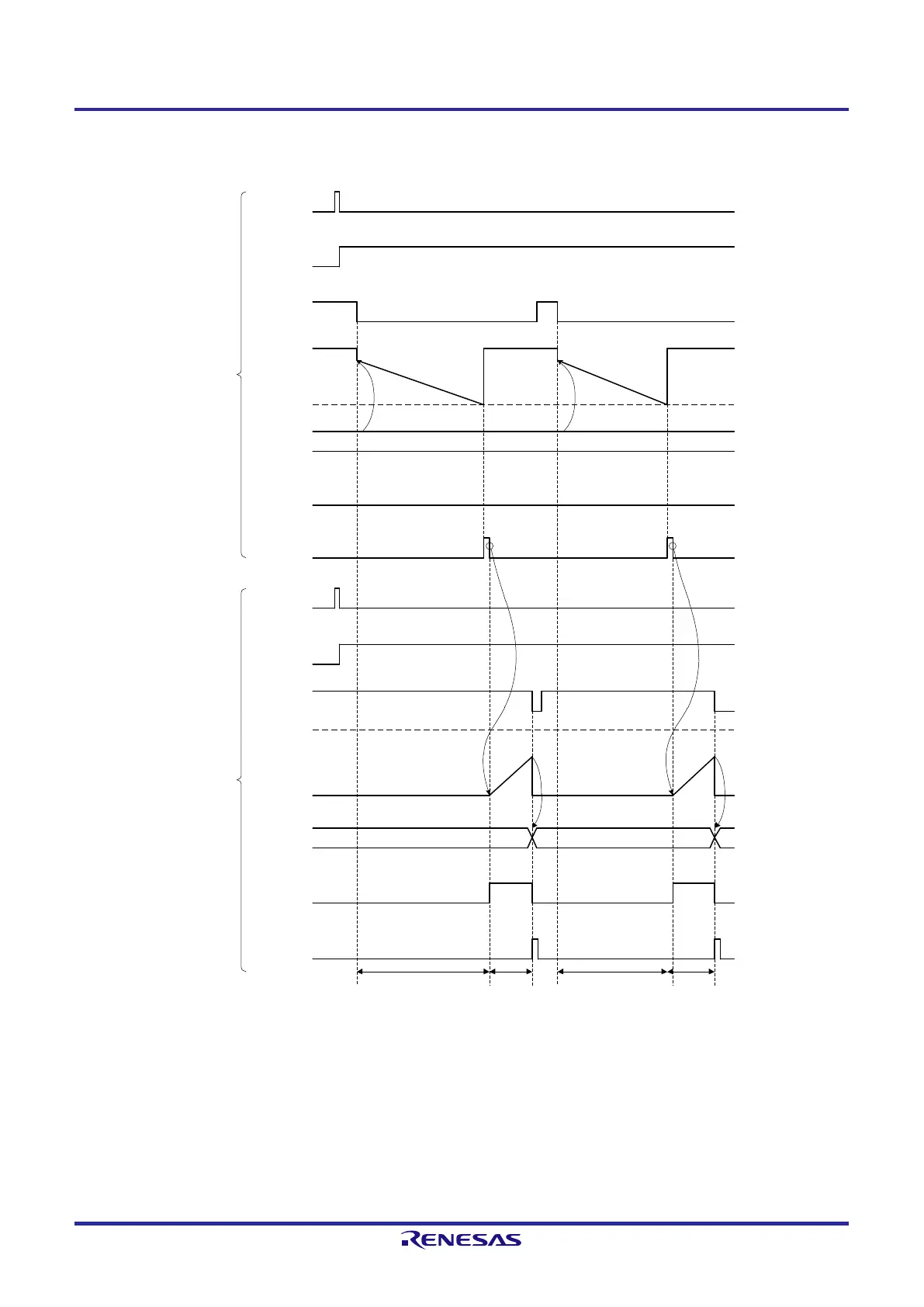

Figure 6-80. Example of Basic Timing of Operation for Two-channel Input with One-shot Pulse Output Function

TS0n

TE0n

TDR0n

TCR0n

TO0n

TI0n

0000H

FFFFH

INTTM0n

a + 2

TS0p

TE0p

TCR0p

TO0p

0000H

FFFFH

INTTM0p

b + 1 b + 1

Master

channel

Slave

channel

0000H

TDR0p

TI0p

Remark 1. n: Master channel number (n = 0, 2)

p: Slave channel number (p = 3)

Remark 2. TS0n, TS0p: Bit n, p of timer channel start register 0 (TS0)

TE0n, TE0p: Bit n, p of timer channel enable status register 0 (TE0)

TI0n, TI0p: TI0n and TI0p pins input signal

TCR0n, TCR0p: Timer count registers 0n, 0p (TCR0n, TCR0p)

TDR0n, TDR0p: Timer data registers 0n, 0p (TDR0n, TDR0p)

TO0n, TO0p: TO0n and TO0p pins output signal
