RL78/G15 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0959EJ0110 Rev.1.10 Page 583 of 765

Mar 7, 2023

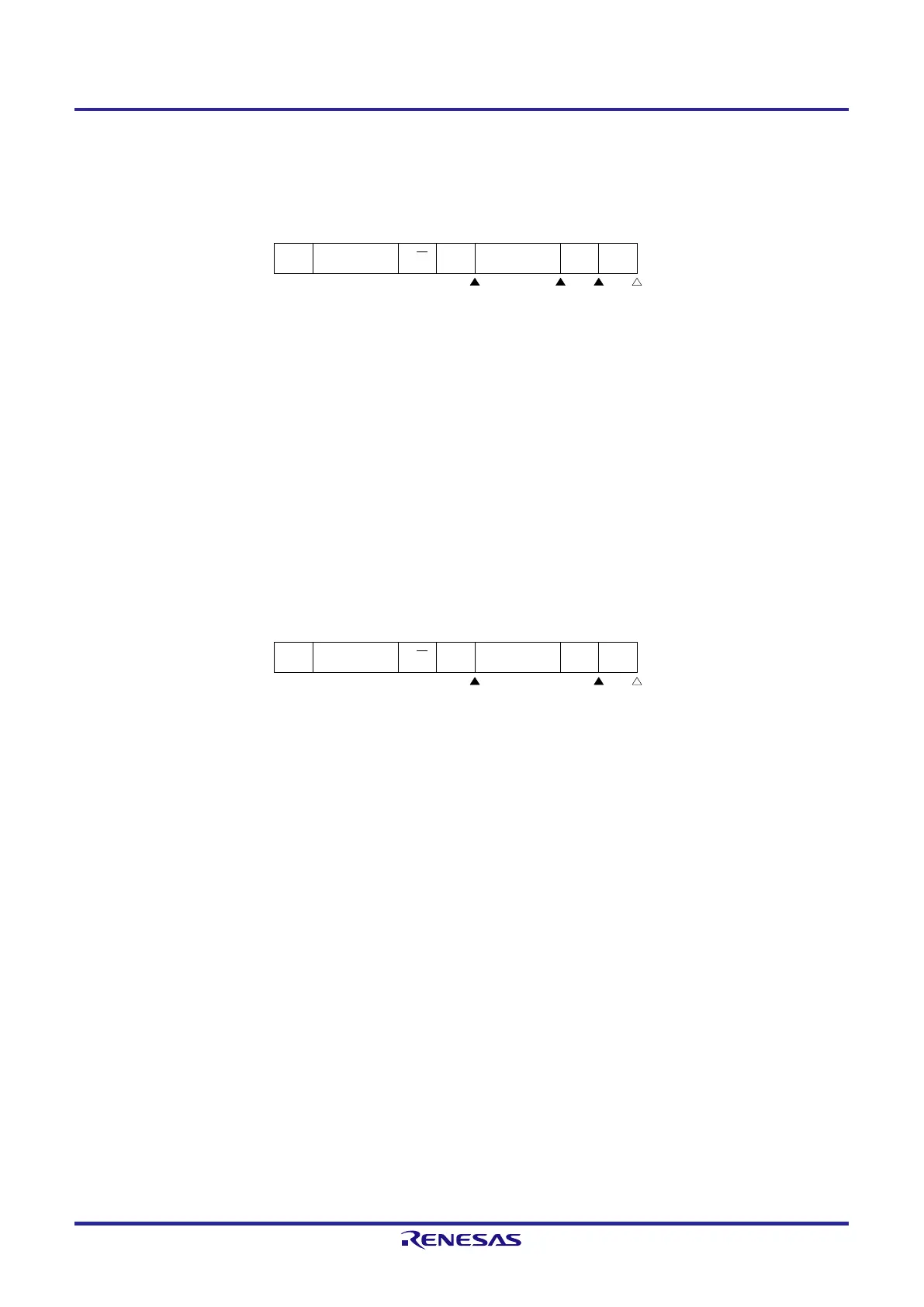

(g) When lost in arbitration at the stop condition when attempting to generate a restart condition

(i) When WTIM0 = 0

STT0 = 1

↓

3 4

AD6-AD0

R/W D7-D0

SPACKACK

1: IICS0 = 1000×110B

2: IICS0 = 1000×000B (Sets the WTIM0 bit to 1)

3: IICS0 = 1000××00B (Sets the STT0 bit to 1)

4: IICS0 = 01000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1

STT0 = 1

↓

ST AD6-AD0

R/W

D7-D0

ACK

1: IICS0 = 1000×110B

2: IICS0 = 1000××00B (Sets the STT0 bit to 1)

3: IICS0 = 01000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care
