RL78/G15 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0959EJ0110 Rev.1.10 Page 584 of 765

Mar 7, 2023

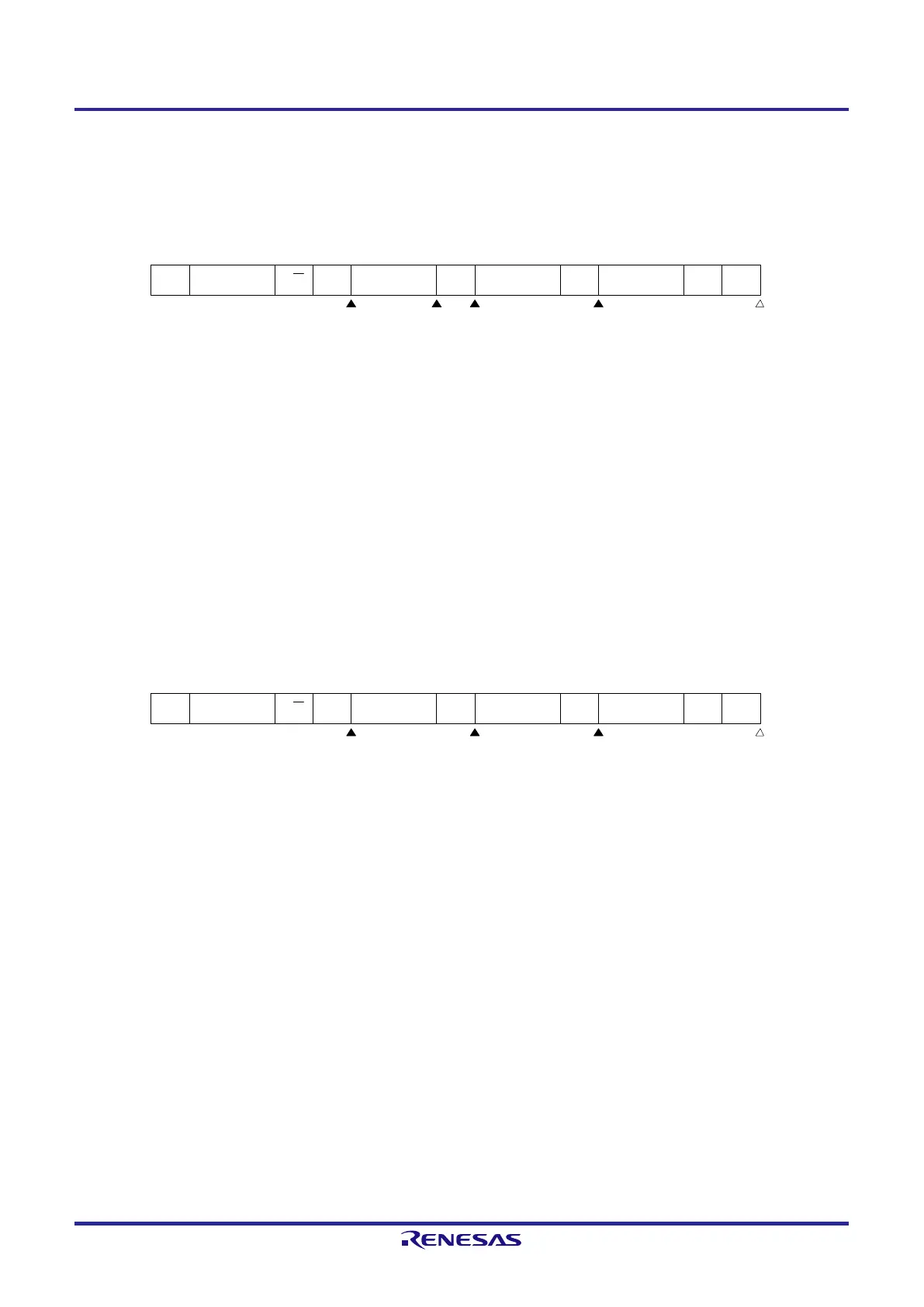

(h) When lost in arbitration due to the data being at the low level when attempting to generate a stop

condition

(i) When WTIM0 = 0

SPT0 = 1

↓

AD6-AD0

R/W

D7-D0

ACK

1: IICS0 = 1000×110B

2: IICS0 = 1000×000B (Sets the WTIM0 bit to 1)

3: IICS0 = 1000×100B (Clears the WTIM0 bit to 0)

4: IICS0 = 01000100B

5: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1

SPT

0 = 1

↓

6-AD0

R/W

7-D

-D0 D

7-D

SPACK

ACK

ACK ACK

1: IICS0 = 1000×110B

2: IICS0 = 1000×100B (Sets the SPT0 bit to 1)

3: IICS0 = 01000100B

4: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care
